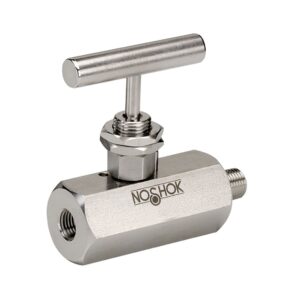

Noshok 408-MFS-EM1 1 NPT, Male x Female, 316 SS, EPDM O-Ring, Hard Seat Needle Valve

Part Number: 408-MFS-EM1

$380.00

4 in stock (can be backordered)

Warranty: 3 YR

Noshok 408-MFS-EM1 1 NPT, Male x Female, 316 SS, EPDM O-Ring, Hard Seat Needle Valve

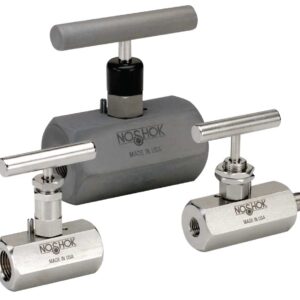

400 Series Standard, Hard Seat Needle Valves

Application Brochures
Oil & Gas

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

ORDERING INFORMATION

SERIES 4 400 Series, hard seat
CONNECTION SIZES 02 1/4″ NPT 06 3/4″ NPT 12 1-1/2″ NPT
03 3/8″ NPT 08 1″ NPT 42 7/16″-20 UNF (#4 SAE, J1926)
04 1/2″ NPT 10 1-1/4″ NPT
VALVE TYPES MFC Male-Female, Steel MFS Male-Female, Stainless Steel
FFC Female-Female, Steel FFS Female-Female, Stainless Steel
MFAC Male-Female Angle, Steel MFAS Male-Female Angle, Stainless Steel
FFAC Female-Female Angle, Steel FFAS Female-Female Angle, Stainless Steel



ORDERING INFORMATION – Additional Options

PACKINGS P1 PTFE P2 Graphite
STEM TIPS T1 Non-rotating (316 stainless) T6 Ball (carbide) T8 Ball (Monel)
  T5 Ball (440C stainless) T7 Ball (ceramic) T9 Non-rotating regulating (316 Stainless)
O-RINGS* EM1 EPDM KZ1 FFKM (Perfluoroelastomer) NB1 NBR
PANEL MOUNTINGS PM1 Panel mount (1 nut) PM2 Panel mount (2 nuts)
HANDLES HL4 1-3/8″ Phenolic HL5 1-3/4″ Phenolic HL9 2-3/8″ Phenolic**

† For 1/4″, 3/8″ and 1/2″ NPT only. If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the “Pressure vs Temperature: Packing Style with Compatible Fluid” chart.
* Other o-ring materials available on request.
** For 3/4″ NPT to 1-1/2″ NPT only.

The standard o-ring in all the NOSHOK valves is FKM and the standard handles are “T” handles (HL2).

The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 404-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.
