Noshok Mechanical Compact SPST Pressure Switches-100 series

Part Number: 100 Series Compact Switch

$43.50

120 in stock

Warranty: 3 YR

100 Series Mechanical Compact SPST Pressure Switches

MIn of 5 on the 1/4 inch

Download Literature
 Water/
Wastewater
SERIES 100V 100 Vacuum Series 100H 100 High Pressure Series
100L 100 Low Pressure Series
SWITCH FUNCTION 1 SPST, Normally open 2 SPST, Normally closed
PROCESS CONNECTION 1 1/8″ NPT male 31 9/16-18 SAE Male, Non-Adjustable
2 1/4″ NPT male 33 G 1/8B
10 G 1/4B 45 7/16-20 SAE Male, Non-Adjustable
100V VACUUM PRESSURE SWITCH
ADJUSTMENT RANGES
(Max. working pressure)
3/25-vac -3 inHg to -25 inHg (350 psig)
100L LOW PRESSURE SWITCH
ADJUSTMENT RANGES
(Max. working pressure)
2/20 2 psig to 20 psig (350 psig) 50/150 50 psig to 150 psig (350 psig)
15/100 15 psig to 100 psig (350 psig)
100H HIGH PRESSURE SWITCH
ADJUSTMENT RANGES
(Max. working pressure)
2/30 2 psig to 30 psig (9,000 psig) 300/2500 300 psig to 2,500 psig (9,000 psig)
15/200 15 psig to 200 psig (9,000 psig) 500/3500  500 psig to 3,500 psig (9,000 psig)
125/600 125 psig to 600 psig (9,000 psig) 3000/6000   3,000 psig to 6,000 psig (9,000 psig)
ELECTRICAL CONNECTIONS 4 Spade Terminals (1/4 x 1/32) 97 Weatherpack Tower, 2-Pin Male*
66 Deutsch Integral 2-Pin (DT04-2P) 98 Weatherpack Shroud, 2-Pin Female*
77 18″ Flying Leads 99 Weatherpack Shroud, 2-Pin Male*
78 6-32 Terminal Screws 100 Deutsch 2-Pin Male (DT04-2P)*
96 erpack Tower, 2-Pin Female* 103 Deutsch 2-Pin Female Socket (DT06-2S)*
OPTIONS** AU Gold Plated Contacts VT FKM Diaphragm (0/250 °F)
EP EPDM Diaphragm (-10/250 °F) SS 316 SS Wetted Materials
HNBR Low Temp Nitrile (-40/110 °F)

* Options attached to Flying Leads
** Not all options are available for all ranges, consult factory
† Other electrical connections available, consult factory



Description

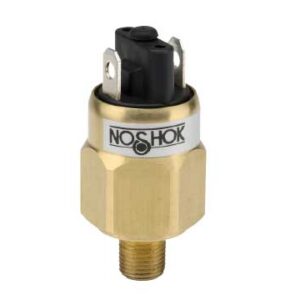

100 Series Mechanical Compact SPST Pressure Switches

MIn of 5 on the 1/4 inch

Download Literature
 Water/
Wastewater
SERIES 100V 100 Vacuum Series 100H 100 High Pressure Series
100L 100 Low Pressure Series
SWITCH FUNCTION 1 SPST, Normally open 2 SPST, Normally closed
PROCESS CONNECTION 1 1/8″ NPT male 31 9/16-18 SAE Male, Non-Adjustable
2 1/4″ NPT male 33 G 1/8B
10 G 1/4B 45 7/16-20 SAE Male, Non-Adjustable
100V VACUUM PRESSURE SWITCH
ADJUSTMENT RANGES
(Max. working pressure)
3/25-vac -3 inHg to -25 inHg (350 psig)
100L LOW PRESSURE SWITCH
ADJUSTMENT RANGES
(Max. working pressure)
2/20 2 psig to 20 psig (350 psig) 50/150 50 psig to 150 psig (350 psig)
15/100 15 psig to 100 psig (350 psig)
100H HIGH PRESSURE SWITCH
ADJUSTMENT RANGES
(Max. working pressure)
2/30 2 psig to 30 psig (9,000 psig) 300/2500 300 psig to 2,500 psig (9,000 psig)
15/200 15 psig to 200 psig (9,000 psig) 500/3500  500 psig to 3,500 psig (9,000 psig)
125/600 125 psig to 600 psig (9,000 psig) 3000/6000   3,000 psig to 6,000 psig (9,000 psig)
ELECTRICAL CONNECTIONS 4 Spade Terminals (1/4 x 1/32) 97 Weatherpack Tower, 2-Pin Male*
66 Deutsch Integral 2-Pin (DT04-2P) 98 Weatherpack Shroud, 2-Pin Female*
77 18″ Flying Leads 99 Weatherpack Shroud, 2-Pin Male*
78 6-32 Terminal Screws 100 Deutsch 2-Pin Male (DT04-2P)*
96 erpack Tower, 2-Pin Female* 103 Deutsch 2-Pin Female Socket (DT06-2S)*
OPTIONS** AU Gold Plated Contacts VT FKM Diaphragm (0/250 °F)
EP EPDM Diaphragm (-10/250 °F) SS 316 SS Wetted Materials
HNBR Low Temp Nitrile (-40/110 °F)

* Options attached to Flying Leads
** Not all options are available for all ranges, consult factory
† Other electrical connections available, consult factory
