-35%

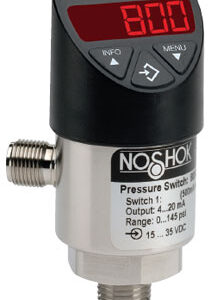

NOSHOK 800-1-2-100-2 Electronic Indicating Pressure Transmitter/Switch
NOSHOK List price: $631.27 Original price was: $631.27.$499.50Current price is: $499.50.
Noshok 615-6000-1-1-2-1 Pressure Transmitter, 0 psig to 6000 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 1/4 NPT Male, Hirschmann w/ 36 in Cable Attached
NOSHOK List price: $642.30 Original price was: $642.30.$513.60Current price is: $513.60.
NOSHOK 5040-MFS Flange-Female, Stainless Steel (MSS SP-99 spacing)5-Valve Power Pattern & Natural Gas Manifold Valve
Part Number:
5040-MFS
Date modified: Aug 22, 2023
Online Prices
NOSHOK List price: $673.38 Original price was: $673.38.$440.00Current price is: $440.00.

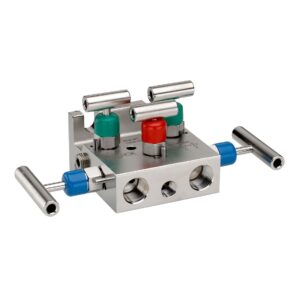

NOSHOK 5040-MFS Flange-Female, Stainless Steel (MSS SP-99 spacing)5-Valve Power Pattern & Natural Gas Manifold Valve
5 Valve Compact Manifold, Power Pattern, MSS SP-99 Spacing
Compact style, differential pressure–5040
- Compact style, power pattern is designed for use with differential pressure transmitters incorporating two isolation valves, one equalizing valve and two vent valves in power pattern applications
- Compact style, natural gas flow is designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve in natural gas applications
- 100% helium leak tested to 1 x 10-4 ml/s for performance and reliability
- Blow-out proof stem provides a secondary stem seal in the full open position
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
- All stem threads are rolled for strength and ease of operation
- One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
- Slotted spring pin to prevent accidental loosening
- Labeled and color coded vinyl dust caps for bonnets and stems
ORDERING INFORMATION
SERIES | 5 | 5-valve | ||||||
SEAT | 0 | Hard seat | ||||||
PROCESS TYPE | 4 | Compact style, differential pressure | 9 | Compact style, natural gas flow | ||||
CONNECTION | 0 | 1/2″ NPT standard | ||||||
VALVE TYPES | MFS | Flange-Female, Stainless Steel (MSS SP-99 spacing) | MFS-CP | Flange-Female, Stainless Steel (CoplanarTM spacing) |
ORDERING INFORMATION – ADDITIONAL OPTIONS
PACKINGS | P1 | PTFE | P2 | Graphite | ||
STEAM TIPS | T1 | Non-rotating (316 Stainless) | T6 | Ball (carbide) | T8 | Ball (Monel) |
T5 | Ball (440C Stainless) | T7 | Ball (ceramic) | T9 | Non-rotating regulating (316 Stainless) | |
O-RINGS* | EMI | EPDM | KZ1 | FFKM (Kalrek® 3018 or equivalent) | NB1 | NBR |
* Other o-ring materials available on request.
Options & Accessories
Description
NOSHOK 5040-MFS Flange-Female, Stainless Steel (MSS SP-99 spacing)5-Valve Power Pattern & Natural Gas Manifold Valve
5 Valve Compact Manifold, Power Pattern, MSS SP-99 Spacing
Compact style, differential pressure–5040
- Compact style, power pattern is designed for use with differential pressure transmitters incorporating two isolation valves, one equalizing valve and two vent valves in power pattern applications
- Compact style, natural gas flow is designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve in natural gas applications
- 100% helium leak tested to 1 x 10-4 ml/s for performance and reliability
- Blow-out proof stem provides a secondary stem seal in the full open position
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
- All stem threads are rolled for strength and ease of operation
- One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
- Slotted spring pin to prevent accidental loosening
- Labeled and color coded vinyl dust caps for bonnets and stems
ORDERING INFORMATION
SERIES | 5 | 5-valve | ||||||
SEAT | 0 | Hard seat | ||||||
PROCESS TYPE | 4 | Compact style, differential pressure | 9 | Compact style, natural gas flow | ||||
CONNECTION | 0 | 1/2″ NPT standard | ||||||
VALVE TYPES | MFS | Flange-Female, Stainless Steel (MSS SP-99 spacing) | MFS-CP | Flange-Female, Stainless Steel (CoplanarTM spacing) |
ORDERING INFORMATION – ADDITIONAL OPTIONS
PACKINGS | P1 | PTFE | P2 | Graphite | ||
STEAM TIPS | T1 | Non-rotating (316 Stainless) | T6 | Ball (carbide) | T8 | Ball (Monel) |
T5 | Ball (440C Stainless) | T7 | Ball (ceramic) | T9 | Non-rotating regulating (316 Stainless) | |
O-RINGS* | EMI | EPDM | KZ1 | FFKM (Kalrek® 3018 or equivalent) | NB1 | NBR |
* Other o-ring materials available on request.
