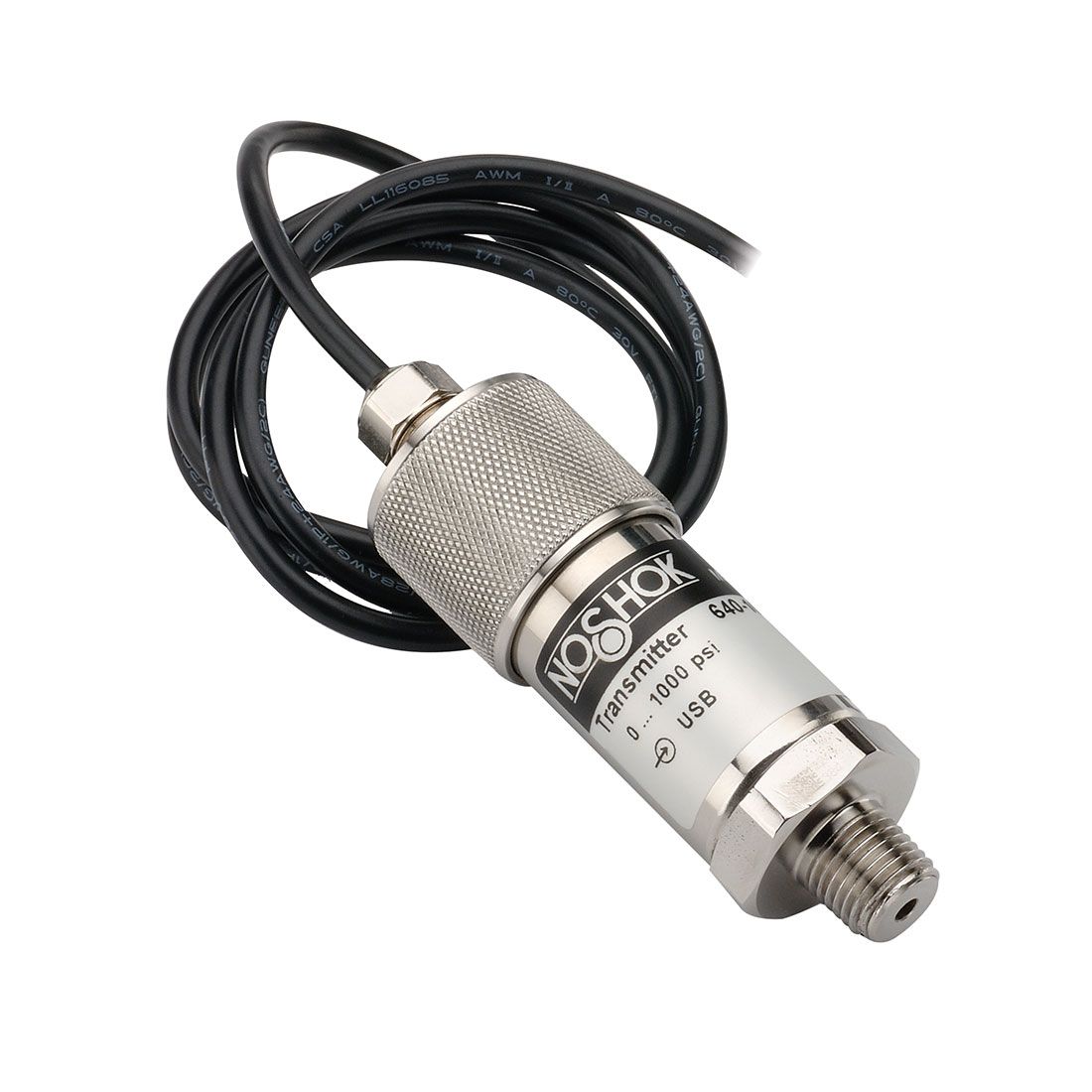

Noshok 640 Series Precision Heavy Duty Pressure Transducers

Part Number: 640 Series Heavy Duty Pressure Transducers

Date modified: Feb 13, 2024

Online Prices

NOSHOK List price: Original price was: $2,328.50.Current price is: $1,750.00.

Available on backorder

NOT A STOCK ITEM,,7 WEEKS LEAD TIME
Warranty: 3 YR
NEED TO PURCHASE IN BULK ?
Add to wishlist
Compare

NOSHOK 640 Series Precision Heavy Duty Pressure Transducers

3 Year Warranty

  • Vacuum ranges through 0 psig to 15,000 psig;
  • absolute ranges from0 psia to 15 psia through 0 psia to 300 psia
  • Standard 4 mA to 20 mA output
  • 316 and 17-4PH stainless steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD





ORDERING INFORMATION

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SERIES 640
PRESSURE
RANGES		 30vac -30 inHg to 0 psig 5 0 psig to 5 psig 300 0 psig to 300 psig 6000 0 psig to 6,000 psig 15A 0 psia to 15 psia
30/15 -30 inHg to 15 psig 10 0 psig to 10 psig 500 0 psig to 500 psig 7500 0 psig to 7,500 psig 30A 0 psia to 30 psia
30/30 -30 inHg to 30 psig 15 0 psig to 15 psig 600 0 psig to 600 psig 10000 0 psig to 10,000 psig 60A 0 psia to 60 psia
30/60 -30 inHg to 60 psig 30 0 psig to 30 psig 750 0 psig to 750 psig 15000 0 psig to 15,000 psig 100A 0 psia to 100 psia
30/100 -30 inHg to 100 psig 60 0 psig to 60 psig 1000 0 psig to 1,000 psig 150A 0 psia to 150 psia
30/150 -30 inHg to 150 psig 100 0 psig to 100 psig 2000 0 psig to 2,000 psig 200A 0 psia to 200 psia
30/200 -30 inHg to 200 psig 150 0 psig to 150 psig 3000 0 psig to 3,000 psig 300A 0 psia to 300 psia
30/300 -30 inHg to 300 psig 200 0 psig to 200 psig 5000 0 psig to 5,000 psig
psig = gauge pressure       psia = absolute pressure       Other ranges available on special request
ACCURACIES 1 ± 0.05 % Full Scale (BFSL) 2 ± 0.025 % Full Scale (BFSL)
OUTPUT SIGNALS 1 4 mA to 20 mA, 2-wire analog 5 0 Vdc to 10 Vdc, 3-wire analog;
2 0 Vdc to 5 Vdc, 3-wire analog
PROCESS CONNECTIONS 2 1/4″ NPT male 8 1/2″ NPT male; other connections available upon request
ELECTRICAL CONNECTIONS 1 54″ Integral cable 25 M12 x 1 (4-pin)
OPTION ST8 Threaded Orifice

Description

NOSHOK 640 Series Precision Heavy Duty Pressure Transducers

3 Year Warranty

  • Vacuum ranges through 0 psig to 15,000 psig;
  • absolute ranges from0 psia to 15 psia through 0 psia to 300 psia
  • Standard 4 mA to 20 mA output
  • 316 and 17-4PH stainless steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD





ORDERING INFORMATION

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SERIES 640
PRESSURE
RANGES		 30vac -30 inHg to 0 psig 5 0 psig to 5 psig 300 0 psig to 300 psig 6000 0 psig to 6,000 psig 15A 0 psia to 15 psia
30/15 -30 inHg to 15 psig 10 0 psig to 10 psig 500 0 psig to 500 psig 7500 0 psig to 7,500 psig 30A 0 psia to 30 psia
30/30 -30 inHg to 30 psig 15 0 psig to 15 psig 600 0 psig to 600 psig 10000 0 psig to 10,000 psig 60A 0 psia to 60 psia
30/60 -30 inHg to 60 psig 30 0 psig to 30 psig 750 0 psig to 750 psig 15000 0 psig to 15,000 psig 100A 0 psia to 100 psia
30/100 -30 inHg to 100 psig 60 0 psig to 60 psig 1000 0 psig to 1,000 psig 150A 0 psia to 150 psia
30/150 -30 inHg to 150 psig 100 0 psig to 100 psig 2000 0 psig to 2,000 psig 200A 0 psia to 200 psia
30/200 -30 inHg to 200 psig 150 0 psig to 150 psig 3000 0 psig to 3,000 psig 300A 0 psia to 300 psia
30/300 -30 inHg to 300 psig 200 0 psig to 200 psig 5000 0 psig to 5,000 psig
psig = gauge pressure       psia = absolute pressure       Other ranges available on special request
ACCURACIES 1 ± 0.05 % Full Scale (BFSL) 2 ± 0.025 % Full Scale (BFSL)
OUTPUT SIGNALS 1 4 mA to 20 mA, 2-wire analog 5 0 Vdc to 10 Vdc, 3-wire analog;
2 0 Vdc to 5 Vdc, 3-wire analog
PROCESS CONNECTIONS 2 1/4″ NPT male 8 1/2″ NPT male; other connections available upon request
ELECTRICAL CONNECTIONS 1 54″ Integral cable 25 M12 x 1 (4-pin)
OPTION ST8 Threaded Orifice
