Noshok 25-02S-S-04S-GY Diaphragm Seal-Glycerin FILLED Standard & Elevated Pressure, Non-Replaceable Diaphragm Seal
Noshok 25-02S-S-04S-GY Diaphragm Seal-Glycerin FILLED Standard & Elevated Pressure, Non-Replaceable Diaphragm Seal List Price Original price was: $245.25.Current price is: $158.25.
Back to products
Pressure Gauge, 2.5" 304SS Case, Copper Alloy Internals, 5000 psi/kg/cm2, 1/4 NPT Male Back Conn, Glycerin Filled
NOSHOK 25-911-250-bar/psi-G1/4 -BSPP Back Conn 2/1/2 Liquid Filled Pressure gauge List Price Original price was: $112.25.Current price is: $38.99.
-32% Hot
Vacuum and compound ranges through 0 psi to 6,000 psi
NOSHOK Precision 800 series Test Pressure Gauges - Image 2
Click to enlarge
Vacuum and compound ranges through 0 psi to 6,000 psi
NOSHOK Precision 800 series Test Pressure Gauges - Image 2

NOSHOK Precision 800 series Test Pressure Gauges

SKU: 800 precision test gauges

List Price Original price was: $1,167.62.Current price is: $799.50.

38 in stock

aval to ship today
Need To Order in Bulk ?
PRICES NOW REFLECT IEEPA/Other Tariff Surcharges-
Add to wishlist
Compare



 MINIMUM QTY IF GAUGE IS 5 if NOT A STOCK ITEM



Home | Dial Indicating Pressure Gauges | 800 Series Precision Test



800 Series Precision Test Pressure Gauges



One Year Warranty

  • Highly accurate dry gauge
  • Vacuum and compound ranges through 0 psi to 6,000 psi
  • 6″ gauge size
  • Stainless steel case
  • Beryllium copper, 316 stainless steel, and brass wetted parts







ORDERING INFORMATION

GAUGE SIZE 60 6″
CASE TYPE 800 SS Case, bottom connection
PRESSURE RANGES 30vac -30 inHg to 0 psi 30/300 -30 inHg to 0 to 300 psi 300 0 psi to 300 psi 5000 0 psi to 5,000 psi
30/15 -30 inHg to 0 to 15 psi 15 0 psi to 15 psi 400 0 psi to 400 psi 6000 0 psi to 6,000 psi
30/30 -30 inHg to 0 to 30 psi 30 0 psi to 30 psi 600 o psi to 600 psi
30/60 -30 inHg to 0 to 60 psi 60 0 psi to 60 psi 1000 0 psi to 1,000 psi
30/100 -30 inHg to 0 to 100 psi 100 0 psi to 100 psi 1500 0 psi to 1,500 psi
30/160 -30 inHg to 0 to 160 psi 160 0 psi to 160 psi 2000 0 psi to 2,000 psi
30/200 -30 inHg to 0 to 200 psi 200 0 psi to 200 psi 3000 0 psi to 3,000 psi
SCALE OPTION psi psi single scale
CONNECTION SIZES 1/4 1/4″ NPT 1/2 1/2″ NPT SST SAE J1926-3 7/16″-20 adjustable

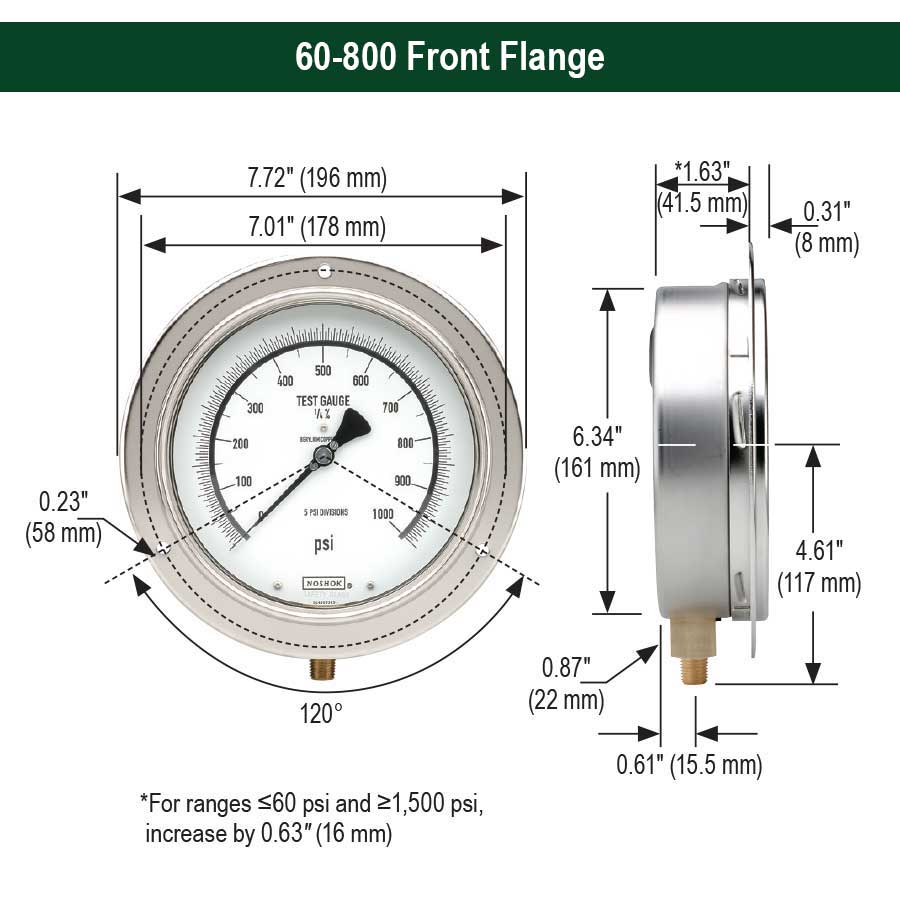

OPTIONS SSFF 304SS Front Flange ST Stainless Steel Tagging
SSRF 304SS Rear Flange BP3 Brass Press Fit Orifice 0.3 mm
GC Gauge Carrying Case BT8 Brass Threaded Orifice 0.8 mm
LM Laser Marking

   Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

   NOTE: Refer to 800 Series Options & Accessories for availability by part number.
