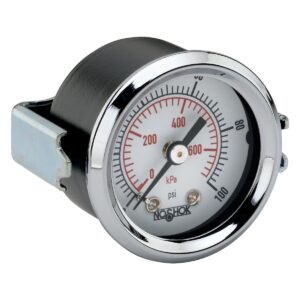

Noshok 15-120-100-psi/kPa 1/8" NPT Back Conn 1.5" steel Panel Mount DRY Pressure Gauge-100-psi
NOSHOK List price: Original price was: $48.69.$36.50Current price is: $36.50.
Noshok 623/624 Series Non-Incendive Pressure Transmitters
Date modified: May 26, 2023
Online Prices
NOSHOK List price: $435.08

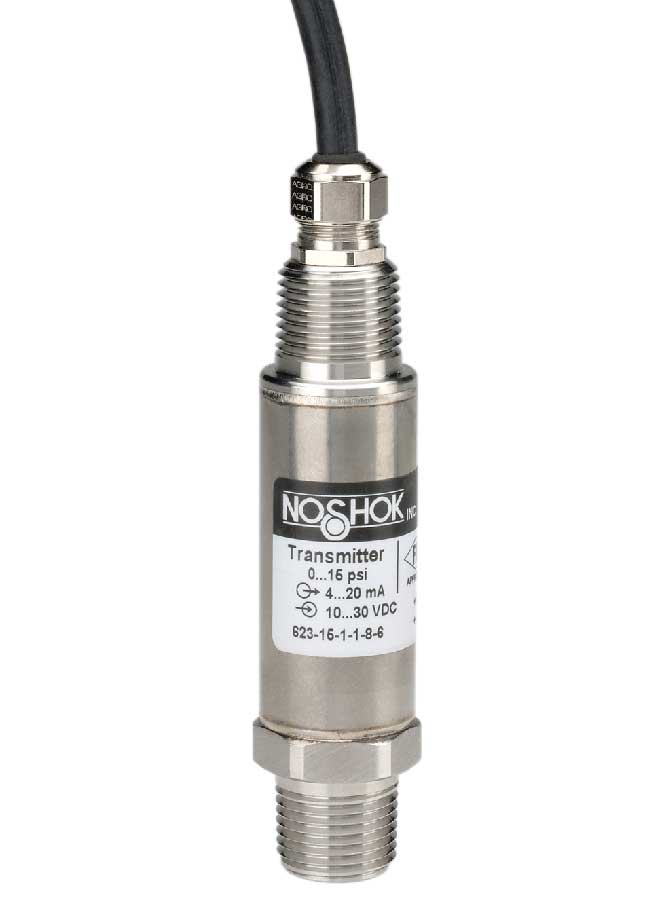

Noshok 623/624 Series Non-Incendive Pressure Transmitters
- Vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges
from 0 psia to 15 psia through 0 psia to 100 psia - Current and voltage outputs available
- 316 stainless steel and Elgiloy wetted parts
- Factory Mutual and Canadian Standards Association approved
- CE compliant to suppress RFI, EMI and ESD
- NACE MR0175/ISO 15156 compliant
- NSI/ISA-12.27.01-2003 approved single seal
ORDERING INFORMATION
| SERIES | 623 | Stainless steel threaded connection | 624* | 316 Stainless Steel Flush Diaphragm | ||||
| PRESSURE RANGES |
30vac | -30 inHg to 0 psig | 30 | 0 psig to 30 psig | 500 | 0 psig to 500 psig | 6000 | 0 psig to 6,000 psig |
| 30/30 | -30 inHg to 30 psig | 60 | 0 psig to 60 psig | 1000 | 0 psig to 1,000 psig | 8000 | 0 psig to 8,000 psig | |
| 30/60 | -30 inHg to 60 psig | 100 | 0 psig to 100 psig | 1500 | 0 psig to 1,500 psig | 10000 | 0 psig to 10,000 psig | |
| 30/100 | -30 inHg to 100 psig | 200 | 0 psig to 200 psig | 2000 | 0 psig to 2,000 psig | 15000 | 0 psig to 15,000 psig | |
| 15 | 0 psig to 15 psig | 300 | 0 psig to 300 psig | 3000 | 0 psig to 3,000 psig | 15A | 0 psia to 15 psia | |
| 5000 | 0 psig to 5,000 psig | 100A | 0 psia to 100 psia | |||||
| psig = gauge pressure | psia = absolute pressure | Other ranges available upon request | ||||||
| NOTE: Series 624 is available for pressure ranges up to 0 psig to 8,000 psig | ||||||||
| ACCURACY | 1 | ± 0.25% full scale (BFSL) | ||||||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 3 | 1 Vdc to 5 Vdc, 3-wire, low power | 31 | 0.5 Vdc to 4.5 Vdc, 3-wire, low power | ||
| PROCESS CONNECTIONS | 2 | 1/4″ NPT male | 11 | G1/2B male flush (624 Series only) (pressure ranges 0 psi to 30 psi through 0 psi to 8,000 psi) | ||||
| 8 | 1/2″ NPT male | 13 | G1B male flush (624 Series only) (pressure ranges 0 psi to 30 psi and below) | |||||
| ELECTRICAL CONNECTIONS | 6 | 1/2″ NPT male conduit with 6′ integral cable | ||||||
| OPTION | ORF | Threaded Orifice (623 Series only) | ||||||
Description
Noshok 623/624 Series Non-Incendive Pressure Transmitters
- Vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges
from 0 psia to 15 psia through 0 psia to 100 psia - Current and voltage outputs available
- 316 stainless steel and Elgiloy wetted parts
- Factory Mutual and Canadian Standards Association approved
- CE compliant to suppress RFI, EMI and ESD
- NACE MR0175/ISO 15156 compliant
- NSI/ISA-12.27.01-2003 approved single seal
ORDERING INFORMATION
| SERIES | 623 | Stainless steel threaded connection | 624* | 316 Stainless Steel Flush Diaphragm | ||||
| PRESSURE RANGES |
30vac | -30 inHg to 0 psig | 30 | 0 psig to 30 psig | 500 | 0 psig to 500 psig | 6000 | 0 psig to 6,000 psig |
| 30/30 | -30 inHg to 30 psig | 60 | 0 psig to 60 psig | 1000 | 0 psig to 1,000 psig | 8000 | 0 psig to 8,000 psig | |
| 30/60 | -30 inHg to 60 psig | 100 | 0 psig to 100 psig | 1500 | 0 psig to 1,500 psig | 10000 | 0 psig to 10,000 psig | |
| 30/100 | -30 inHg to 100 psig | 200 | 0 psig to 200 psig | 2000 | 0 psig to 2,000 psig | 15000 | 0 psig to 15,000 psig | |
| 15 | 0 psig to 15 psig | 300 | 0 psig to 300 psig | 3000 | 0 psig to 3,000 psig | 15A | 0 psia to 15 psia | |
| 5000 | 0 psig to 5,000 psig | 100A | 0 psia to 100 psia | |||||
| psig = gauge pressure | psia = absolute pressure | Other ranges available upon request | ||||||
| NOTE: Series 624 is available for pressure ranges up to 0 psig to 8,000 psig | ||||||||
| ACCURACY | 1 | ± 0.25% full scale (BFSL) | ||||||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 3 | 1 Vdc to 5 Vdc, 3-wire, low power | 31 | 0.5 Vdc to 4.5 Vdc, 3-wire, low power | ||
| PROCESS CONNECTIONS | 2 | 1/4″ NPT male | 11 | G1/2B male flush (624 Series only) (pressure ranges 0 psi to 30 psi through 0 psi to 8,000 psi) | ||||
| 8 | 1/2″ NPT male | 13 | G1B male flush (624 Series only) (pressure ranges 0 psi to 30 psi and below) | |||||
| ELECTRICAL CONNECTIONS | 6 | 1/2″ NPT male conduit with 6′ integral cable | ||||||
| OPTION | ORF | Threaded Orifice (623 Series only) | ||||||
