Noshok Electronic Indicating Temperature Transmitter/Switch-850 series
Date modified: Sep 21, 2023
Online Prices
NOSHOK List price: $452.00

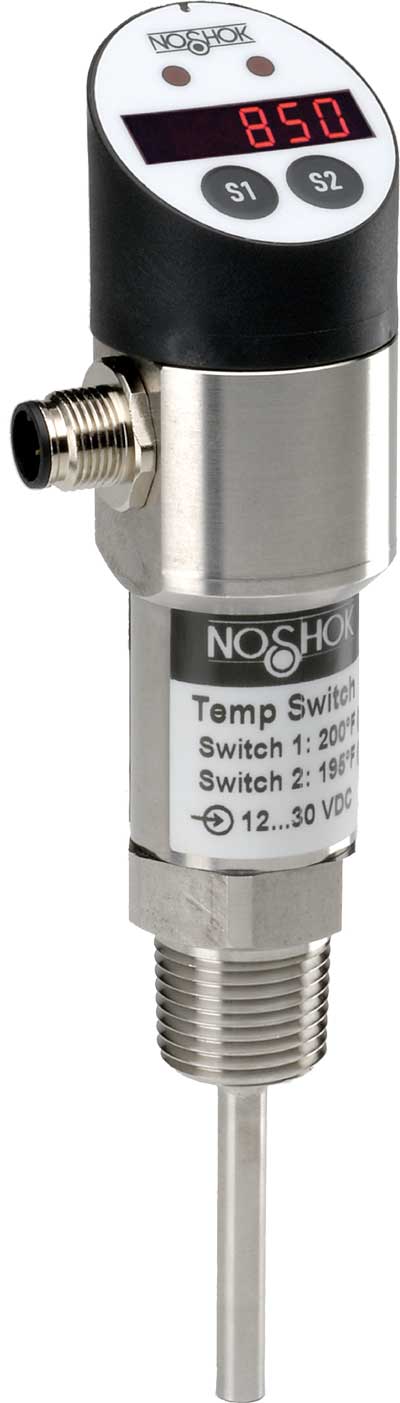

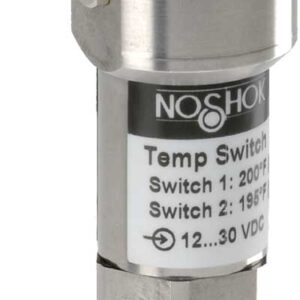

Noshok 850 Series Electronic Indicating Temperature Transmitter/Switch
CHANGES IN THE TEMPERATURE RANGES
* NPN available, consult factory
** Available only with M12 x 1 (5-pin) connector
*** Not available with sliding compression fitting
† Available only with sliding compression fitting process connection and stem lengths ≥4″
†† Switch function 4 and 5 only
Options & Accessories
| SERIES | 850 | |||||
| SWITCH FUNCTIONS | 1 | 2 N.O. or 2 N.C. switch (PNP*) | 4 | 2 N.O. or 2 N.C. switch (PNP*) with 4 mA to 20 mA 3-wire analog output** | ||
| 2 | 1 N.O. or 1 N.C. switch (PNP*) with 4 mA to 20 mA 3-wire analog output |
5 | 2 N.O. or 2 N.C. switch (PNP*) with 0 Vdc to 10 Vdc 3-wire output)** | |||
| 3 | 1 N.O. or 1 N.C. switch (PNP*) with 0 Vdc to 10 Vdc 3-wire output | |||||
| PROCESS CONNECTIONS | 2 | 1/4″ NPT male | 47 | 1/4” NPT Male sliding compression fitting | ||
| 8 | 1/2″ NPT Male | 48 | 1/2” NPT Male sliding compression fitting | |||
| TEMPERATURE RANGES | -4/176 | -4 °F to 176 °F (-20 °C to 80 °C) | -4/248 | -4 °F to 248 °F (-20 °C to 120 °C)† This range is available with sliding compression fitting ONLY |
||
| ELECTRICAL CONNECTION | 2 | M12 X 1 (4-PIN) | 3 | M12 X 1 (5-pin)†† | ||
| STEM LENGTHS | 010 | 1″ *** | 040 | 4″ | 120 | 12″ |
| 020 | 2″ *** | 060 | 6″ | |||
| 025 | 2.5″ *** | 090 | 9″ | |||
| STEM DIAMETERS | 6 | 6 mm | ||||
