NOSHOK High Performance Micro-Size Transducers – 660 Series
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
| SERIES | 660 | |||||||
| PRESSURE RANGES |
200 | 0 psig to 200 psig | 500 | 0 psig to 500 psig | 3000 | 0 psig to 3,000 psig | 10000 | 0 psig to 10,000 psig |
| 300 | 0 psig to 300 psig | 1000 | 0 psig to 1,000 psig | 5000 | 0 psig to 5,000 psig | 15000 | 0 psig to 15,000 psig | |
| psig = gauge pressure Other ranges available on special request | ||||||||
| ACCURACY | 1 | ± 0.25 % full scale (BFSL) | ||||||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 3 | 1 Vdc to 5 Vdc , 3-wire | 27 | 0.1 Vdc to 10 Vdc, 3-wire | ||
| PROCESS CONNECTIONS | 2 | 1/4″ NPT male | ||||||
| ELECTRICAL CONNECTIONS | 1 | 36″ cable (connected to option 7) | 7 | Mini-Hirschmann (DIN EN 175301-803 Form C) | 25 | M12 x 1 (4-pin) | ||
Description

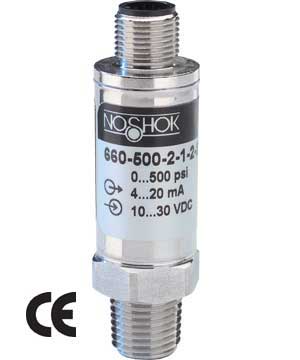

NOSHOK High Performance Micro-Size Transducers – 660 Series
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
| SERIES | 660 | |||||||
| PRESSURE RANGES |
200 | 0 psig to 200 psig | 500 | 0 psig to 500 psig | 3000 | 0 psig to 3,000 psig | 10000 | 0 psig to 10,000 psig |
| 300 | 0 psig to 300 psig | 1000 | 0 psig to 1,000 psig | 5000 | 0 psig to 5,000 psig | 15000 | 0 psig to 15,000 psig | |
| psig = gauge pressure Other ranges available on special request | ||||||||
| ACCURACY | 1 | ± 0.25 % full scale (BFSL) | ||||||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 3 | 1 Vdc to 5 Vdc , 3-wire | 27 | 0.1 Vdc to 10 Vdc, 3-wire | ||
| PROCESS CONNECTIONS | 2 | 1/4″ NPT male | ||||||
| ELECTRICAL CONNECTIONS | 1 | 36″ cable (connected to option 7) | 7 | Mini-Hirschmann (DIN EN 175301-803 Form C) | 25 | M12 x 1 (4-pin) | ||
