Noshok Mechanical SPDT Switch- 200 series

Part Number: 200 Mechanical Switches

Date modified: Oct 19, 2023

Online Prices

NOSHOK List price: $76.00

250 in stock

Warranty: 3 YR
Add to wishlist
Compare

Noshok 200 Mechanical Switches

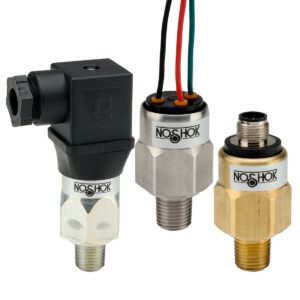

200 Series Mechanical Compact SPDT Pressure Switches

Download Literature
 Water/
Wastewater

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SERIES 200V 200 Vacuum Series 200H 200 High Pressure Series
200L 200 Low Pressure Series
SWITCH FUNCTION 1 SPST, Normally open 3 SPDT
2 SPST, Normally closed
PROCESS CONNECTION 1 1/8″ NPT male 31 9/16-18 SAE Male, Non-Adjustable
2 1/4″ NPT male 33 G 1/8B
10 G 1/4B 45 7/16-20 SAE Male, Non-Adjustable
200V VACUUM PRESSURE SWITCH ADJUSTMENT RANGES (Max. working pressure) 5/25-vac -5 inHg to -25 inHg (350 psig)
200L LOW PRESSURE SWITCH ADJUSTMENT RANGES (Max. working pressure) 3/15 3 psig to 15 psig (350 psig) 15/75 15 psig to 75 psig (350 psig)
5/30 5 psig to 30 psig (350 psig) 50/150 50 psig to 150 psig (350 psig)
200H HIGH PRESSURE SWITCH ADJUSTMENT RANGES (Max. working pressure) 10/85 10 psig to 85 psig (9,000 psig) 500/2500 500 psig to 2,500 psig (9,000 psig)
65/300 65 psig to 300 psig (9,000 psig) 500/3500 500 psig to 3,500 psig (9,000 psig)
125/600 125 psig to 600 psig (9,000 psig) 1000/6000 1,000 psig to 6,000 psig (9,000 psig)
ELECTRICAL CONNECTIONS† 4 Spade Terminals (1/4 x 1/32) 98 Weatherpack Shroud, 2-Pin Female*,**
8 DIN EN 175301-803 Form A 99 Weatherpack Shroud, 2-Pin Male*,**
34 Packard 3-Pin 100 Deutsch 2-Pin Male (DT04-2P)*, **
46 Deutsch Integral 3-Pin (DT04-3P) 101 Deutsch 3-Pin Male (DT04-3P)*
66 Deutsch Integral 2-Pin (DT04-2P) ** 103 Deutsch 2-Pin Female Socket (DT06-2S)*, **
69 M12 x 1 3-Pin 104 Deutsch 3-Pin Female Socket (DT06-3S)*
77 18″ Flying Leads 110 Weatherpack Tower, 3-Pin Female*
78 6-32 Terminal Screws 111 Weatherpack Tower, 3-Pin Male*
96 Weatherpack Tower, 2-Pin Female*,** 112 Weatherpack Shroud, 3-Pin Female*
97 Weatherpack Tower, 2-Pin Male*,** 113 Weatherpack Shroud, 3-Pin Male*
OPTIONS *** AU Gold Plated Contacts VT FKM Diaphragm (0/250 °F)
EP EPDM Diaphragm (-10/250 °F) KP Polyimide (-40/230 °F)
HNBR Low Temp Nitrile (-40/110 °F) SS 316 SS Wetted Materials

Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

* Options attached to Flying Leads
** For SPST only
*** Not all options are available for all ranges, consult factory
† Other electrical connections available, consult the factory

Options & Accessories
