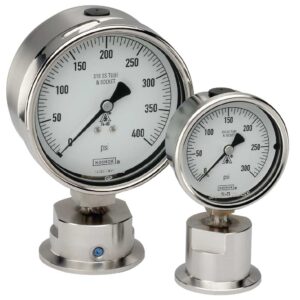

Noshok Heavy-Duty Sanitary Pressure Gauges-Noshok 10 Series
NOSHOK List price: $416.30
Noshok 1800 Series Attachable Loop-Powered Digital Indicators
NOSHOK List price: $368.20
Noshok Sanitary Clamp Pressure Transmitters-11 Series ASME-BPE
Date modified: May 07, 2023
Online Prices
NOSHOK List price: $820.00

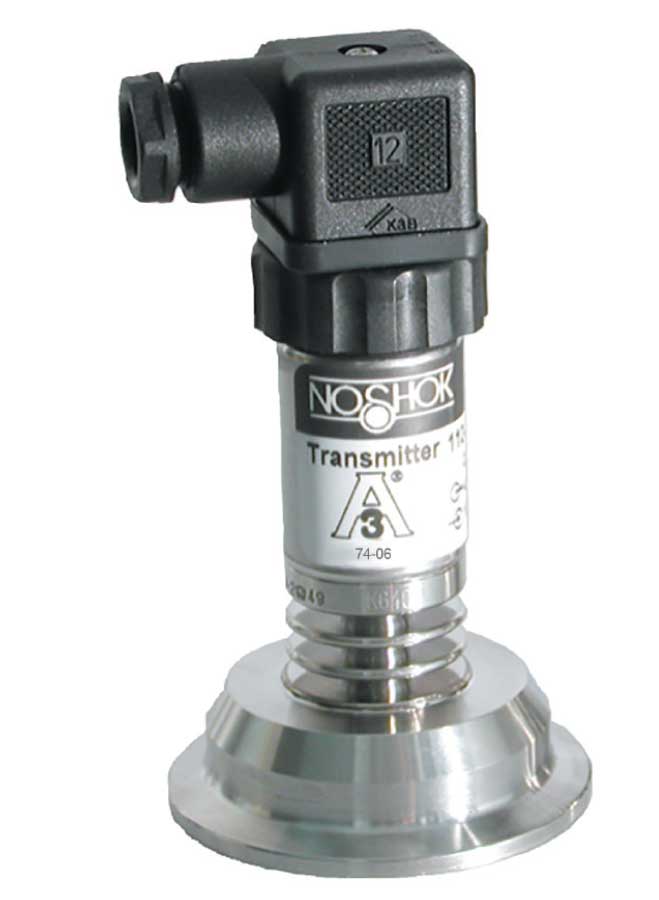

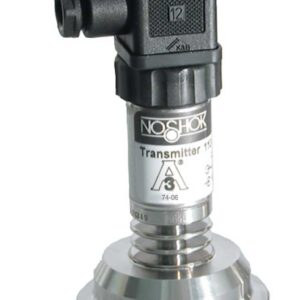

Noshok 11 Series ASME-BPE Sanitary Clamp Pressure Transmitters
11 Series ASME-BPE Sanitary Clamp Pressure Transmitters
- Ranges from vacuum through 0 psig to 400 psig
- Current and voltage outputs available
- 316 stainless steel wetted parts
- Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
- Meets 3A requirements for the food and beverage, dairy, pharmaceutical
and biotechnology industries - ASME BPE compliant
- CE compliant to suppress RFI, EMI and ESD
ORDERING INFORMATION
| SERIES | 110 | |||||||
| CLAMP SIZES | 12 | 1-1/2″ | 16 | 2″ | ||||
| SEAL FILL FLUID | 4 | FFL77 White Oil Other food grade fill fuids available – please consult factory | ||||||
| TRANSDUCER | 615 | Series 615 transducer | ||||||
| ACCURACIES | 1 | ±0.25% full scale (BFSL) | 2 | ±0.125% full scale | ||||
| PRESSURE RANGES |
01 | -30 inHg to 0 psig | 16 | -30 inHg to 150 psig | 37 | 0 psig to 10 psig | 52 | 0 psig to 150 psig |
| 04 | -30 inHg to 15 psig | 19 | -30 inHg to 200 psig | 40 | 0 psig to 15 psig | 58 | 0 psig to 200 psig | |
| 07 | -30 inHg to 30 psig | 22 | -30 inHg to 300 psig | 43 | 0 psig to 30 psig | 61 | 0 psig to 300 psig | |
| 10 | -30 inHg to 60 psig | 31 | 0 psig to 100 inH2O | 46 | 0 psig to 60 psig | 64 | 0 psig to 400 psig | |
| 13 | -30 inHg to 100 psig | 34 | 0 psig to 5 psig | 49 | 0 psig to 100 psig | |||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 3 | 1 Vdc to 5 Vdc, 3-wire | 5 | 0 Vdc to 10 Vdc, 3-wire | ||
| 2 | 0 Vdc to 5 Vdc, 3-wire | 4 | 1 Vdc to 6 Vdc, 3-wire | 6 | 1 Vdc to 11 Vdc, 3-wire | |||
| ELECTRICAL CONNECTIONS | 1 | 36″ Cable attached to Hirschmann | 14 | Hirschmann Connection with ISO 4400 1/2″ NPT Conduit | ||||
| 3 | 6-pin Bendix | 25 | M12 X1 (4-pin) | |||||
| 8 | Hirschmann (DIN EN 175301-803 Form A) | 36 | Integral 36″ Cable | |||||
