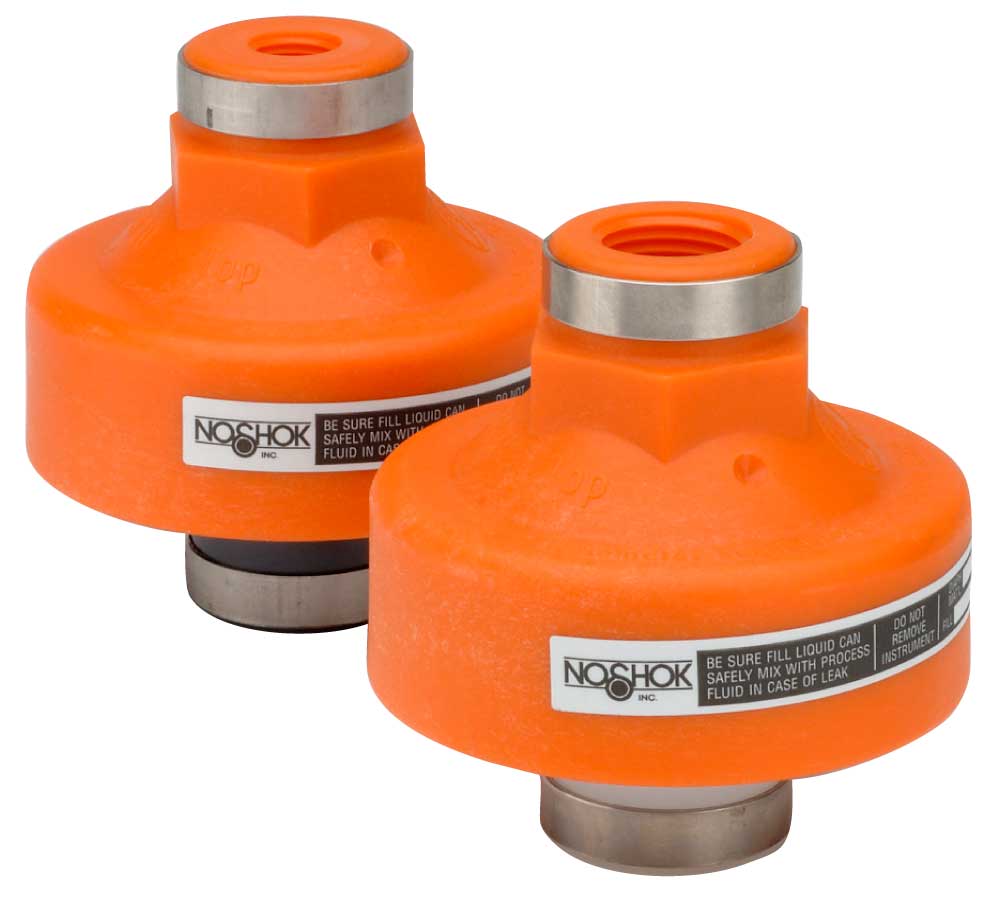

NOSHOK Type 5 All Non-Metallic, Non-Replaceable Diaphragm Seal

Part Number: TYPE 5

Date modified: Dec 20, 2023

Online Prices

NOSHOK List price: Original price was: $312.50.Current price is: $239.50.

19 in stock

Need Other Pressure ranges ??Please call us 1-888-509-0111
Warranty: 3 YR
Add to wishlist
Compare

Type 5 All Non-Metallic, Non-Replaceable Diaphragm Seals





  • For wastewater and chemical feed applications, as well as most applications with a corrosive media
  • Constructed of corrosion-resistant PP glass fiber reinforced upper housing and
    PP, PVC or PVDF lower housing
  • Protects pressure or vacuum instruments used on ultra-pure or highly corrosive
    fluid lines such as demineralized water, sulfuric acid, hydrochloric acid, and caustics
  • PTFE coated EPDM diaphragms are standard on all assemblies
  • 100% non-metallic wetted parts assures maximum chemical and temperature
    compatibility
Tech Manual



ORDERING INFORMATION

TYPE 05 160 psi maximum pressure
INSTRUMENT CONNECTION SIZES 02 1/4″ NPT 04 1/2″ NPT
UPPER HOUSING MATERIAL PP PP
DIAPHRAGM MATERIAL E EPDM-PTFE coated on process side
PROCESS CONNECTION SIZES 02 1/4″ NPT 04 1/2″ NPT
LOWER HOUSING MATERIALS PV PVC PP PP KN PVDF
