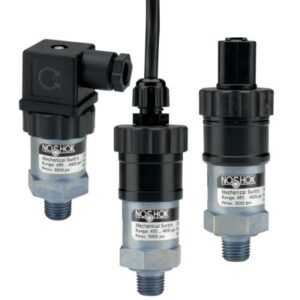

NOSHOK 300V-2-2-5/28-vac-103 Mechanical Pressure Switch, 1 SPST Switch, Normally Closed, 1/4 NPT Male Conn, -5 inHg to -28 inHg Adjustment, Deutsch 2-Pin Female Socket (DT06-2S) NOSHOK List price: Original price was: $134.08.Current price is: $107.85.
Back to products

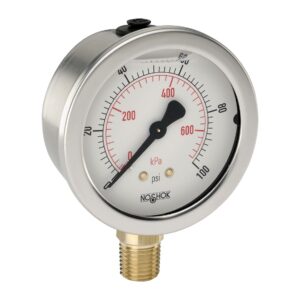

NOSHOK 60-500-600-psi/bar-CC 1/2 NPT Bottom Connection Stainless Steel Pressure Gauge, Glycerin Filled, Certified Calibration NOSHOK List price: Original price was: $790.78.Current price is: $555.25.
-69%
Click to enlarge

Steel Case & ABS Dry Pressure Gauges -NOSHOK 100 SERIES-Pick your Configurations Below

Part Number: 100 SERIES STANDARD DRY PRESSURE GAUGES

Date modified: Apr 24, 2024

Online Prices

NOSHOK List price: Original price was: $65.20.Current price is: $19.99.

652 in stock

NEED ANYTHING ELSE-CALL US 1-888-509-0111
Warranty: 1 year
NEED TO PURCHASE IN BULK ?
Add to wishlist
Compare

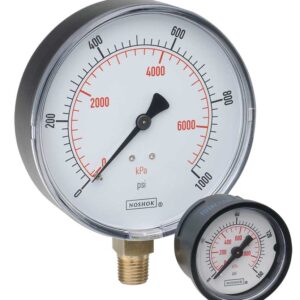

Noshok 100 SERIES STANDARD PRESSURE GAUGES

100 Series ABS & Steel Case, Dry Pressure Gauges

NOSHOK 15-120-30-psi/kPa-GL 1/8 NPT Back Conn, dry 1.5 Panel Mount Gauge, Glass Lens





  • General purpose non-fillable dry gauge
  • Vacuum and compound ranges through 0 psi to 15,000 psi
  • 1-1/2″, 2″, 2-1/2″ and 4″ gauge sizes
  • Standard impact-resistant ABS & steel case
  • Copper alloy and brass wetted parts





ORDERING INFORMATION

SIZES 15 1-1/2″ 20 2″ 25 2-1/2″ 40 4″
CASE TYPES 100 ABS, bottom connection 120 Steel case panel mount
110 ABS, back connection 148 Square ABS, panel mount (2″ only)
PRESSURE
RANGES		 30vac -30 inHg to 0 psi 30/300 -30 inHg to 0 to 300 psi 200 0 psi to 200 psi 2000 0 psi to 2,000 psi
30/15 -30 inHg to 0 to 15 psi 15 0 psi to 15 psi 300 0 psi to 300 psi 3000 0 psi to 3,000 psi
30/30 -30 inHg to 0 to 30 psi 30 0 psi to 30 psi 400 0 psi to 400 psi 5000 0 psi to 5,000 psi
30/60 -30 inHg to 0 to 60 psi 60 0 psi to 60 psi 600 0 psi to 600 psi 6000 0 psi to 6,000 psi
30/100 -30 inHg to 0 to 100 psi 100 0 psi to 100 psi 1000 0 psi to 1,000 psi 10000 0 psi to 10,000 psi
30/160 -30 inHg to 0 to 160 psi 160 0 psi to 160 psi 1500 0 psi to 1,500 psi 15000 0 psi to 15,000 psi
30/200 -30 inHg to 0 to 200 psi Other ranges available on request
SCALE OPTIONS*** psi psi single scale psi/kPa psi/kPa dual scale psi/kg/cm2 psi/kg/cm2 dual scale psi/bar psi/bar dual scale
CONNECTION
SIZES		 1/8 1/8″ NPT SST SAE J1926-3:7/16-20 Adjustable 1/4 1/4″ NPT
OPTIONS PMC Panel Mount Clamp SSC Stainless Steel Case LL Polycarbonate Lens SST Stainless Steel Tagging
SSB Polished Stainless Steel Bezel CRC Chrome Case GL Glass Lens* CPO Brass Sintered Orifice 20 Micron
BLRF Black Rear Flange FAC Flat Sided ABS Case SG Safety Glass Lens* BP1 Brass Press Fit Orifice 0.1 mm
BLFF Black Front Flange – ABS Case BCR Black Cover Ring** HL Homalite Lens* BP3 Brass Press Fit Orifice 0.3 mm
CFF Chrome Front Flange – ABS Case SSCR Stainless Steel Cover Ring** SP Red Set Pointer** BP8 Brass Press Fit Orifice 0.8 mm
SBFF Black Front Flange – Steel Case CCR Chrome Cover Ring** MIP Maximum Indicating Pointer
SCFF Chrome Front Flange – Steel Case PCCR Polished Chrome Cover Ring** SDM Silicone Dampened Movement
BSC Black Steel Case CAR Chrome Adapter Ring* LM Laser Marking
* A steel, stainless or chrome case & cover ring must be additionally ordered when lenses other than acrylic are utilized on all 100 Series models.
** Only 110 Models require a steel, stainless or chrome case & cover ring to be additionally ordered when utilizing a set pointer or cover ring. Please consult factory when a set pointer is to be utilized on a 120 Model.
*** Other ranges available on request
