Noshok 1000 Series Piston Differential Pressure Gauges

Part Number: 1000 Series Piston Type Differential Pressure Gauges

Date modified: Oct 31, 2023

Online Prices

NOSHOK List price: $450.00

6 in stock

Warranty: 3 YR
Add to wishlist
Compare

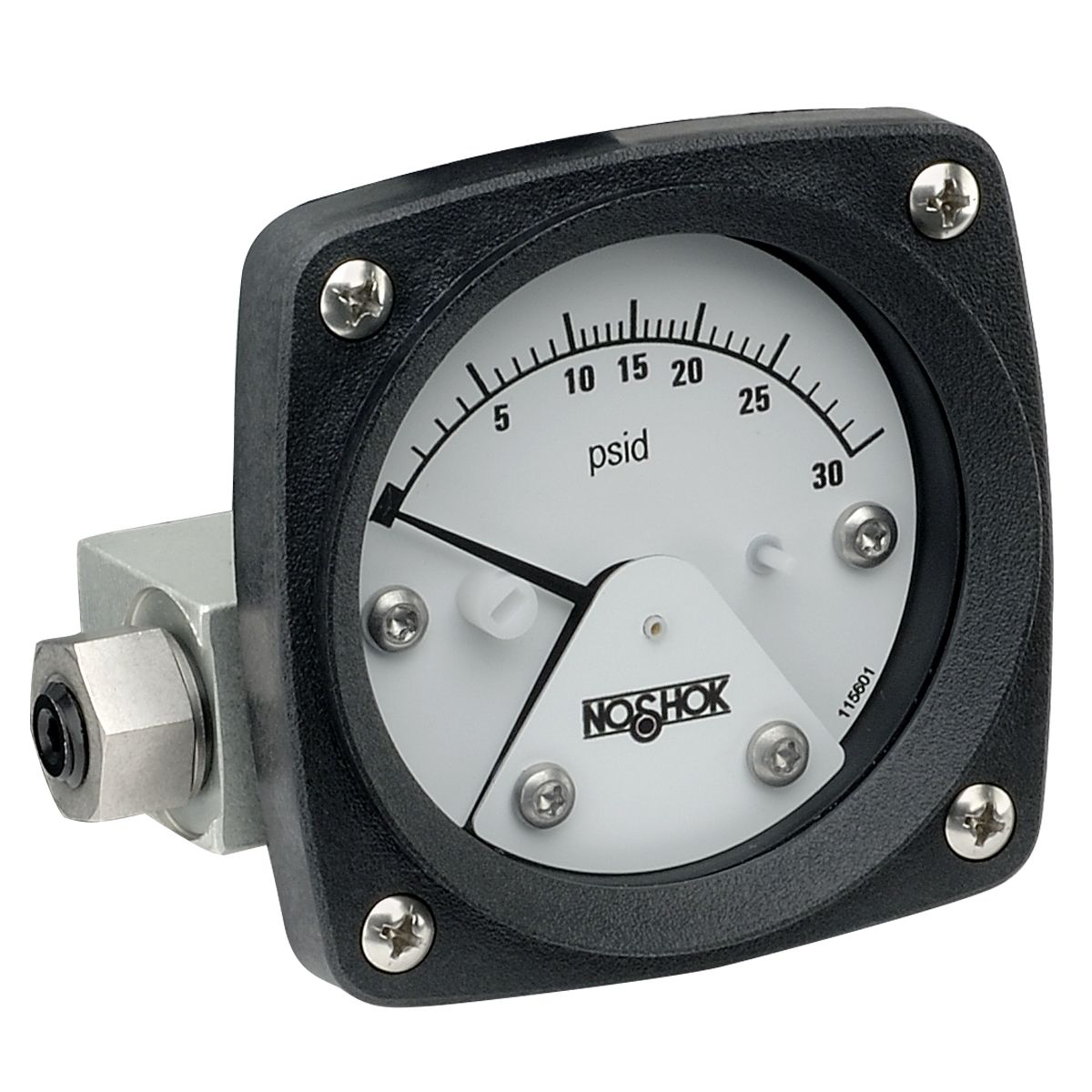

Noshok 1000 Series Piston Type Differential Pressure Gauges

  • High working static pressure dry or liquid-filled gauge
  • Ranges from 0 psid to 5 psid through 0 psid to 100 psid
  • 2-1/2″ and 4-1/2″ gauge sizes
  • Fiberglass reinforced thermoplastic case
  • Standard black anodized aluminum wetted parts

    1000 Series Piston Type Differential Pressure Gauges



    3 year warranty



  • High working static pressure dry or liquid-filled gauge
  • Ranges from 0 psid to 5 psid through 0 psid to 100 psid
  • 2-1/2″ and 4-1/2″ gauge sizes
  • Fiberglass reinforced thermoplastic case
  • Standard black anodized aluminum wetted parts

  •

    Dimensions Tech Manuals Print Catalog Page



    ORDERING INFORMATION

    GAUGE SIZES & SERIES 25 – 10 2-1/2″ 45 – 10 4-1/2″
    CONNECTION LOCATIONS 1 Back 2 Side
    CONNECTION SIZE 2 1/4″ NPT female
    PRESSURE RANGES P5 0 psid to 5 psid P15 0 psid to 15 psid P25 0 psid to 25 psid P5 0 psid psid to 50 psid P75 0 psid to 75 psid
    P10 0 psid to 10 psid P20 0 psid to 20 psid P30 0 psid to 30 psid P60 0 psid to 60 psid P100 0 psid to 100 psid
    SENSOR HOUSING MATERIALS A Aluminum, black S 316L Stainless steel
    O-RING MATERIALS 2 FKM 3 NBR 4 EPDM
    CASE MATERIAL P Thermoplastic
    LENSES 1 Acrylic 2 Safety glass 3 Maximum indicating pointer (MIP)
    FILL FLUIDS (OPTIONAL) GY Glycerine SL Silicone HL Halocarbon®





See us here for sizes
