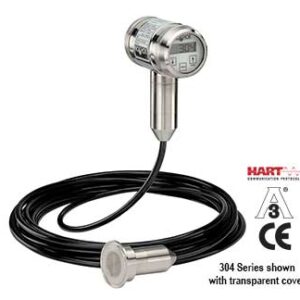

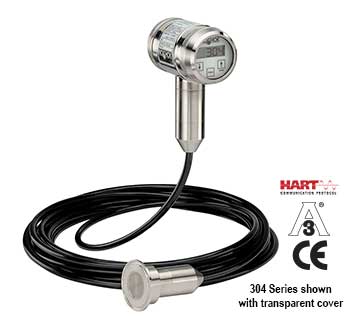

Noshok 30 Series “SNORKEL” Sanitary Pressure & Level Transmitter

Part Number: 30 Series
Online Prices

NOSHOK List price: $915.30

25 in stock

Warranty: 3 YR

Noshok 30 Series “SNORKEL” Pressure & Level Transmitter

30 Series “SNORKEL” Pressure & Level Transmitter

Application Brochures
Food & Beverage
 Water/
Wastewater

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SERIES        300 Fixed range transmitter 302 Adjustable transmitter
301 Adjustable transmitter with Hart® signal 304 Intelligent transmitter
TRI-CLAMP SIZE 12 1-1/2″ 24 3″
16 2″
300 SERIES
PRESSURE RANGES
(Fixed)
40 inH2O 0 inH2O to 40 inH2O 120 inH2O 0 inH2O to 120 InH2O 15 0 psig to 15 psig
60 inH2O 0 inH2O to 60 inH2O 5 0 psig to 5 psig 30 0 psig to 30 psig
80 inH2O 0 inH2O to 80 inH2O 10 0 psig to 10 psig 60 0 psig to 60 psig
301 SERIES
PRESSURE RANGES
( Adjustable transmitter with HART® signal)
16/160 inH2O 0 inH2O to 16 inH2O to 0 inH2O to 160 inH2O 14.5/145 0 psig to 14.5 psig to 0 psig to 145 psig 290/1450 0 psig to 290psig to 0 psig to 1,450 psig
47/470 inH2O 0 inH2O to 47 inH2O to 0 inH2O to 470 inH2O 72.5/435 0 psig to 72.5 psig to 0 psig to 435 psig
302 SERIES
PRESSURE RANGES
(Adjustable)
40/160 inH2O 0 inH2O to 40 inH2O to 0 inH2O to
160 inH2O
14.5/58 0 psig to 14.5 to 0 to 58 psig 232/725 0 psig to 232 psig to 0 psig to 725 psig
160/277 inH2O 0 inH2O to 160 inH2O to 0 inH2O to
277 inH2O
36/145 0 psig to 36 psig to 0 psig to 145 psig 580/1160 0 psig to 580 psig to 0 psig to
1,160 psig
277/609 inH2O 0 inH2O to 277 to 0 inH2O to
609 inH2O
100/232 0 psig to 100 psig to 0 psig to
232 psig
304 SERIES
PRESSURE RANGES
(Intelligent)
16/160 inH2O 0 inH2O to 16 inH2O to 0 inH2O to
160 inH2O
14.5/145 0 psig to 14.5 to 0 psig to 145 psig 290/1450 0 psig to 290 psig to 0 psig to 1,450 psig
47/470 inH2O 0 inH2O to 47 inH2O to 0 inH2O to
470 inH2O
72.5/435 0 psig to 72.5 psig to 0 psig to 435 psig
ACCURACIES 1 0.2% of adjusted span *
OUTPUT SIGNALS 1 4 mA to 20 mA, 2-wire 43 4 mA to 20 mA, 2-wire and Hart® signal **
ELECTRICAL CONNECTIONS† 25 M12x1 (4-pin) 71 PG9 Cable Gland
28 1/2″ NPT Female
CABLE LENGTHS†† 15P 15′ Polyurethane cable 30P 30′ Polyurethane cable
OPTIONS JB Cable Junction Box TC Transparent Cover (for display) ***

Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

* Standard accuracy on the 304 Series is ±0.1% of adjusted span
** Required for the 301 Series, optional for the 304 Series
*** Available for the 304 Series only
† Available for the 302 and 304 Series only
† † Additional cable lengths available, consult factory
