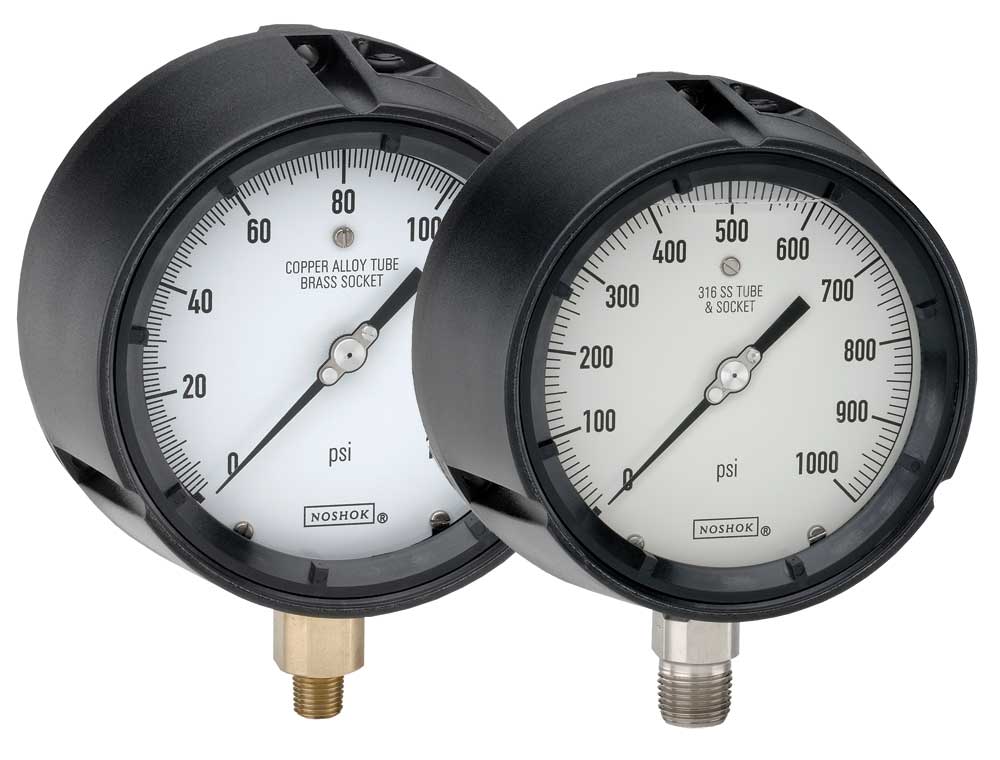

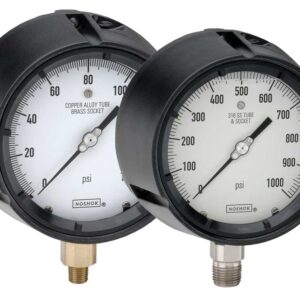

NOSHOK- 600/700 Series 4-1/2 Dia. Bottom Connection Process dry and Liquid Filled Pressure Gauges

Part Number: 600/700 series

  • Turret style dry (field fillable) and liquid filled process gauges
  • Vacuum and compound ranges through 0 psi to 15,000 psi
  • 4-1/2" gauge sizes
  • Black Polypropylene safety case with solid front and blow-out back
  • 316 Stainless Steel and Brass wetted parts

Original price was: $269.22.Current price is: $60.00.

150 in stock

Avalable For immediate Delivery
Warranty: 3 YR
NEED TO PURCHASE IN BULK ?
Custom-Built NOSHOK Gauges Available!
We accept Visa, Mastercard, etc.
Add to wishlist
Compare

Noshok 600/700 series Process gauge

Home | Dial Indicating Pressure Gauges | 600/700 Series Process



600/700 Series Process Pressure Gauges
640/740 Series Dry & 660/760 Series Liquid



  • Turret style dry or liquid-filled gauge
  • Vacuum and compound ranges through 0 psi to 60,000 psi
  • 4-1/2″ gauge sizes
  • Black phenolic safety case with solid front and blow-out back PBT
  • Phosphor bronze, 316 stainless steel and brass wetted parts





ORDERING INFORMATION

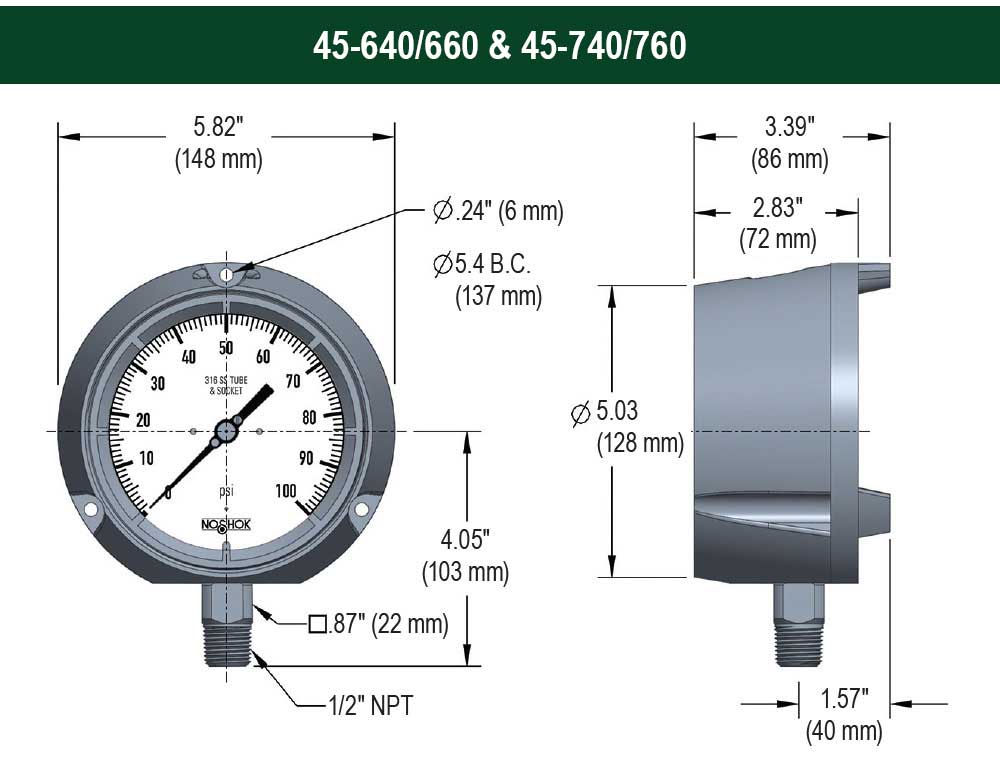

GAUGE SIZES 45 4-1/2″
CASE TYPES 640 Brass, dry, bottom connection 660 Brass, liquid filled, bottom connection
740 SS, dry, bottom connection 760 SS, liquid filled, bottom connect
PRESSURE RANGES 30 inH2O vac -30 inH2O to 0 inH2O 30/30 -30 inHg to 0 to 30 psi 60 0 psi to 60 psi 2000 0 psi to 2,000 psi
60 inH2O vac -60 inH2O to 0 inH2O 30/60 -30 inHg to 0 to 60 psi 100 0 psi to 100 psi 3000 0 psi to 3,000 psi
60/60 inH2O -60 inH2O to 60 inH2O 30/100 -30 inHg to 0 to 100 psi 160 0 psi to 160 psi 5000 0 psi to 5,000 psi
60 inH2O 0 inH2O to 60 inH2O 30/160 -30 inHg to 0 to 160 psi 200 0 psi to 200 psi 6000 0 psi to 6,000 psi
100 inH2O 0 inH2O to 100 inH2O 30/200 -30 inHg to 0 to 200 psi 300 0 psi to 300 psi 10000 0 psi to 10,000 psi
160 inH2O 0 inH2O to 160 inH2O 30/300 -30 inHg to 0 to 300 psi 400 0 psi to 400 psi 15000 0 psi to 15,000 psi
200 inH2O 0 inH2O to 200 inH2O 5 0 psi to 5 psi 600 o psi to 600 psi 20000 0 psi to 20,000 psi
300 inH2O 0 inH2O to 300 inH2O 10 0 psi to 10 psi 800 0 psi to 800 psi 30000 0 psi to 30,000 psi
30vac -30 inHg to 0 inHg vacuum 15 0 psi to 15 psi 1000 0 psi to 1,000 psi 40000 0 psi to 40,000 psi
30/15 -30 inHg to 0 to 15 psi 30 0 psi to 30 psi 1500 0 psi to 1,500 psi 60000 0 psi to 60,000 psi
SCALE OPTIONS H2O inH2O single scale psi psi single scale psi/kg/cm2 psi/kg/cm2 dual scale psi/bar psi/bar dual scale
CONNECTION SIZES 1/4 1/4″ NPT 1/2 1/2″ NPT 9/16-18 9/16-18 UNF 3B (above 30,000 psi standard)
OPTIONS SGL Safety Glass Lens LM Laser Marking
GL Glass Lens ST Stainless Steel Tagging
MIP Maximum Indicating Pointer BP3 Brass Press Fit Orifice 0.3 mm
BPMR Black Panel Mount Ring BT3 Brass Threaded Orifice 0.3 mm
CPMR Chrome Panel Mount Ring ST8 316SS Threaded Orifice 0.8 mm
OS Overlap Stop

   Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
NOTE: Refer to 600/700 Series Options & Accessories for availability by model number.

ormation.

SERIES SPECIFICATIONS
Pressure ranges 600/700 Series (all) Vacuum and compound ranges through 0 psi to 15,000 psi
Accuracy 600/700 Series (all) ±0.5% full scale
Temperature ranges* 45-640 Media -4 °F to 150 °F (-20 °C to 65 °C) Ambient -40 °F to 150 °F (-40 °C to 65 °C)
45-740 Media -40 °F to 212 °F (-40 °C to 100 °C) 500 °F (260 °C) Maximum for short term/intermittent Ambient -40 °F to 150 °F (-40 °C to 65 °C)
45-660 Media -4 °F to 150 °F (-20 °C to 65 °C) Glycerin fill -40 °F to 150 °F (-40 °C to 65 °C) Special fill Ambient -4 °F to 150 °F (-20 °C to 65 °C) Glycerin fill -40 °F to 150 °F (-40 °C to 65 °C) Special fill
45-760 Media -4 °F to 212 °F (-20 °C to 100 °C) Glycerin fill -40 °F to 212 °F (-40 °C to 100 °C) Special fill 250 °F (130 °C) Maximum for short term/intermittent Ambient -4 °F to 150 °F (-20 °C to 65 °C) Glycerin fill -40 °F to 150 °F (-40 °C to 65 °C) Special fill
Case 600/700 Series (all) Turret style black Polypropylene case Solid front, safety case with blow-out back
Bayonet ring 600/700 Series (all) Threaded black PBT
Lens 600/700 Series (all) Acrylic
Measuring element 45-640, 45-660 (≤ 600 psi) Copper alloy C-Type Bourdon tube
45-740, 45-760 (≤ 600 psi) 316 stainless steel C-Type Bourdon tube
600/700 Series (all) (>600 psi) 316 stainless steel coiled safety Bourdon tube
Connection 45-640, 45-660 1/4" NPT, brass
45-740, 45-760 1/4" NPT or 1/2" NPT, 316 stainless steel
Movement 45-640, 45-660 Brass and nickel-silver with highly polished bearing surfaces. An internal zero stop is standard.
45-740, 45-760 Stainless steel with highly polished bearing surfaces. An internal zero stop is standard.
Pointer 600/700 Series (all) Balanced micro-adjustable aluminum, black finish
Dial 600/700 Series (all) Aluminum, white background with black scale. UV resistant.
Fill liquid** 45-660, 45-760 Glycerin
* For every 18 °F (10 °C) shift in temperature from which the gauge is calibrated, the user can experience up to ±0.4% additional error. ** See gauge fill options.
  1. Working Pressure Limitations
    1. Dynamic Pressure The working pressure should be limited to 60% of the dial range. Max. 0.9x full scale.
    2. Static Pressure The working pressure, where no sharp fluctuations occur, should be limited to 90% of the dial range. Max. 1x full scale.
    3. Short term max. 1.5x full scale (<10,000 psi).
