Bleed-Hard Seat & Soft Tip Needle Valves-NOSHOK 800/850 Series

Part Number: 800-850 Valve Series
Online Prices

NOSHOK List price: Original price was: $125.00.Current price is: $54.00.

95 in stock

aval to ship today
Warranty: 3 YR
Need To Order in Bulk ?

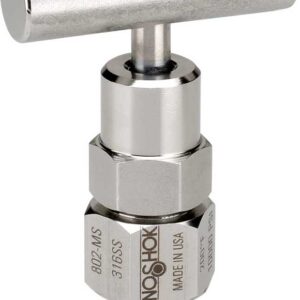

800/850 Series Bleed, Hard Seat & Soft Tip Needle Valves



  • Bleed valves provide a convenient means to relieve process pressures
    trapped between a shut off valve and the instrument
  • Uses the same bonnet assemblies of the 100/150 Series mini valves with
    an integrated single threaded body for insertion in vent port
  • Soft tip valves feature a patented Delrin® non-rotating soft tip stem, and
    a back-up metal-to-metal seal (U.S. Patent 6,820,857)
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and
    reliability 10,000 psi hard seat pressure rating @ 200 °F
  • Available in zinc-nickel plated steel, electropolished stainless steel, and brass
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect
    from corrosion and galling; PTFE or Grafoil® (800 Series only) packing optional
  • All stems are 316 stainless steel
  • All stem threads are rolled for strength and ease of operation
  • 0.159″ bleed port
  • Patented body-to-bonnet, metal-to-metal seal is designed to significantly
    increase the pressure range of the valve (U.S. Patent 7,758,014)
Dimensions Options Print Catalog Page



ORDERING INFORMATION

SERIES 8 800/850 Series, hard seat/soft tip
CONNECTION SIZES 02 Hard seat 1/4″ NPT 52 Delrin® soft tip 1/4″ NPT
04 Hard seat 1/2″ NPT 54 Delrin® soft tip 1/2″ NPT
VALVE TYPES MC Male, Steel MS Male, Stainless Steel MB Male, Brass

    Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

To meet all of your specific application requirements, the following additional options are available for these needle valves. To order all or any of these options, simply add them to the part number as shown in the diagram below.
NOTE 1: The example shown includes ALL possible additional options. Please include ONLY the options required for your application when building your part number. (EXAMPLE: 802-MC-EM1)
NOTE 2: When a packing option is selected, an o-ring option is NOT available.

ORDERING INFORMATION – Additional Options

PACKINGS P1 PTFE P2 Grafoil®**
STEM TIPS T1 Non-rotating (316 stainless) T4 PEEK*** T7 Ball (ceramic)**
T2 Delrin® (Acetal )*** T5 Ball (440C stainless)** T8 Ball (Monel)**
T3 PCTFE*** T6 Ball (carbide)**
O-RINGS* EM1 EPDM KZ1 FFKM (Kalrez® 3018 or equivalent) NB1 NBR
HANDLES HL2 2-1/2″ “T”** HL4 1-3/8″ Phenolic** HL5 1-3/4″ Phenolic**
HL3 1″ Round knurled

    Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

† If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the “Pressure vs Temperature: Packing Style with Compatible Fluid” chart.

*   Other o-ring materials available on request.
**  For 800 Series only.
*** For 850 Series only.

Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are 1″ round knurled handles (HL3) on brass, and 1-3/8″ mini “T” handles (HL7) on stainless steel and steel.

The handle material will always match the material of the valve, unless otherwise specified. For example, the mini “T” handle (HL7) on the 802-MC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.
