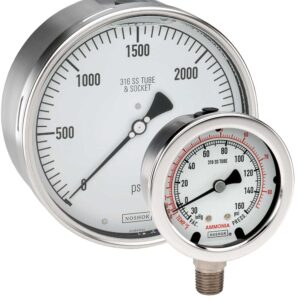

Noshok 25-901-160-psi- bar 1/4" NPT Bottom Conn 2.5" SS Liquid Filled Pressure Gauges NOSHOK List price: Original price was: $63.21.Current price is: $25.50.
Back to products
Precision Test Gauges- Noshok 800 series NOSHOK List price: Original price was: $1,077.50.Current price is: $870.00.
Click to enlarge

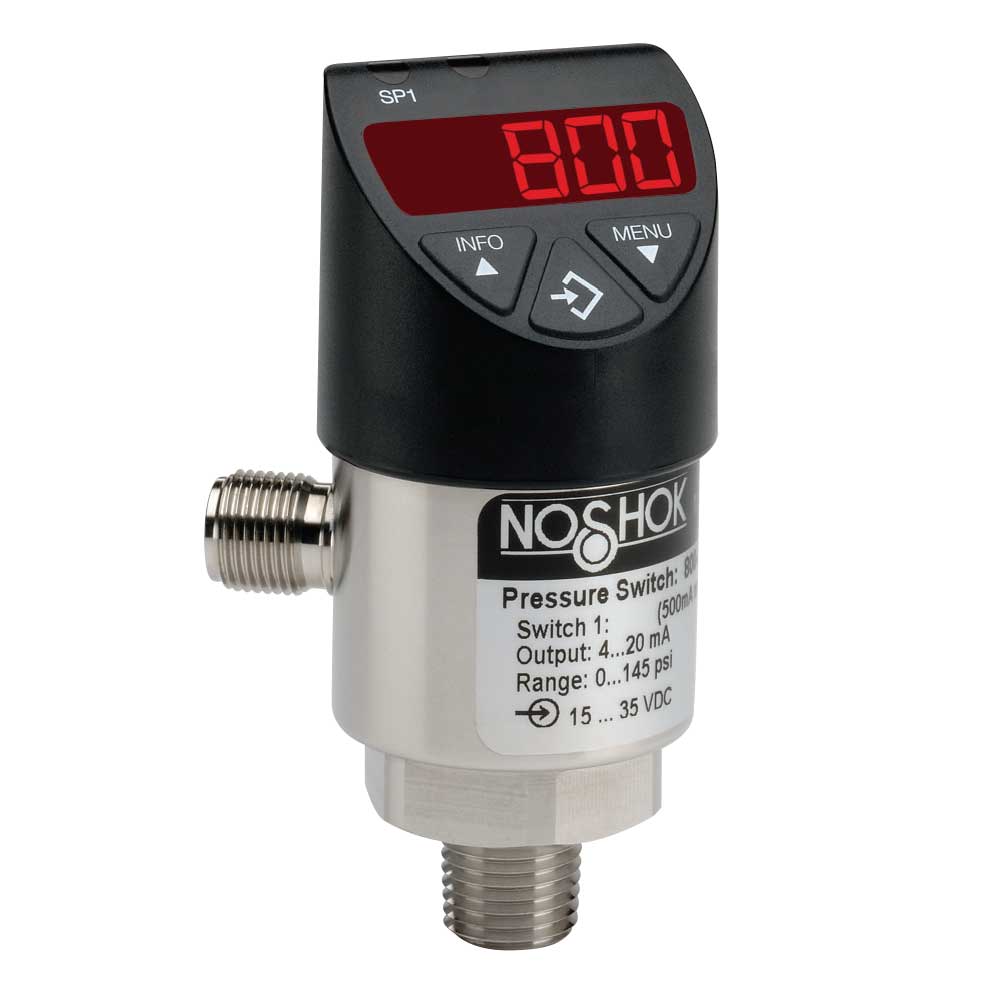

Noshok 800 Series Electronic Indicating Pressure Transmitter/Switch Series

Part Number: 800 SWITCH SERIES
Online Prices

NOSHOK List price: $499.99

Warranty: 3 YR
Add to wishlist
Compare

800 Series Electronic Indicating Pressure Transmitter/Switch

ASK ABOUT PRESSURE RANGES THAT ARE NOT LISTED

800 Series Electronic Indicating Pressure Transmitter/Switch

3 Year Warranty



  • Compound and standard ranges from 0 psig to 10 psig through
    0 psig to 7,500 psig
  • 316L Stainless steel wetted parts
  • Current and voltage outputs available
  • 7 different output configurations available
  • Display and electrical connection can be rotated independently
  • CE compliant to suppress RFI, EMI and ESD
  • RoHS compliant



Dimensions Tech Manuals  Print Catalog Page




ORDERING INFORMATION

SERIES        800 304 Stainless steel housing
SWITCH FUNCTIONS 1 2 N.O. or 2 N.C. (PNP or NPN) 4 2 N.O. or N.C. (PNP or NPN) with 4 mA to
20 mA analog output*		 7 2 N.O. or N.C. switch (PNP/NPN) with 4 mA to 20 mA/0 Vdc to 10 Vdc 3-wire output*, **
2 1 N.O. or N.C. (PNP or NPN) with 4 mA to
20 mA 3-wire analog output		 5 2 N.O. or N.C. switch (PNP/NPN) with 0 Vdc
to 10 Vdc 3-wire output*
3 1 N.O. or N.C. (PNP or NPN) with 0 Vdc to
10 Vdc 3-wire output		 6 1 N.O. or N.C. switch (PNP/NPN) with 4 mA to 20 mA/0 Vdc to 10 Vdc 3-wire output 2**
PROCESS CONNECTIONS 2 1/4″ NPT male 10 G 1/4 B male 45 SAE J1926-3:7/16-20 (Non-Ajustable)
8 1/2″ NPT male 11 G 1/2 B male
ADJUSTABLE RANGES †
(Max. working pressure)		 14.5vac -14.5 psig to 0 psig 30 0 psig to 30 psig 5000 0 psig to 5,0000 psig
14.5/15 -14.5 psig to 15 psig 50 0 psig to 50 psig 7500 0 psig to 7,500 psig
14.5/30 -14.5 psig to 30 psig 100 0 psig to 100 psig 10A 0 psia to 10 psia
14.5/50 -14.5 psig to 50 psig 160 0 psig to 160 psig 15A 0 psia to 15 psia
14.5/100 -14.5 psig to 100 psig 200 0 psig to 200 psig 25A 0 psia to 25 psia
14.5/160 -14.5 psig to 160 psig 300 0 psig to 300 psig 30A 0 psia to 30 psia
14.5/200 -14.5 psig to 200 psig 500 0 psig to 500 psig 50A 0 psia to 50 psia
14.5/300 -14.5 psig to 300 psig 1000 0 psig to 1,000 psig 100A 0 psia to 100 psia
10 -0 psig to 10 psig 1500 0 psig to 1,500 psig 160A 0 psia to 160 psia
15 0 psig to 15 psig 2000 0 psig to 2,000 psig 200A 0 psia to 200 psia
25 0 psig to 25 psig 3000 0 psig to 3,000 psig 300A 0 psia to 300 psia
ELECTRICAL CONNECTIONS 2 M12 x 1 (4-pin) 3 M12 x 1 (5-pin), 2 switch and analog output
OPTIONS ST8 Threaded Orifice

   * Available only with a M12 x 1 (5-pin) connector
   ** Can switch between 4 mA to 20 mA / 0 Vdc to 10 Vdc

WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
