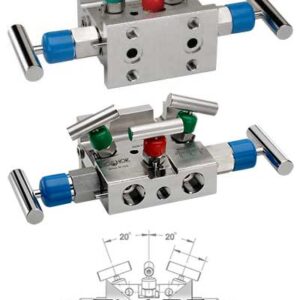

Noshok 5530 Series Soft Seat/Tip (0.375" Orif 5-Valve Natural Gas Manifold Valves
NOSHOK List price: $435.75
NOSHOK 29-02S-S-04S High Volumetric Displacement Welded Diaphragm Seal, 2,500 psi, 1/4 inch NPT, 316 Stainless Steel, 1/2 Inch NPT
NOSHOK List price: Original price was: $318.13.$238.50Current price is: $238.50.
Noshok 820/821 Series Digital Temperature Indicators
Online Prices
NOSHOK List price: $674.20

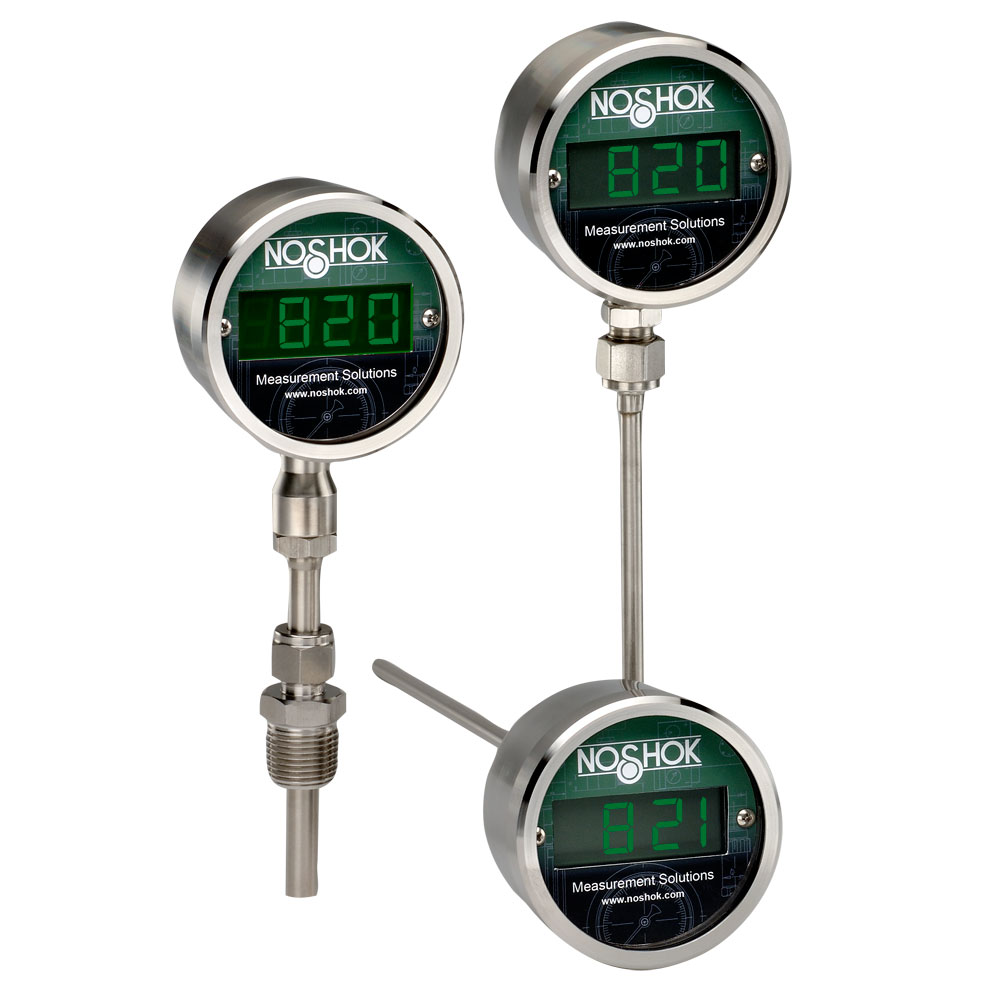

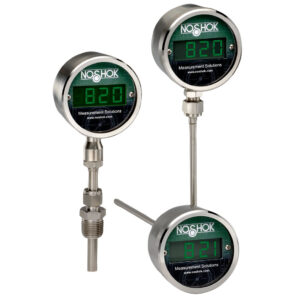

820/821 Series Digital Temperature Indicators
- Large 4-digit LED display
- Field re-programmable with optional PC interface module and software
- Software includes a security feature to prevent accidental re-programming
- 4 mA to 20 mA programmable linearized signal output
- Utilizes self-calibration feature for accurate and stable performance
- Optional fully programmable switch output, relay or transistor
- Utilizes PT100 Ω RTD Class A element for temperature sensing
- M12 x 1 (5-pin) plug or 36” integral cable electrical connection
- IP 65 / NEMA 4 rated environmental protection
- All 316 stainless steel construction
- Easy installation with various mounting configurations
Note: Thermowells are recommended for pressure, corrosive fluids and high velocity
applications.
ORDERING INFORMATION
| SERIES | 820 | Bottom connection | 821 | Back connection | ||||
| ACCURACY | 1 | ±0.25% full scale | 2 | ±0.125% full scale | ||||
| OUTPUT | 1 | 4 mA to 20 mA | ||||||
| BURNOUTS | U | Upscale | D | Downscale | ||||
| PROCESS CONNECTIONS | 0 | None | 8 | 1/2″ NPT Male | ||||
| 2 | 1/4″ NPT Male | 48 | 1/2″ NPT Male w/adjustable compression fitting | |||||
| TEMPERATURE RANGES | -50/120 | -50° to 120 °F | -50/400 | -50° to 400 °F | 32/200 | 32° to 200 °F | 32/400 | 32° to 400 °F |
| -50/300 | -50° to 300 °F | 32/120 | 32° to 120 °F | 32/300 | 32° to 300 °F | |||
| ELECTRICAL CONNECTIONS | 36 | Integral cable 36″ | 48 | M12 x 1 (5-pin) | ||||
| STEM LENGTHS | 025 | 2.5″ | 060 | 6″ | 120 | 12″ | 180 | 18″ |
| 040 | 4″ | 090 | 9″ | 150 | 15″ | 240 | 24″ | |
| STEM DIAMETERS | 2 | 1/4″ | 3 | 3/8″ | 4 | 1/2″ | 6 | 6 mm |
Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
