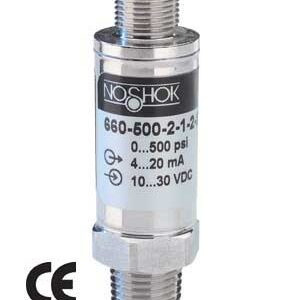

NOSHOK PT20 Series General Purpose Fixed Range Transmitters- REPLACING 300 SERIES

Part Number: PT20 Series
Online Prices

NOSHOK List price: Original price was: $181.62.Current price is: $159.99.

325 in stock

Avalable For immediate Delivery
Warranty: 3 YR
PT20 SERIES is REPLACING THE 300 OEM SERIES
Add to wishlist
Compare
SERIES PT20
PRESSURE
RANGES		 15psiv -15 psig to 0 psig 15psig 0 psig to 15 psig 1000psig 0 psig to 1,000 psig 15psia 0 psia to 15 psia
15psic -15 psig to 15 psig 30psig 0 psig to 30 psig 1500psig 0 psig to 1,500 psig 30psia 0 psia to 30 psia
30psic -15 psig to 30 psig 60psig 0 psig to 60 psig 2000psig 0 psig to 2,000 psig 60psia 0 psia to 60 psia
60psic -15 psig to 60 psig 100psig 0 psig to 100 psig 3000psig 0 psig to 3,000 psig 100psia 0 psia to 100 psia
100psic -15 psig to 100 psig 150psig 0 psig to 150 psig 5000psig 0 psig to 5,000 psig 150psia 0 psia to 150 psia
200psic -15 psig to 200 psig 200psig 0 psig to 200 psig 6000psig 0 psig to 6,000 psig 200psia 0 psia to 200 psia
300psic -15 psig to 300 psig 300psig 0 psig to 300 psig 7500psig 0 psig to 7,500 psig 300psia 0 psia to 300 psia
1psig 0 psig to 1 psig 500psig 0 psig to 500 psig 10000psig 0 psig to 10,000 psig
5psig 0 psig to 5 psig 750psig 0 psig to 750 psig 15000psig 0 psig to 15,000 psig
psiv = vacuum gauge pressure   psic = compound gauge pressure   psig = gauge pressure
psia = absolute pressure   Other ranges available upon request
ACCURACY 1 ±0.50% (of span, non-linearity, BFSL per IEC 61298-2 at reference conditions)
OUTPUT SIGNALS 1 4 mA to 20 mA, 2-wire 5 0 Vdc to 10 Vdc, 3-wire
2 0 Vdc to 5 Vdc, 3-wire 13 0.5 Vdc to 4.5 Vdc, 3-wire (ratiometric)
3 1 Vdc to 5 Vdc, 3-wire 31 0.5 Vdc to 4.5 Vdc, 3-wire (non-ratiometric)
PROCESS
CONNECTIONS		 1 1/8″ NPT male 8 1/2″ NPT 45 7/16-20 SAE J514 FIG 34B (Non-Adjustable)
2 1/4″ NPT male 10 G 1/4 B EN 837 83 G 1/2 B EN 834
ELECTRICAL
CONNECTIONS		 7 DIN EN 175301-803 Form C 17 DIN EN 175301-803 Form C w/ 3 ft. cable
8 DIN EN 175301-803 Form A 18 DIN EN 175301-803 Form A w/ 3 ft. cable
14 DIN EN 175301-803 Form A
w/ 1/2″ NPT female conduit		 25 M12 x 1 (4-pin)
OPTION ST8 Threaded Orifice (0.8 mm)



PECIFICATIONS
Output signals 4 mA to 20 mA, 2-wire; 0 Vdc to 5 Vdc, 3-wire; 1 Vdc to 5 Vdc, 3-wire; 0 Vdc to 10 Vdc, 3-wire; 0.5 to 4.5 Vdc, 3-wire; 0.5 to 4.5 Vdc ratiometric, 3-wire
Pressure ranges Gauge, compound, absolute and vacuum ranges from 1 psi to 15,000 psi
Accuracy* ±0.50% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions
Response time ≤4 ms (between 10% and 90% full scale)
Service life >100 million load cycles
Temperature ranges* Compensated: Media: Ambient: Storage: 32 °F to 176 °F (0 °C to 80 °C) 32 °F to 176 °F (0 °C to 80 °C) 32 °F to 176 °F (0 °C to 80 °C) -40 °F to 158 °F (-40 °C to 70 °C)
Power requirement* 8 Vdc to 30 Vdc: 14 Vdc to 30 Vdc: 4.5 Vdc to 5.5 Vdc: 4 mA to 20 mA, 2-wire 0 Vdc to 5 Vdc, 3-wire 1 Vdc to 5 Vdc, 3-wire 0.5 Vdc to 4.5 Vdc, 3-wire 0 Vdc to 10 Vdc, 3-wire 0.5 Vdc to 4.5 Vdc ratiometric, 3-wire
Proof pressure <7,500 psi: ≥7,500 psi: 2 times full scale 1.5 times full scale
Burst pressure <7,500 psi: ≥7,500 psi: 3 times full scale 2 times full scale
Measuring element 316 Stainless Steel: 13-8PH Stainless Steel: Vacuum to 150 psi ≥150 psi
Process connection 316 Stainless Steel
Electical connection PA and PBT
Housing material 316 Stainless Steel
Environmental rating IP65: DIN EN 175301-803 Form A, DIN EN 175301-803 Form C IP67: M12 x 1 (4-pin)
Electromagnetic rating CE compliant to EMC norm EN 61326:2014/A1:1998 RFI, EMI and ESD protection
Electrical protection Reverse polarity, over-voltage and short circuit protection
Shock 500 g’s according to IEC 60068-2-27
Vibration 10 g’s according to IEC 60068-2-6
Weight Approximately 2.8 oz.
*See user manual for detailed specifications
