Multiport Soft Seat Needle Valves-NOSHOK

Part Number: 300 Series Multiport, Soft Seat Needle Valves
Online Prices

NOSHOK List price: Original price was: $179.50.Current price is: $90.00.

525 in stock

Avalable For immediate Delivery
Warranty: 3 YR
NEED TO PURCHASE IN BULK ?

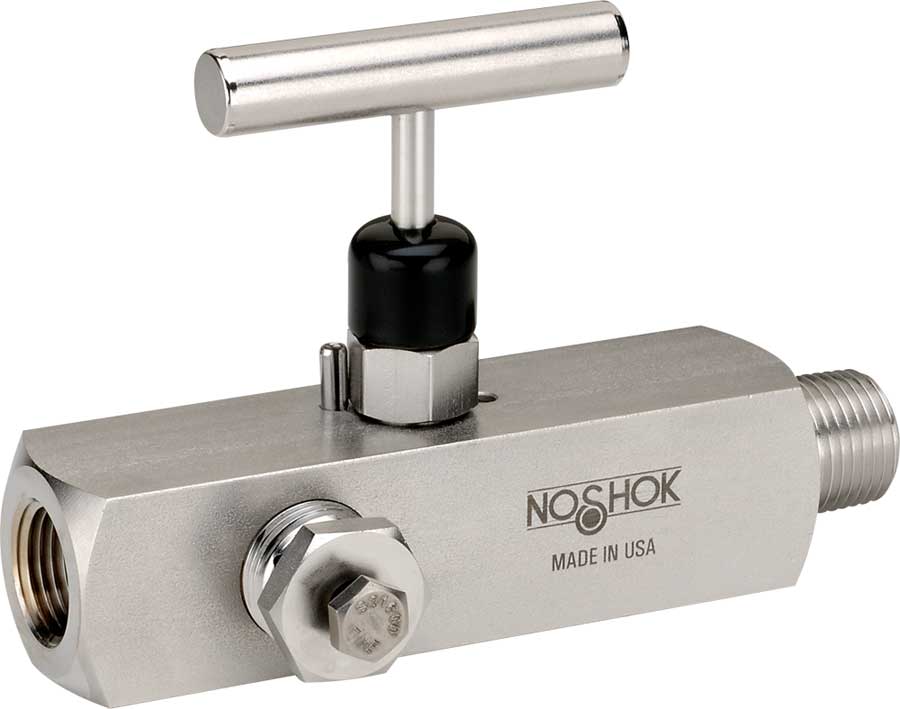

300 Series Multiport, Soft Seat Needle Valves



300 Series Multiport, Soft Seat Needle Valves

  • Multiport design reduces the number of gauge and other instrument
    connections to permanent piping installations, decreasing possible
    leak paths
  • Optional bleed plugs further allow pressure to be bled off without
    disturbing the permanent piping installation
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance
    and reliability
  • 6,000 psi pressure rating @ 200 °F
  • Replaceable Delrin® seat and straight through porting for bidirectional,
    high capacity flow and easy roddable cleaning
  • PCTFE or PEEK soft seat optional
  • Blow-out proof stem provides a secondary stem seal in the full
    open position
  • FKM o-ring seal and PTFE back-up ring below the stem threads to
    protect from corrosion and galling; PTFE packing optional
  • All stems are 316 stainless steel
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below
    the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust cap for bonnet and stem (non-packing)
Dimensions Options Print Catalog Page



ORDERING INFORMATION

SERIES 3 300 Series, soft seat
CONNECTION SIZES 04 1/2″ NPT 0604 3/4″ NPT male – 1/2″ NPT female
VALVE TYPES MFC Male-Female, Steel MFS Male-Female, Stainless Steel

    Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

To meet all of your specific application requirements, the following additional options are available for these needle valves. To order all or any of these options, simply add them to the part number as shown in the diagram below.
NOTE 1: The example shown includes ALL possible additional options. Please include ONLY the options required for your application when building your part number. (EXAMPLE: 304-MFC-HL5)
NOTE 2: When a packing option is selected, an o-ring option is NOT available.

ORDERING INFORMATION – Additional Options

SOFT SEATS PK1 PEEK KF1 PCTFE
PACKINGS P1 PTFE
STEM TIPS T1 Non-rotating (316 stainless)
O-RINGS* EM1 EPDM KZ1 FFKM (Kalrez® 3018 or equivalent) NB1 NBR
PANEL MOUNTINGS PM1 Panel mount (1 nut) PM2 Panel mount (2 nuts)
HANDLES HL4 1-3/8″ Phenolic HL5 1-3/4″ Phenolic

    Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

* Other o-ring materials available on request.
† The plug material will always match the material of the valve.

NOTE: Plugs and bleed plugs are available and can be ordered separately.

Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are “T” handles (HL2).

The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 304-MFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special
application requests.
