NOSHOK Submersible Level Transmitters-Small Diameter Noshok 611 Series
Online Prices
NOSHOK List price: Original price was: $1,551.19.$1,240.00Current price is: $1,240.00.
Noshok 611 Series Small Diameter Submersible Level Transmitters
ask for more pressure ranges
611 Series Small Diameter Submersible Level Transmitters
ORDERING INFORMATION
| SERIES | 611 | 611H | 318 LN/Hastelloy C-276 | |||||
| PRESSURE RANGES | 50 inH2O | 0 inH2O to 50 inH2O | 5 | 0 psig to 5 psig (11.5 ftH2O) | 50 | 0 psig to 50 psig (115 ftH2O) | 100A | 0 psia to 100 psia |
| 100 inH2O | 0 inH2O to 100 inH2O | 10 | 0 psig to 10 psig (23.1 ftH2O) | 100 | 0 psig to 100 psig (230.8 ftH2O) | |||
| 150 inH2O | 0 inH2O to 150 inH2O | 15 | 0 psig to 15 psig (34.6 ftH2O) | 25A | 0 psiq to 25 psia | |||
| 250 inH2O | 0 inH2O to 250 inH2O | 25 | 0 psig to 25 psig (57.7 ftH2O) | 50A | 0 psia to 50 psia | |||
| psig = gauge pressure psia = absolute pressure | Other ranges and measuring units available on request | |||||||
| ACCURACIES | 1 | ± 1.0 of span | 2 | ± 0.5% of span | ||||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 48 | 0.1 Vdc to 2.5 Vdc, 3 wire** | ||||
| 43 | 4 mA to 20 mA, 2-wire and HART® signal | 49 | 0.1 Vdc to 2.5 Vdc x 2 (pressure and temperature) *, ** | |||||
| 47 | 4 mA to 20 mA x 2 (pressure and temperature)* | |||||||
| PROCESS CONNECTIONS |
N | Nosecone | W | Weighted nosecone | ||||
| ELECTRICAL CONNECTIONS |
XX | Standard polyurethane (PUR) cable | 62-XX | Polyurethane (PUR) cable with 1/2″ NPT conduit connection | ||||

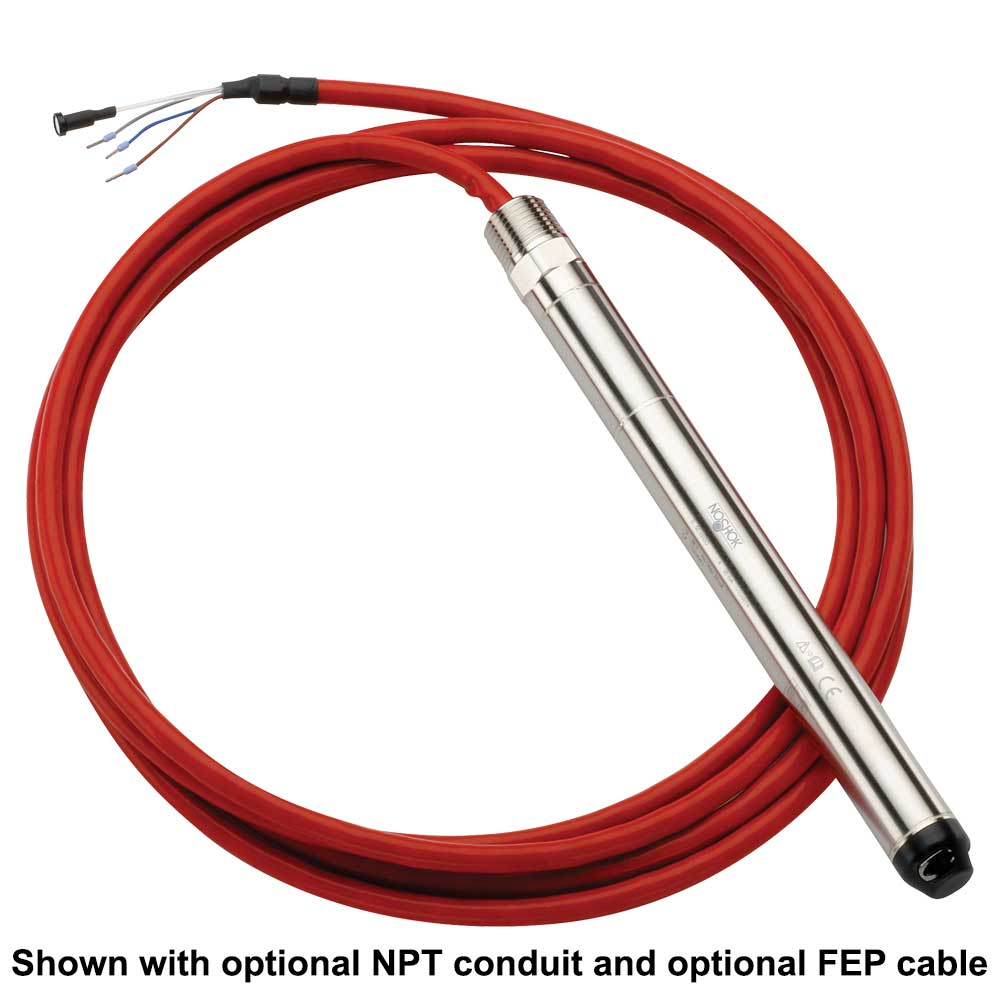

| 38-XX | Optional FEP cable | 63-XX | FEP cable with 1/2″ NPT conduit connection | |||||
| NOTE: XX = length of cable in feet | ||||||||
| OPTIONS | CBC | Cable Clamp | LP | Lightning Protection | JB | Cable Junction Box (NEMA 4X) | HT | Increased media temperature (-40 °F to 176 °F) |
Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
* Temperature measurement is based on the media temperature range
** Low power is optimized for battery operation
WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Hydrostatic level measurement for use in applications including bore holes and wells with small diameters (outer diameter 0.87″)
- Low power output signals for battery-powered applications, and optional temperature output available
- 5:1 turndown using optional HART® signal
- 316 Stainless Steel, PVDF and polyurethane wetted parts
- CE compliant to suppress RFI, EMI and ESD
- Certifications pending:
- ATEX
- CSA
- IECex
