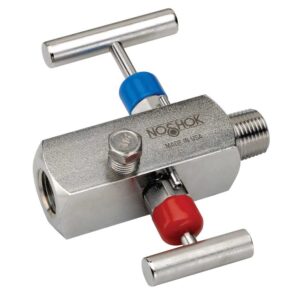

Noshok 204-MFS-EM1-PM1-HL1 1/2 NPT, Male x Female, 316 SS, EPDM O-Ring, Panel Mount, Mini T Handle, Hard Seat Multiport Valve
NOSHOK List price: Original price was: $348.90.$177.50Current price is: $177.50.
NOSHOK type 10 Standard & Elevated Pressure,2000 PSI Bolted, Replaceable Diaphragm Seals-Noshok
Date modified: May 07, 2023
Online Prices
NOSHOK List price: $140.20

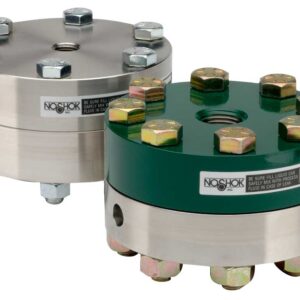

Noshok type 10 Standard & Elevated Pressure,2000 PSI Bolted, Replaceable Diaphragm Seals
- Designed to isolate the pressure measuring instrument from high temperatures, or corrosive or viscous process media
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Utilizes a replaceable diaphragm clamped between the flanged metal housings with an o-ring seal to create a leak-free union
- Process connection sizes from 1/4″ NPT through 1-1/2″ NPT
- Flushing port connection is an available option that allows the wetted areas of the seal to be cleaned, or the process vented without removing the unit from the line
- Consider instrument size, pressure range, media composition, ambient and operating temperature, and maximum working pressure when selecting
- Capillaries and cooling elements are available for elevated process temperatures, see options & accessories below
- Fill fluid must be compatible with process media; i.e. Glycerin may become volatile in conjunction with a strong oxidizing agent such as chlorine, forms of oxygen or peroxide and nitric acids
- f you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
TYPES 10 (2,000 psi) 10H (5,000 psi) INSTRUMENT CONNECTION SIZES 02 1/4″ NPT 04 1/2″ NPT UPPER HOUSING MATERIALS C Carbon steel S 316 Stainless steel DIAPHRAGM MATERIALS A Tantalum N Inconel 600 U Titanium grade 4 H Hastelloy C-276 S 316 Stainless steel ** V FKM *, *** M Monel 400 T PTFE *, † O-RING MATERIALS B NBR T PTFE1 V FKM PROCESS CONNECTION SIZES 02 1/4″ NPT 06 3/4″ NPT 10 1-1/4″ NPT 04 1/2″ NPT 08 1″ NPT 12 1-1/2″ NPT (ASME and DIN flanges available upon request) LOWER HOUSING MATERIALS C Carbon steel M Monel 400 S 316 Stainless steel H Hastelloy C-276 N Inconel 600 U Titanium FLUSHING CONNECTIONS 1F 1/8″ NPT 2F 1/4″ NPT * Not available on 10H
** NBR o-rings standard with 316SS diaphragm
*** FKM o-rings standard with FKM diaphragm
† PTFE o-rings standard with all other diaphragmsOptions & Accessories
Description
Noshok type 10 Standard & Elevated Pressure,2000 PSI Bolted, Replaceable Diaphragm Seals
- Designed to isolate the pressure measuring instrument from high temperatures, or corrosive or viscous process media
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Utilizes a replaceable diaphragm clamped between the flanged metal housings with an o-ring seal to create a leak-free union
- Process connection sizes from 1/4″ NPT through 1-1/2″ NPT
- Flushing port connection is an available option that allows the wetted areas of the seal to be cleaned, or the process vented without removing the unit from the line
- Consider instrument size, pressure range, media composition, ambient and operating temperature, and maximum working pressure when selecting
- Capillaries and cooling elements are available for elevated process temperatures, see options & accessories below
- Fill fluid must be compatible with process media; i.e. Glycerin may become volatile in conjunction with a strong oxidizing agent such as chlorine, forms of oxygen or peroxide and nitric acids
- f you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
TYPES 10 (2,000 psi) 10H (5,000 psi) INSTRUMENT CONNECTION SIZES 02 1/4″ NPT 04 1/2″ NPT UPPER HOUSING MATERIALS C Carbon steel S 316 Stainless steel DIAPHRAGM MATERIALS A Tantalum N Inconel 600 U Titanium grade 4 H Hastelloy C-276 S 316 Stainless steel ** V FKM *, *** M Monel 400 T PTFE *, † O-RING MATERIALS B NBR T PTFE1 V FKM PROCESS CONNECTION SIZES 02 1/4″ NPT 06 3/4″ NPT 10 1-1/4″ NPT 04 1/2″ NPT 08 1″ NPT 12 1-1/2″ NPT (ASME and DIN flanges available upon request) LOWER HOUSING MATERIALS C Carbon steel M Monel 400 S 316 Stainless steel H Hastelloy C-276 N Inconel 600 U Titanium FLUSHING CONNECTIONS 1F 1/8″ NPT 2F 1/4″ NPT * Not available on 10H
** NBR o-rings standard with 316SS diaphragm
*** FKM o-rings standard with FKM diaphragm
† PTFE o-rings standard with all other diaphragmsOptions & Accessories
