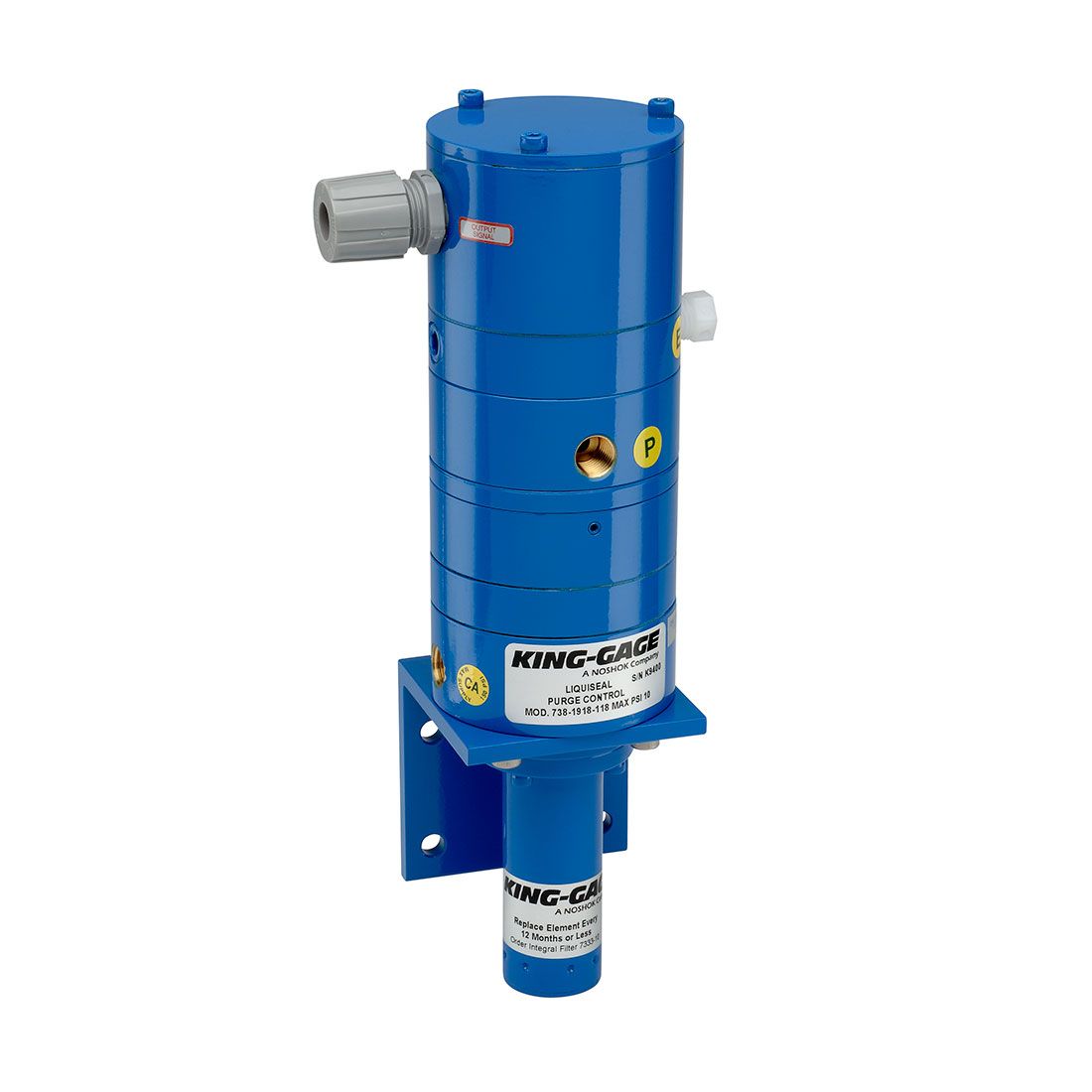

King gage 738-1918-138-Differential Pressure Liqui Seal Purge Control Level Transmitter, 1/4 NPT Conn, 0 to 30 psid Range, Painted
List Price Original price was: $1,795.62.$1,325.60Current price is: $1,325.60.
Available on backorder
Differential Pressure LiquiSeal Purge Control Level Transmitter, 1/4 NPT Conn, 0 to 30 psid Range, Painted
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
| SERIES | 738 | |||||
| FITINGS | 1918 | None, 1/4” NPT | 3918 | Polyflo; (1) 3/8” tube, (1) 1/4″ tube x 1/4″ NPT |
4918 | Swagelok; (1) 3/8″ tube, (1) 1/4″ tube x 1/4″ NPT (compatible with Copper or Poly tubing) |
| MILLIAMP OUTPUTS | 108 | 4 mAdc to 20 mAdc 0-5 psid | 128 | 4 mAdc to 20 mAdc 0-15 psid | 148 | 4 mAdc to 20 mAdc 0-50 psid |
| 118 | 4 mAdc to 20 mAdc 0-10 psid | 138 | 4 mAdc to 20 mAdc 0-30 psid | 168 | 4 mAdc to 20 mAdc 0-2 psid | |
NOTE: Unit includes (1) water-resistant Hubbell cord grip.
| Output signal | 4 mAdc to 20 mAdc (milliamperes) | |
| Accuracy | 0-5 psid trans./control 0-10 psid trans./control 0-15 psid trans./control 0-30 psid trans./control 0-50 psid trans./control |
± 0.34% full scale ± 0.27% full scale ± 0.24% full scale ± 0.22% full scale ± 0.21% full scale |
| Repeatability | ±0.20% of calibrated span | |
| Temperature range | 0 °F to 120 °F/-16 °C to 54 °C | |
| Maximum pressure | 300% over-range | |
| Burst pressure | 200 psig | |
| Power requirement* | 14 Vdc to 40 Vdc | |
| Compressed air requirement | 35 psig to 150 psig supply pressure at control inlet. (Minimum supply pressure should be at least 20 psig greater than anticipated maximum liquid head pressure.) | |
| Maximum depth measurement | 1,937 inH2O(49.0 m) | |
| DP Purge control | Unit incorporates differential air flow regulator with flow control orifice. Fixed differential set to nominal 10 psid. Output is 1:1 pneumatic pressure (hydrostatic force equivalent). Includes an integral differential pressure (D/P) transmitter converting pneumatic pressure into 4 mAdc to 20 mAdc electronic output. Ranges available: 0 psid to 5 psid, 0 psid to 10 psid to 30 psid, 0 psid to 50 psid, | |
| Flow rate (air purge) | Nominal 1 cfh (cubic feet per hour) at specified differential. Maximum air consumption under 5 cfh. | |
| Materials of construction | Machined brass body with acrylic semi-gloss enamel finish; integral filter element is aluminum with acrylic semi-gloss enamel finish. | |
Description
Differential Pressure LiquiSeal Purge Control Level Transmitter, 1/4 NPT Conn, 0 to 30 psid Range, Painted
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
| SERIES | 738 | |||||
| FITINGS | 1918 | None, 1/4” NPT | 3918 | Polyflo; (1) 3/8” tube, (1) 1/4″ tube x 1/4″ NPT |
4918 | Swagelok; (1) 3/8″ tube, (1) 1/4″ tube x 1/4″ NPT (compatible with Copper or Poly tubing) |
| MILLIAMP OUTPUTS | 108 | 4 mAdc to 20 mAdc 0-5 psid | 128 | 4 mAdc to 20 mAdc 0-15 psid | 148 | 4 mAdc to 20 mAdc 0-50 psid |
| 118 | 4 mAdc to 20 mAdc 0-10 psid | 138 | 4 mAdc to 20 mAdc 0-30 psid | 168 | 4 mAdc to 20 mAdc 0-2 psid | |
NOTE: Unit includes (1) water-resistant Hubbell cord grip.
