NOSHOK 615-15000-1-1-2-8 ---4-20 mA- is now PT30-15000psig-1-1-2-8
List Price Original price was: $373.20.$298.52Current price is: $298.52.
NOSHOK 25-510-300-psi-SPMC 1/4 NPT Back Conn 2.5 Stainless Steel Gauge, Glycerin Fill, SS Panel Mount Clamp
List Price Original price was: $206.31.$115.25Current price is: $115.25.
-44%

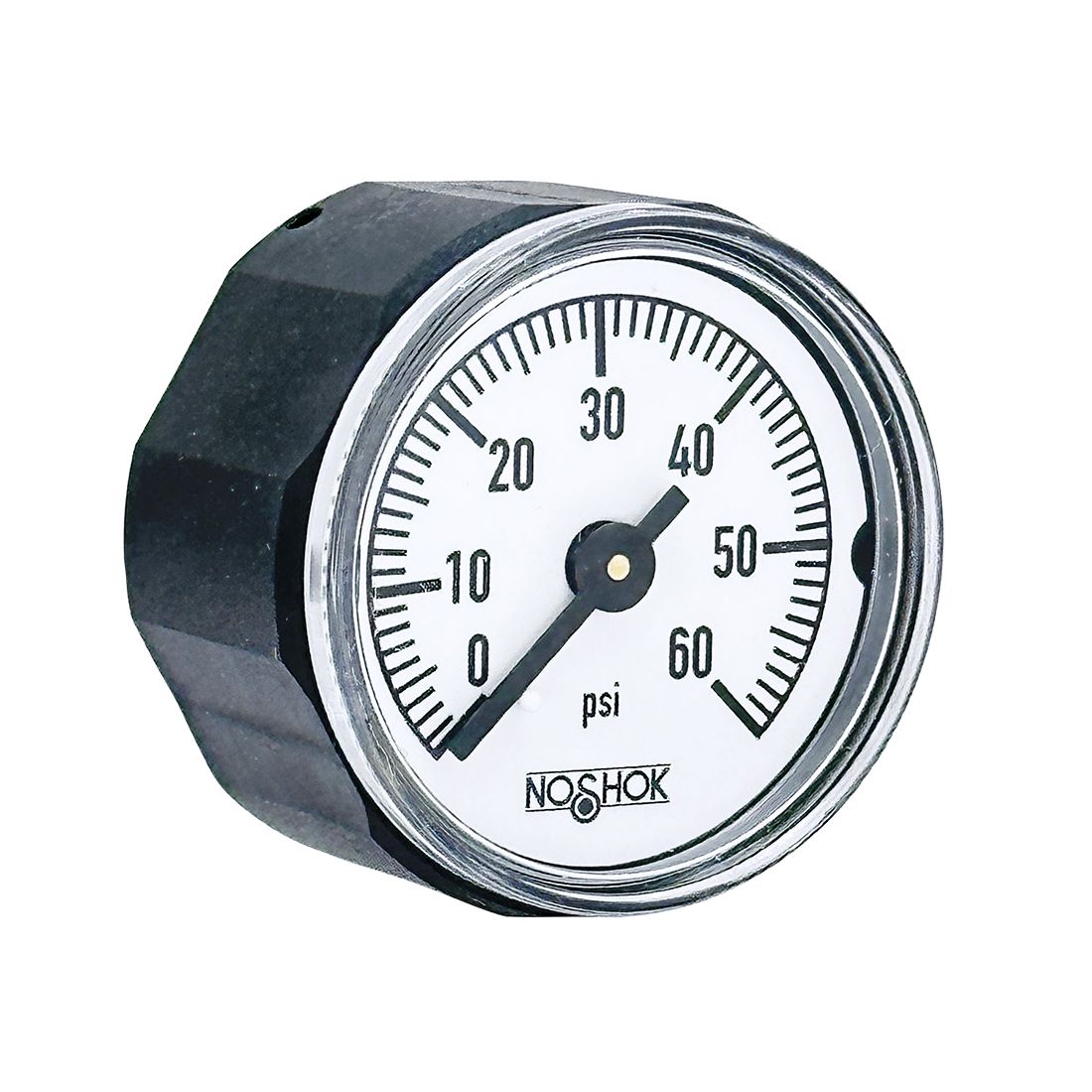

NOSHOK 10-110-60-psi DRY Pressure Gauge, 1″ ABS Case & Socket, Copper Alloy Bourdon Tube, 60 psi, 1/8 NPT Back Connection
List Price Original price was: $32.24.$17.99Current price is: $17.99.
143 in stock
- Pressure Gauge, 1″ ABS Case & Socket, Copper Alloy Bourdon Tube, 60 psi, 1/8 NPT Back Conn
-
100 Series ABS & Steel Case Dry Pressure Gauges
Download Literature
Water/
Wastewater
Measurement Solutions for the Oil & Gas IndustryIf you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
GAUGE SIZES 10 1″ 20 2″ 40 4″ 15 1-1/2″ 25 2-1/2″ CASE TYPES 100 ABS, bottom connection 120 Steel case panel mount 110 ABS, back connection 148 Square ABS, panel mount (2″ only) PRESSURE
RANGES30vac -30 inHg to 0 psi 30/300 -30 inHg to 0 to 300 psi 200 0 psi to 200 psi 2000 0 psi to 2,000 psi 30/15 -30 inHg to 0 to 15 psi 15 0 psi to 15 psi 300 0 psi to 300 psi 3000 0 psi to 3,000 psi 30/30 -30 inHg to 0 to 30 psi 30 0 psi to 30 psi 400 0 psi to 400 psi 5000 0 psi to 5,000 psi 30/60 -30 inHg to 0 to 60 psi 60 0 psi to 60 psi 600 0 psi to 600 psi 6000 0 psi to 6,000 psi 30/100 -30 inHg to 0 to 100 psi 100 0 psi to 100 psi 1000 0 psi to 1,000 psi 10000 0 psi to 10,000 psi 30/160 -30 inHg to 0 to 160 psi 160 0 psi to 160 psi 1500 0 psi to 1,500 psi 15000 0 psi to 15,000 psi 30/200 -30 inHg to 0 to 200 psi Other ranges available on request SCALE OPTIONS*** psi psi single scale psi/kPa psi/kPa dual scale psi/kg/cm2 psi/kg/cm2 dual scale psi/bar psi/bar dual scale CONNECTION
SIZES1/8 1/8″ NPT SST SAE J1926-3:7/16-20 Adjustable 1/4 1/4″ NPT OPTIONS PMC Panel Mount Clamp SSC Stainless Steel Case LL Polycarbonate Lens ST Stainless Steel Tagging SSB Polished Stainless Steel Bezel CRC Chrome Case GL Glass Lens* CPO Brass Sintered Orifice 20 Micron BLRF Black Rear Flange FAC Flat Sided ABS Case SG Safety Glass Lens* BP1 Brass Press Fit Orifice 0.1 mm BLFF Black Front Flange – ABS Case BCR Black Cover Ring** HL Homalite Lens* BP3 Brass Press Fit Orifice 0.3 mm CFF Chrome Front Flange – ABS Case SSCR Stainless Steel Cover Ring** SP Red Set Pointer** BP8 Brass Press Fit Orifice 0.8 mm SBFF Black Front Flange – Steel Case CCR Chrome Cover Ring** MIP Maximum Indicating Pointer SCFF Chrome Front Flange – Steel Case PCCR Polished Chrome Cover Ring** SDM Silicone Dampened Movement BSC Black Steel Case CAR Chrome Adapter Ring* LM Laser Marking NOTE: Cleaning for Oxygen Service (O2) is available only for dry or HL filled gauges. * A steel, stainless or chrome case & cover ring must be additionally ordered when lenses other than acrylic are utilized on all 100 Series models.
** Only 110 Models require a steel, stainless or chrome case & cover ring to be additionally ordered when utilizing a set pointer or cover ring. Please consult factory when a set pointer is to be utilized on a 120 Model.
*** Other ranges available on request
Description
- Pressure Gauge, 1″ ABS Case & Socket, Copper Alloy Bourdon Tube, 60 psi, 1/8 NPT Back Conn
-
100 Series ABS & Steel Case Dry Pressure Gauges
Download Literature
Water/
Wastewater Measurement Solutions for the Oil & Gas IndustryIf you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
GAUGE SIZES 10 1″ 20 2″ 40 4″ 15 1-1/2″ 25 2-1/2″ CASE TYPES 100 ABS, bottom connection 120 Steel case panel mount 110 ABS, back connection 148 Square ABS, panel mount (2″ only) PRESSURE
RANGES30vac -30 inHg to 0 psi 30/300 -30 inHg to 0 to 300 psi 200 0 psi to 200 psi 2000 0 psi to 2,000 psi 30/15 -30 inHg to 0 to 15 psi 15 0 psi to 15 psi 300 0 psi to 300 psi 3000 0 psi to 3,000 psi 30/30 -30 inHg to 0 to 30 psi 30 0 psi to 30 psi 400 0 psi to 400 psi 5000 0 psi to 5,000 psi 30/60 -30 inHg to 0 to 60 psi 60 0 psi to 60 psi 600 0 psi to 600 psi 6000 0 psi to 6,000 psi 30/100 -30 inHg to 0 to 100 psi 100 0 psi to 100 psi 1000 0 psi to 1,000 psi 10000 0 psi to 10,000 psi 30/160 -30 inHg to 0 to 160 psi 160 0 psi to 160 psi 1500 0 psi to 1,500 psi 15000 0 psi to 15,000 psi 30/200 -30 inHg to 0 to 200 psi Other ranges available on request SCALE OPTIONS*** psi psi single scale psi/kPa psi/kPa dual scale psi/kg/cm2 psi/kg/cm2 dual scale psi/bar psi/bar dual scale CONNECTION
SIZES1/8 1/8″ NPT SST SAE J1926-3:7/16-20 Adjustable 1/4 1/4″ NPT OPTIONS PMC Panel Mount Clamp SSC Stainless Steel Case LL Polycarbonate Lens ST Stainless Steel Tagging SSB Polished Stainless Steel Bezel CRC Chrome Case GL Glass Lens* CPO Brass Sintered Orifice 20 Micron BLRF Black Rear Flange FAC Flat Sided ABS Case SG Safety Glass Lens* BP1 Brass Press Fit Orifice 0.1 mm BLFF Black Front Flange – ABS Case BCR Black Cover Ring** HL Homalite Lens* BP3 Brass Press Fit Orifice 0.3 mm CFF Chrome Front Flange – ABS Case SSCR Stainless Steel Cover Ring** SP Red Set Pointer** BP8 Brass Press Fit Orifice 0.8 mm SBFF Black Front Flange – Steel Case CCR Chrome Cover Ring** MIP Maximum Indicating Pointer SCFF Chrome Front Flange – Steel Case PCCR Polished Chrome Cover Ring** SDM Silicone Dampened Movement BSC Black Steel Case CAR Chrome Adapter Ring* LM Laser Marking NOTE: Cleaning for Oxygen Service (O2) is available only for dry or HL filled gauges. * A steel, stainless or chrome case & cover ring must be additionally ordered when lenses other than acrylic are utilized on all 100 Series models.
** Only 110 Models require a steel, stainless or chrome case & cover ring to be additionally ordered when utilizing a set pointer or cover ring. Please consult factory when a set pointer is to be utilized on a 120 Model.
*** Other ranges available on request
