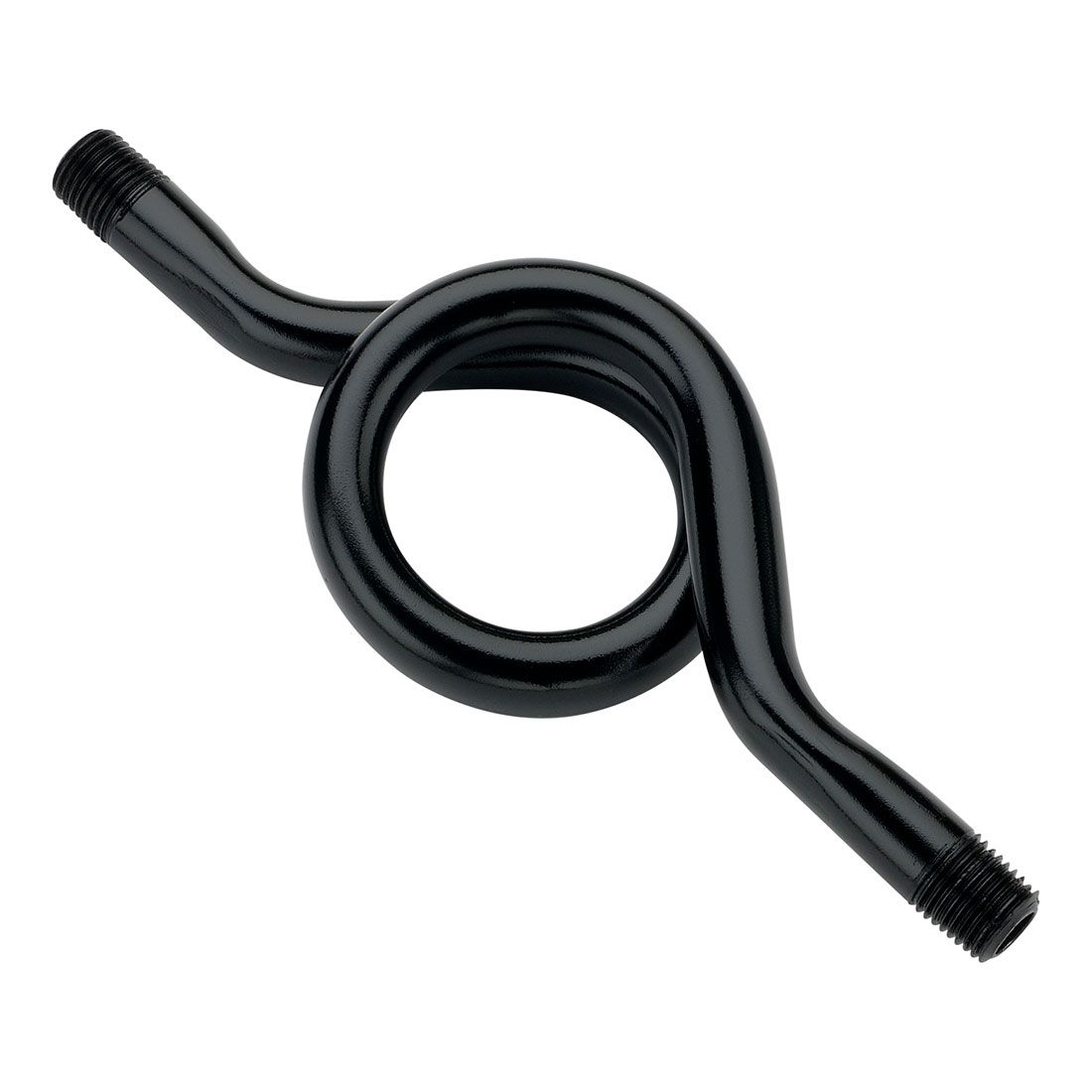

NOSHOK 1550 1/2 Steam Syphon 360 Degree Coil Style - Image 1
Click to enlarge

NOSHOK 1550 1/2 Steam Syphon 360 Degree Coil Style

SKU: 1550

Original price was: $79.52.Current price is: $59.85.

Available on backorder

PRICES NOW REFLECT IEEPA/Other Tariff Surcharges-
Warranty: 1 YR
NEED TO PURCHASE IN BULK ?
3-4 weeks
Add to wishlist
Add to compare

1550 1/2 Steam Syphon 360 Degree Coil Styl

  • Pigtail Steam Syphon, Welded Steel, Schedule 80, 360 Degree Coil Style, 1/2 NPT

gtail Steam Syphons
Product Specifications



PART NO. COIL STYLE SIZE MATERIAL
1225 90° 1/4″ NPT Welded Steel, Schedule 40
1250 1/2″ NPT Welded Steel, Schedule 80
2225 1/4″ NPT Welded 316SS, Schedule 40
2250 1/2″ NPT Seamless 316SS, Schedule 80
1025 180° 1/4″ NPT Welded Steel, Schedule 40
1050 1/2″ NPT Welded Steel, Schedule 80
2025 1/4″ NPT Welded 316SS, Schedule 40
2050 1/2″ NPT Seamless 316SS, Schedule 80
1425 270° 1/4″ NPT Welded Steel, Schedule 40
1450 1/2″ NPT Welded Steel, Schedule 80
2325 1/4″ NPT Welded 316SS, Schedule 40
2350 1/2″ NPT Seamless 316SS, Schedule 80
1525 360° 1/4″ NPT Welded Steel, Schedule 40
1550 1/2″ NPT Welded Steel, Schedule 80
2525 1/4″ NPT Welded 316SS, Schedule 40
2550 1/2″ NPT Seamless 316SS, Schedule 80







CONNECTION SIZE 1/4″ NPT 1/2″ NPT
90° A IN
MM		 4.25
107.95		 6.5
165.1
B IN
MM		 2.625
66.675		 4.0
101.6
180° A IN
MM		 5.5
139.7		 8.875
225.425
B IN
MM		 2.5
63.5		 4.0
101.6
270° A IN
MM		 4.5
114.3		 7.5
190.5
B IN
MM		 2.625
66.675		 4.0
101.6
360° A IN
MM		 7.25
184.15		 12.0
304.8
B IN
MM		 2.625
66.675		 4.125
104.775
