Noshok 300 series BACK CONNECTION 3 Inch DIAMETER 1/2" NPT 30-310-Instrument Type Bimetal Thermometers
NOSHOK List price: $72.48
Noshok 2200 Series Dual Display Digital Indicators
NOSHOK List price: $747.78
Noshok 1950 Series Compact Smart System Digital Indicators
Online Prices
NOSHOK List price: $352.15

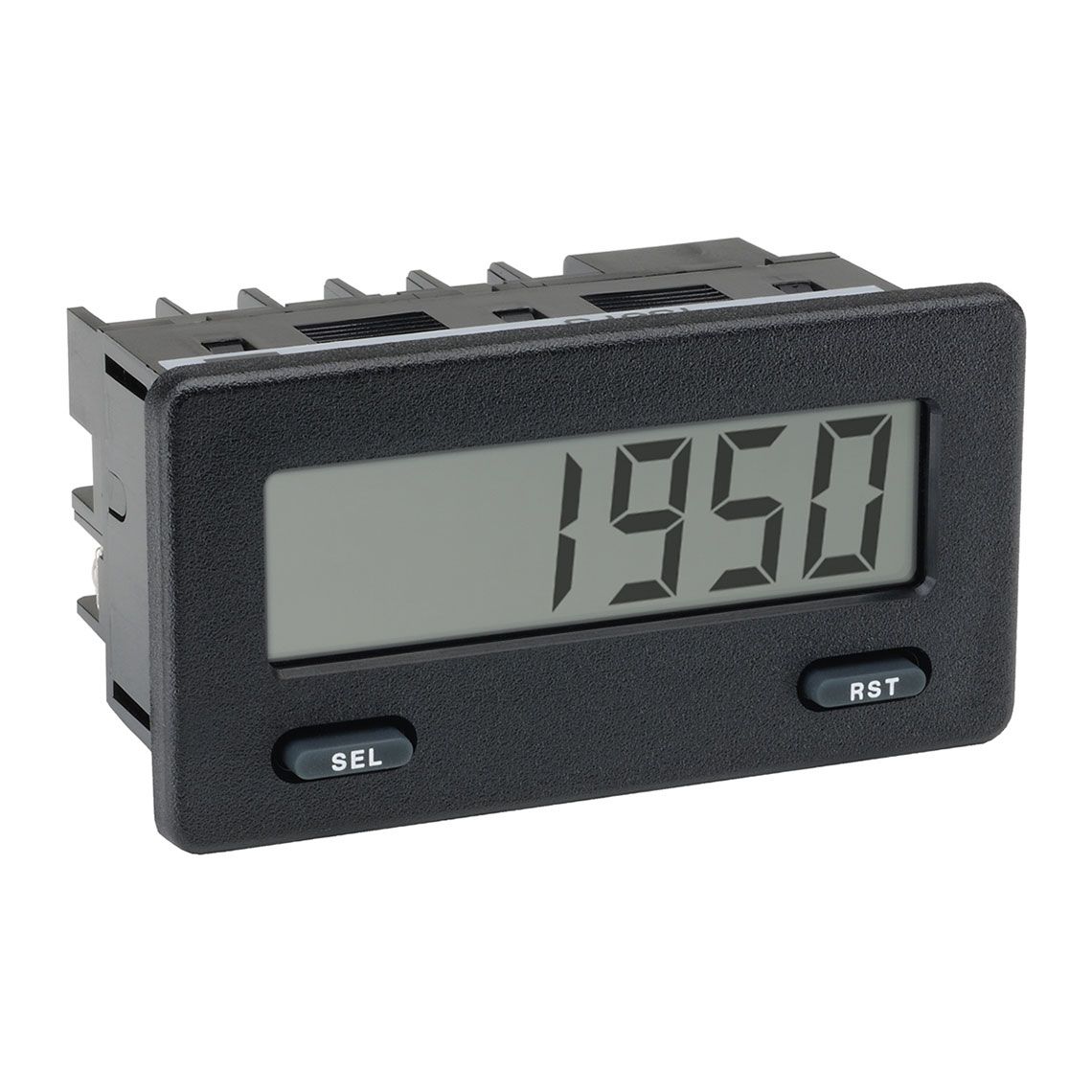

1950 Series Compact Smart System Digital Indicators
- Offers all the features of a full size panel meter in a compact digital display for
pressure, flow, level, force, and temperature measurement - 5 digit, 0.48″ LCD display with a span range of -9999 to 99999
- Reflective LCD display; or green backlighting optional
- Display is fully expandable to accomodate applications requiring relays,
dual sinking outputs, and serial communications by RS232 or RS485 - Fully scalable & field upgradable
- Simple programming through front panel
- Compact, lightweight, impact-resistant NEMA 4X, IP65 housing with sealed
front bezel - CE compliant to suppress RFI, EMI, and ESD
- Relay, communications and dual sinking output option cards available
ORDERING INFORMATION
| SERIES | 1950 | |||||
| INPUT SIGNALS | C | Current | V | Voltage | R | Resistance |
| DISPLAYS | 1 | Reflective | 2 | Backlight | ||
| OPTION CARDS | 0 | None | 2 | Dual sinking open collector | 7 | RS485 comm |
| 1 | Single relay | 6 | RS232 comm | |||
| OPTIONAL POWER SUPPLIES | PS1 | 115 Vac to 12 Vdc (400 mA) | PS2 | 115 Vac to 24 Vdc (200 mA) | PS3 | 85 – 250 Vac to 12 Vdc (400 mA) |
| OPTIONAL ENCLOSURES | ENC1 | Black painted steel | ENC2 | Off-White fiberglass |
Description
1950 Series Compact Smart System Digital Indicators
- Offers all the features of a full size panel meter in a compact digital display for
pressure, flow, level, force, and temperature measurement - 5 digit, 0.48″ LCD display with a span range of -9999 to 99999
- Reflective LCD display; or green backlighting optional
- Display is fully expandable to accomodate applications requiring relays,
dual sinking outputs, and serial communications by RS232 or RS485 - Fully scalable & field upgradable
- Simple programming through front panel
- Compact, lightweight, impact-resistant NEMA 4X, IP65 housing with sealed
front bezel - CE compliant to suppress RFI, EMI, and ESD
- Relay, communications and dual sinking output option cards available
ORDERING INFORMATION
| SERIES | 1950 | |||||
| INPUT SIGNALS | C | Current | V | Voltage | R | Resistance |
| DISPLAYS | 1 | Reflective | 2 | Backlight | ||
| OPTION CARDS | 0 | None | 2 | Dual sinking open collector | 7 | RS485 comm |
| 1 | Single relay | 6 | RS232 comm | |||
| OPTIONAL POWER SUPPLIES | PS1 | 115 Vac to 12 Vdc (400 mA) | PS2 | 115 Vac to 24 Vdc (200 mA) | PS3 | 85 – 250 Vac to 12 Vdc (400 mA) |
| OPTIONAL ENCLOSURES | ENC1 | Black painted steel | ENC2 | Off-White fiberglass |
