NOSHOK- 20-02S-S-04 Front Flush, Non-Replaceable Diaphragm Seal

Noshok 20-02S-S-04 Front Flush, Non-Replaceable Diaphragm Seals

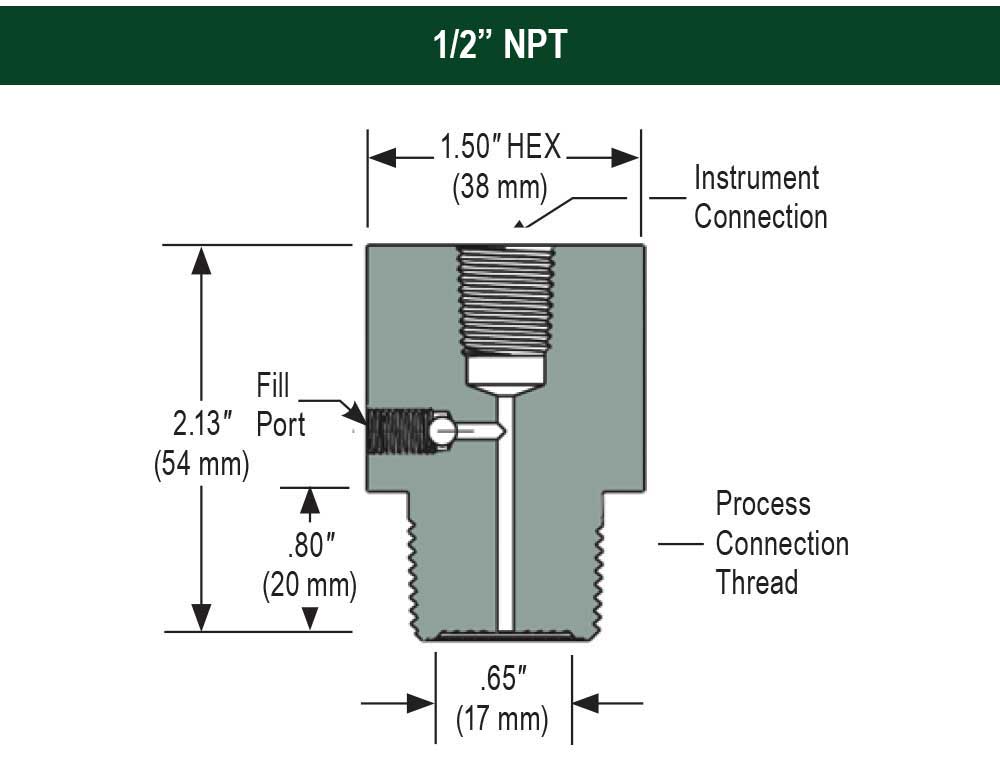

Type 20 Front Flush Diaphragm Seal, 1/4″ NPT Instrument Conn, 316 Stainless Steel, 316 Stainless Steel Diaphragm, 1/2″ NPT Male Process Conn

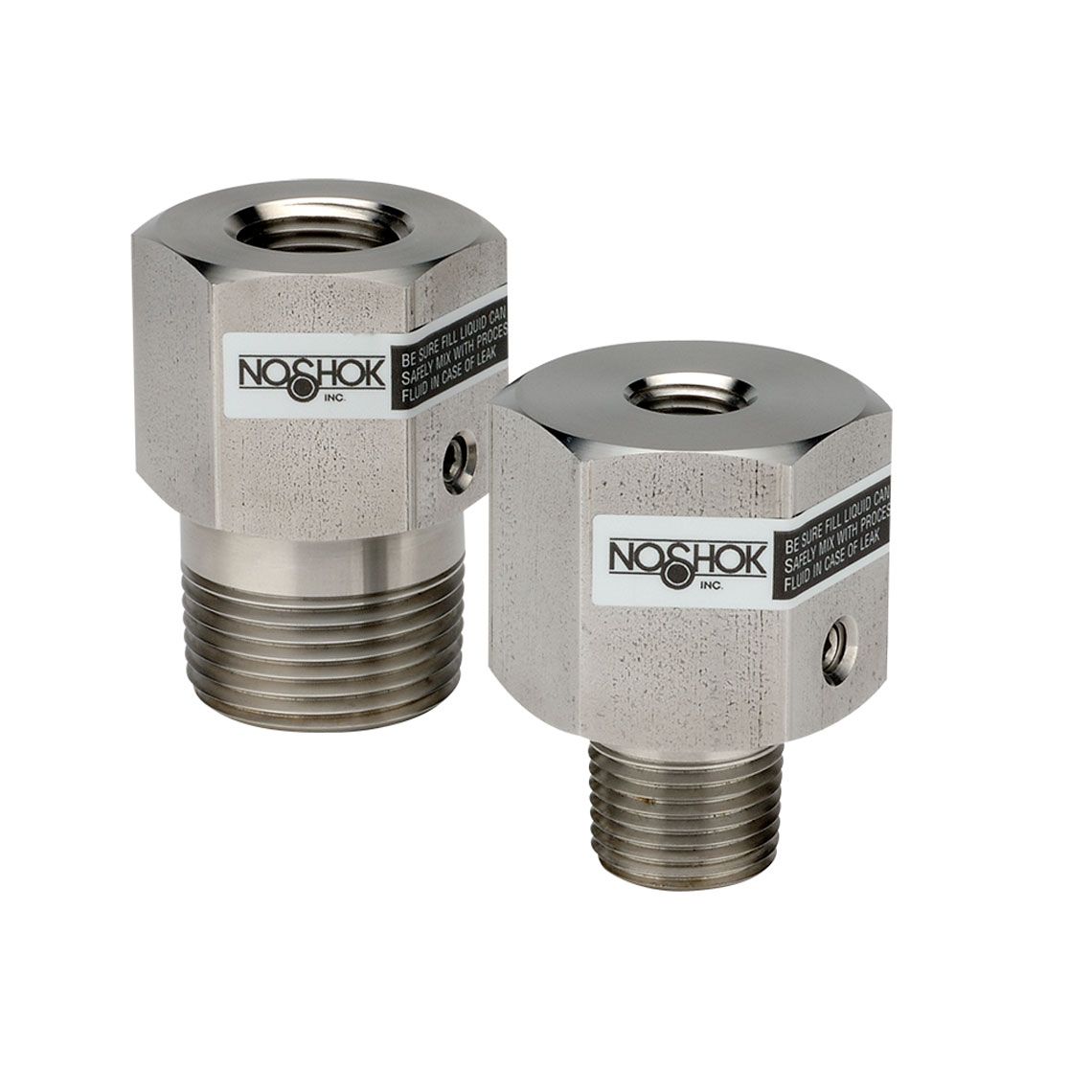

Type 20 Front Flush, Non-Replaceable Diaphragm Seals

• Designed for applications requiring an NPT male threaded process connection
  and with a flush diaphragm
• Flush diaphragm construction prevents clogging and process
  material build-up
• Constructed with a 316 stainless steel housing and diaphragm for strength
  and durability
• Available instrument connection sizes are 1/4” and 1/2″ with a process
  connection size of 1/2″ NPT male to 2″ NPT male
• Consider instrument size, pressure range, media composition, ambient and
  operating temperature, and maximum working pressure when selecting
• Capillaries and cooling elements are available for elevated process temperatures,
  see accessories.
• Fill fluid must be compatible with process media; i.e. Glycerin may become
  volatile in conjunction with a strong oxidizing agent such as chlorine, forms
  of oxygen or peroxide and nitric acids
