Noshok 2250 1/2 Steam Syphon 90 Degree Style Welded 316SS 1,967 psi
NOSHOK List price: Original price was: $250.98.$199.99Current price is: $199.99.
Noshok 25-100-15-psi/kPa-BSC 1/4 NPT Bottom Conn 2.5 ABS BLACK STEEL CASE
NOSHOK List price: Original price was: $35.95.$26.96Current price is: $26.96.

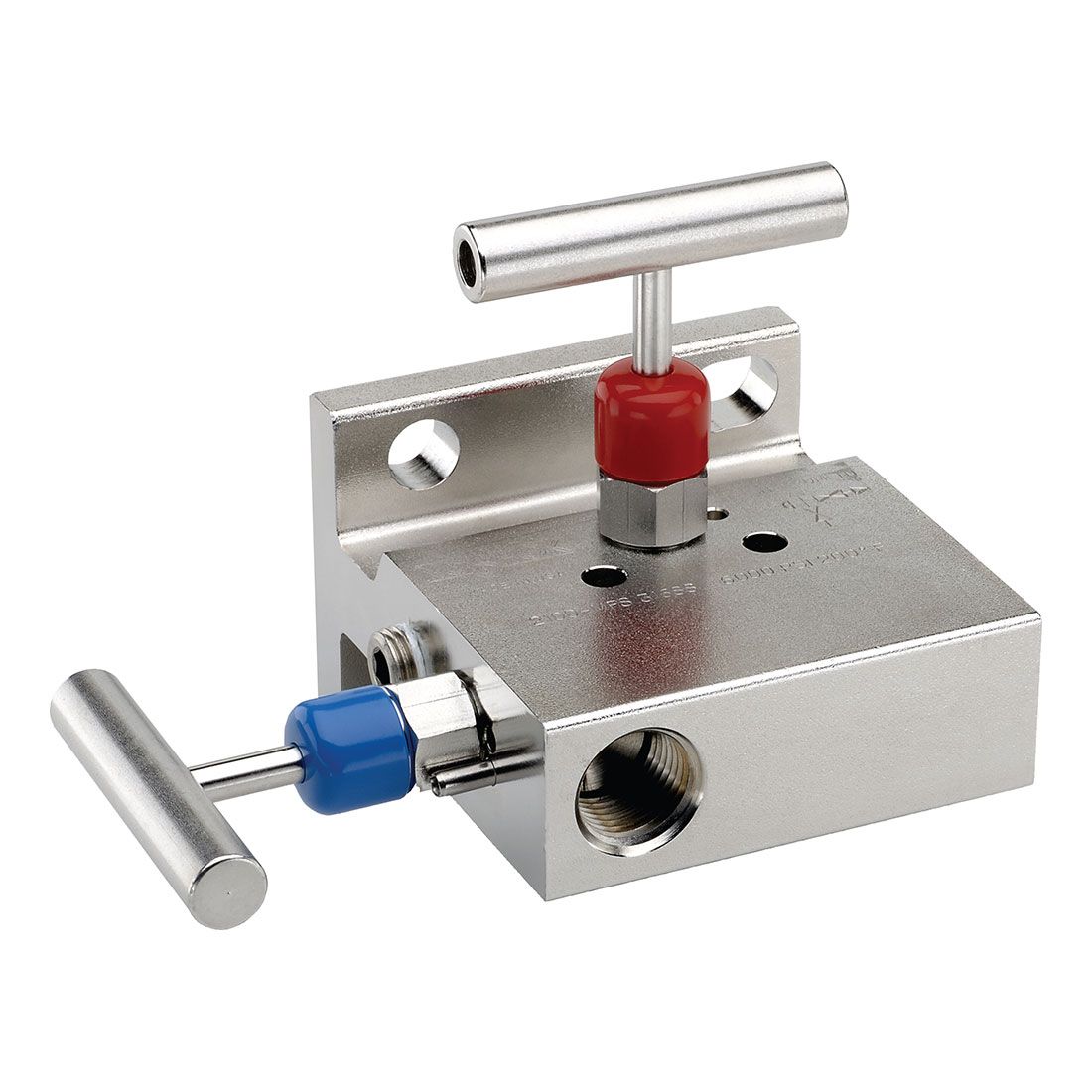

NOSHOK 210002-MMS- 2-Valve Narrow Block & Bleed Manifold Valve Soft Seat, Flange x Flange w/ 1/4 NPT Vent, 316 SS,
Date modified: Apr 06, 2024
Online Prices
NOSHOK List price: Original price was: $650.25.$450.00Current price is: $450.00.
NOSHOK 210002-MMS- 2-Valve Narrow Block & Bleed Manifold Valve Soft Seat, Flange x Flange w/ 1/4 NPT Vent, 316 SS,
200002/210002 & 200402/210402 Series 2-Valve Narrow Block & Bleed Manifold Valves Hard Seat & Soft Seat
Application Brochures
Oil & Gas
Water/Wastewater
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
ORDERING INFORMATION
| SERIES | 2 | 2-valve | ||||
| SEATS | 0 | Hard seat | 1 | Soft seat | ||
| PROCESS TYPE | 0 | Static pressure | ||||
| CONNECTIONS | 0 | Flange-flange | 2 | 1/4″ NPT-flange | 4 | 1/2″ NPT-flange (standard) |
| VALVE TYPES | MFC | Flange-Female, Steel | MMS | Flange-Flange, Stainless Steel | MMCL | Flange-Flange, Steel, Left Vent |
| MFS | Flange-Female, Stainless Steel | MFCL | Flange-Female, Steel, Left Vent | MMSL | Flange-Flange, Stainless Steel, Left Vent | |
| MMC | Flange-Flange, Steel | MFSL | Flange – Female, Stainless Steel, Left Vent |
ORDERING INFORMATION – Additional Options
| PACKINGS† | P1 | PTFE | P2 | Graphite ** | ||
| STEM TIPS | T1 | Non-rotating (316 stainless) | T6 | Ball (carbide)** | T8 | Ball (Monel)** |
| T5 | Ball (440C stainless) ** | T7 | Ball (ceramic)** | T9 | Non-rotating regulating (316 Stainless)** | |
| O-RINGS* | EM1 | EPDM | KZ1 | FFKM (Kalrez® 3018 or equivalent) | NB1 | NBR |
| HANDLES | HL1 | 1-13/16″ Mini “T” | HL4 | 1-3/8″ Phenolic | ||
| HL3 | 1″ Round knurled | HL5 | 1-3/4″ Phenolic |
† If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the “Pressure vs Temperature: Packing Style with Compatible Fluid” chart.
* Other o-ring materials available on request.
** For hard seat only.
Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are block “T” handles (HL2) and bleed 1-3/8″ mini “T” handle (HL7).
The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 200402-MFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.
For NOSHOK Valves with Steel valve types:
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
For NOSHOK Valves with Stainless Steel valve types:
WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Description
NOSHOK 210002-MMS- 2-Valve Narrow Block & Bleed Manifold Valve Soft Seat, Flange x Flange w/ 1/4 NPT Vent, 316 SS,
200002/210002 & 200402/210402 Series 2-Valve Narrow Block & Bleed Manifold Valves Hard Seat & Soft Seat
Application Brochures
Oil & Gas Water/Wastewater
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
ORDERING INFORMATION
| SERIES | 2 | 2-valve | ||||
| SEATS | 0 | Hard seat | 1 | Soft seat | ||
| PROCESS TYPE | 0 | Static pressure | ||||
| CONNECTIONS | 0 | Flange-flange | 2 | 1/4″ NPT-flange | 4 | 1/2″ NPT-flange (standard) |
| VALVE TYPES | MFC | Flange-Female, Steel | MMS | Flange-Flange, Stainless Steel | MMCL | Flange-Flange, Steel, Left Vent |
| MFS | Flange-Female, Stainless Steel | MFCL | Flange-Female, Steel, Left Vent | MMSL | Flange-Flange, Stainless Steel, Left Vent | |
| MMC | Flange-Flange, Steel | MFSL | Flange – Female, Stainless Steel, Left Vent |
ORDERING INFORMATION – Additional Options
| PACKINGS† | P1 | PTFE | P2 | Graphite ** | ||
| STEM TIPS | T1 | Non-rotating (316 stainless) | T6 | Ball (carbide)** | T8 | Ball (Monel)** |
| T5 | Ball (440C stainless) ** | T7 | Ball (ceramic)** | T9 | Non-rotating regulating (316 Stainless)** | |
| O-RINGS* | EM1 | EPDM | KZ1 | FFKM (Kalrez® 3018 or equivalent) | NB1 | NBR |
| HANDLES | HL1 | 1-13/16″ Mini “T” | HL4 | 1-3/8″ Phenolic | ||
| HL3 | 1″ Round knurled | HL5 | 1-3/4″ Phenolic |
† If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the “Pressure vs Temperature: Packing Style with Compatible Fluid” chart.
* Other o-ring materials available on request.
** For hard seat only.
Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are block “T” handles (HL2) and bleed 1-3/8″ mini “T” handle (HL7).
The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 200402-MFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.
For NOSHOK Valves with Steel valve types:
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
For NOSHOK Valves with Stainless Steel valve types:
WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
