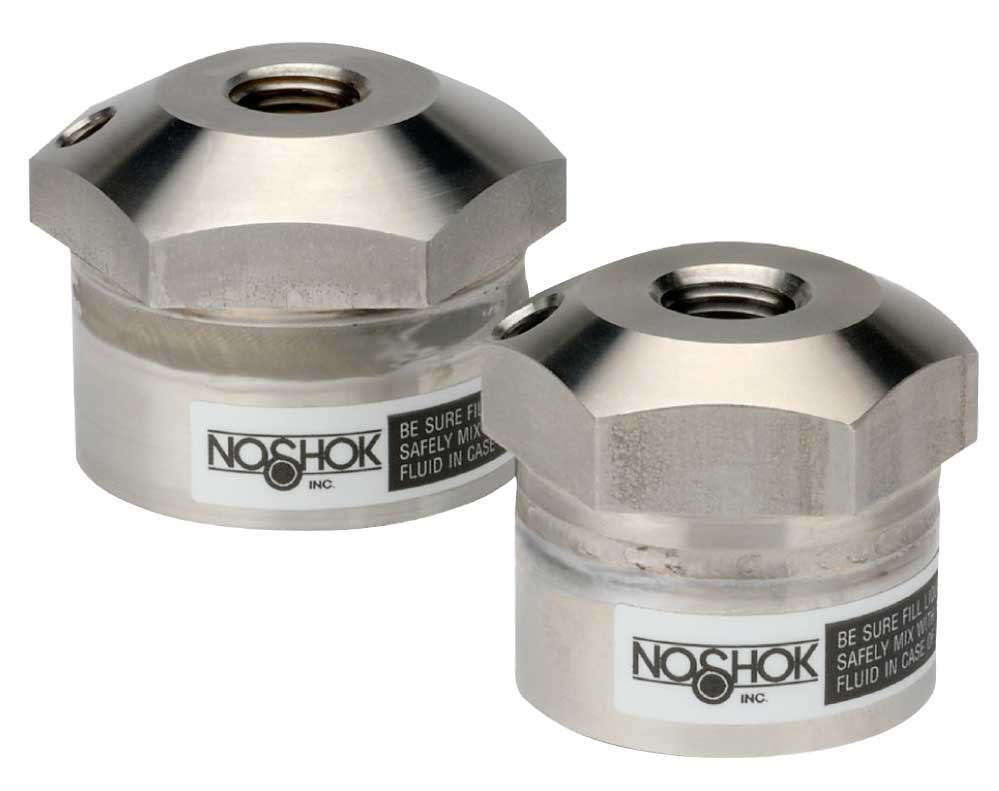

Noshok 25-02S-S-04S-GY Diaphragm Seal-Glycerin FILLED Standard & Elevated Pressure, Non-Replaceable Diaphragm Seal

Part Number: 25-02S-S-04S-GY

Date modified: Apr 17, 2023

Online Prices

NOSHOK List price: Original price was: $195.20.Current price is: $150.00.

Warranty: 3 YR
Add to wishlist
Compare

Noshok 25-02S-S-04S-GY Diaphragm Seal-Glycerin FILLED Standard & Elevated Pressure, Non-Replaceable Diaphragm Seal–only order this when purchasing a gauge or transmitter

* When selecting a Monel or Carpenter 20 Diaphragm, the upper and lower housing must be the same material.



Options & Accessories

TYPES 25 (2,500 psi) 25H (5,000 psi)
INSTRUMENT CONNECTION SIZES 02 1/4″ NPT 04 1/2″ NPT
UPPER HOUSING MATERIALS M Monel 400 P Carpenter 20 S 316 Stainless steel
DIAPHRAGM MATERIALS H Hastelloy C-276 P Carpenter 20 *
M Monel 400 * S 316 Stainless steel
PROCESS CONNECTION SIZES 02 1/4″ NPT 04 1/2″ NPT
LOWER HOUSING MATERIALS H Hastelloy C-276 P Carpenter 20
M Monel 400 S 316 Stainless steel
FLUSHING CONNECTIONS 1F 1/8″ NPT 2F 1/4″ NPT

Description

Noshok 25-02S-S-04S-GY Diaphragm Seal-Glycerin FILLED Standard & Elevated Pressure, Non-Replaceable Diaphragm Seal–only order this when purchasing a gauge or transmitter

* When selecting a Monel or Carpenter 20 Diaphragm, the upper and lower housing must be the same material.



Options & Accessories

TYPES 25 (2,500 psi) 25H (5,000 psi)
INSTRUMENT CONNECTION SIZES 02 1/4″ NPT 04 1/2″ NPT
UPPER HOUSING MATERIALS M Monel 400 P Carpenter 20 S 316 Stainless steel
DIAPHRAGM MATERIALS H Hastelloy C-276 P Carpenter 20 *
M Monel 400 * S 316 Stainless steel
PROCESS CONNECTION SIZES 02 1/4″ NPT 04 1/2″ NPT
LOWER HOUSING MATERIALS H Hastelloy C-276 P Carpenter 20
M Monel 400 S 316 Stainless steel
FLUSHING CONNECTIONS 1F 1/8″ NPT 2F 1/4″ NPT
