Noshok 30-04S-S-T-02S-2F 1/2 NPT Standard & Elevated Pressure, Bolted, Non-Replaceable Diaphragm Seals

Part Number: 30-04S-S-T-02S-2F
Online Prices

NOSHOK List price: Original price was: $517.31.Current price is: $425.30.

Warranty: 3 YR
Add to wishlist
Compare

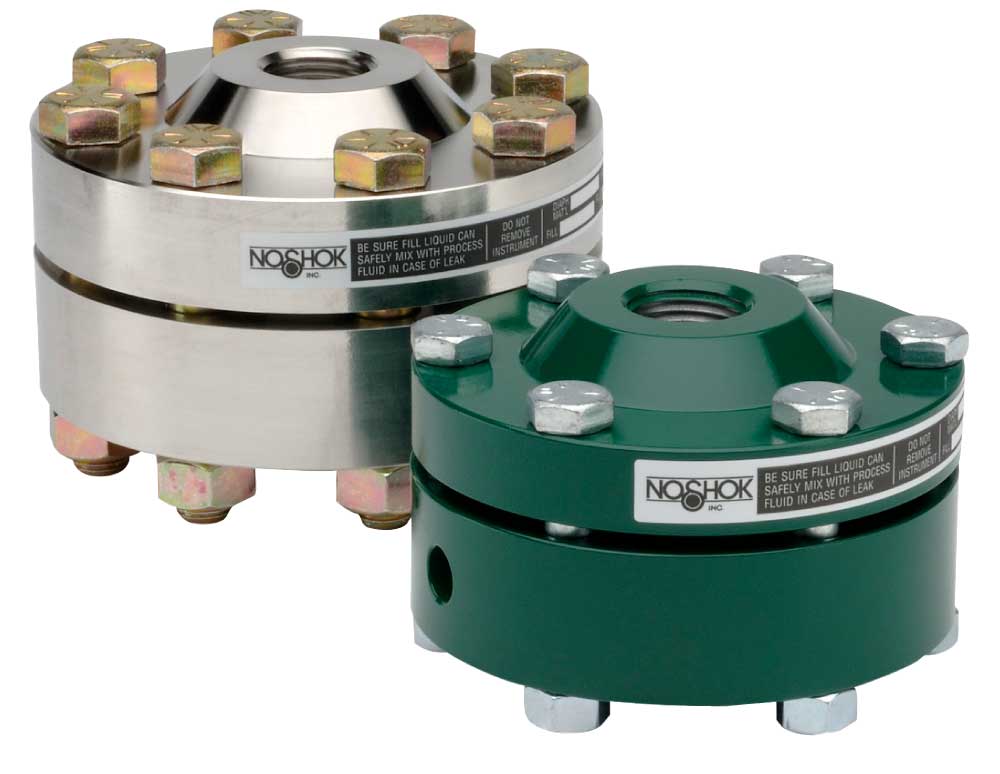

Noshok 30-04S-S-T-02S-2F Standard & Elevated Pressure, Bolted, Non-Replaceable Diaphragm Seals

Type 30/30H Standard & Elevated Pressure, Bolted, Non-Replaceable Diaphragm Seals





  • Utilizes an all metallic diaphragm welded to the upper housing to allow field
    replacement of the lower housing while maintaining continuity of the
    measuring system
  • Can be used for remote mounting of pressure instrument(s) with capillary
  • A wide variety of instrument and process connections are available
  • A flushing port is available to clean wetted areas and prevent process
    media build up
  • Consider instrument size, pressure range, media composition, ambient and
    operating temperature, and maximum working pressure when selecting
  • Capillaries and cooling elements are available for elevated process temperatures,
    see accessories
  • Fill fluid must be compatible with process media; i.e. Glycerin may become
    volatile in conjunction with a strong oxidizing agent such as chlorine, forms
    of oxygen or peroxide and nitric acids
Tech Manual




ORDERING INFORMATION

TYPES 30 (2,500 psi) 30H (5,000 psi)
INSTRUMENT CONNECTION SIZES 02 1/4″ NPT 04 1/2″ NPT
UPPER HOUSING MATERIALS C Carbon steel P Carpenter 20 U Titanium Grade 4
M Monel 400 S 316 Stainless steel
DIAPHRAGM MATERIALS A Tantalum M Monel 4001 P Carpenter 201 U Titanium Grade 41
H Halstelloy C-276 N Inconel 600 S 316 Stainless steel
SEAL GASKET MATERIALS F FEP encapsulated 0-ring (5,000 psi) T PTFE
R Klingersil C-4401 (Rated to 1,500 psi) V FKM
PROCESS CONNECTION SIZES 02 1/4″ NPT 06 3/4″ NPT 10 1-1/4″ NPT
04 1/2″ NPT 08 1″ NPT 12 1-1/2″ NPT
  (ASME and DIN flanges available upon request)
LOWER HOUSING MATERIALS C Carbon steel M Monel 400 P Carpenter 20 U Titanium Grade 4
H Hastelloy C-276 N Inconel 600 S 316 Stainless Steel
FLUSHING CONNECTIONS 1F 1/8″ NPT 2F 1/4″ NPT

    Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
    1 When selecting a Monel 400, Carpenter 20 or Titanium Grade 4 diaphragm, the upper and lower housing must be the same materi
