Noshok 38-PD8-B-SS1 Sintered Disk B 316 SS
$7.43
Noshok 38-PD8-B-SS1 Sintered Disk B 316 SS
NOTE: The “X” in the model number denotes the Disc option (example: 1135-C).
See chart below for Disc optins.
| DIMENSIONS | 1/4″NPT | 1/2″ NPT | SAE J1926-3:7/16-20 |  |
|
| A | IN | 0.812 | 1.125 | 0.812 | |
| MM | 20.6 | 28.6 | 20.6 | ||
| B | IN | 1.60 | 1.875 | 1.60 | |
| MM | 40.6 | 47.6 | 40.6 | ||
| C | IN | 1.04 | 1.25 | 1.24 | |
| MM | 26.4 | 31.8 | 31.5 | ||
| D | IN | 0.56 | 0.625 | 0.36 | |
| MM | 14.2 | 15.9 | 9.1 | ||

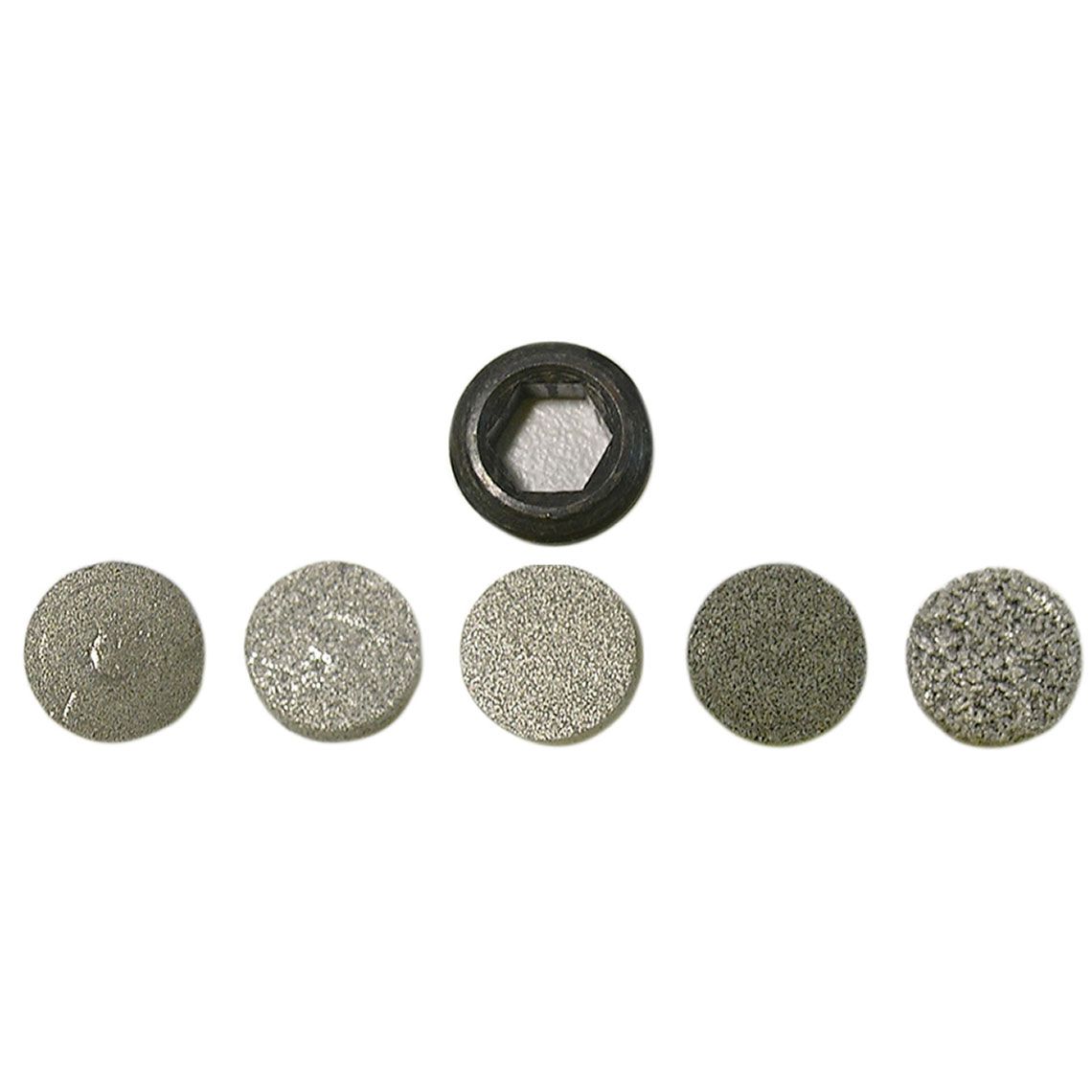

Sintered Snubbers Replacement Disc Options
| DISC GRADE |
PART NO. | AVERAGE AIR FLOW ESTIMATE |
MICRON GRADE (reference) | SUGGESTED USE |
| A | PD8-A-SSI | 0.25 L/MIN @ 1 psi | 2 | Gases |
| B | PD8-B-SSI | 0.63 L/MIN @ 1 psi | 10 | Gases, Water |
| C | PD8-C-SSI | 1.46 L/MIN @ 1 psi | 20 | Water, Light Oil |
| D | PD8-D-SSI | 2.79 L/MIN @ 1 psi | 40 | Light Oil |
| E | PD8-E-SSI | 3.14 L/MIN @ 1 psi | 60 | Heavy Oil |
| PART NO. | SIZE | MATERIAL | PRESSURE RATING |
| 1125-X | 1/4″ NPT | Brass | 6,000 psi |
| 1135-X | SAE J1926-3:7/16-20 | Brass | 5,000 psi |
| 1150-X | 1/2″ NPT | Brass | 6,000 psi |
| 5125-X | 1/4″ NPT | 316 stainless steel | 15,000 psi |
| 5150-X | 1/2″ NPT | 316 stainless steel | 15,000 psi |
Description
Noshok 38-PD8-B-SS1 Sintered Disk B 316 SS
NOTE: The “X” in the model number denotes the Disc option (example: 1135-C).
See chart below for Disc optins.
| DIMENSIONS | 1/4″NPT | 1/2″ NPT | SAE J1926-3:7/16-20 | |
|
| A | IN | 0.812 | 1.125 | 0.812 | |
| MM | 20.6 | 28.6 | 20.6 | ||
| B | IN | 1.60 | 1.875 | 1.60 | |
| MM | 40.6 | 47.6 | 40.6 | ||
| C | IN | 1.04 | 1.25 | 1.24 | |
| MM | 26.4 | 31.8 | 31.5 | ||
| D | IN | 0.56 | 0.625 | 0.36 | |
| MM | 14.2 | 15.9 | 9.1 | ||
Sintered Snubbers Replacement Disc Options
| DISC GRADE |
PART NO. | AVERAGE AIR FLOW ESTIMATE |
MICRON GRADE (reference) | SUGGESTED USE |
| A | PD8-A-SSI | 0.25 L/MIN @ 1 psi | 2 | Gases |
| B | PD8-B-SSI | 0.63 L/MIN @ 1 psi | 10 | Gases, Water |
| C | PD8-C-SSI | 1.46 L/MIN @ 1 psi | 20 | Water, Light Oil |
| D | PD8-D-SSI | 2.79 L/MIN @ 1 psi | 40 | Light Oil |
| E | PD8-E-SSI | 3.14 L/MIN @ 1 psi | 60 | Heavy Oil |
| PART NO. | SIZE | MATERIAL | PRESSURE RATING |
| 1125-X | 1/4″ NPT | Brass | 6,000 psi |
| 1135-X | SAE J1926-3:7/16-20 | Brass | 5,000 psi |
| 1150-X | 1/2″ NPT | Brass | 6,000 psi |
| 5125-X | 1/4″ NPT | 316 stainless steel | 15,000 psi |
| 5150-X | 1/2″ NPT | 316 stainless steel | 15,000 psi |
