NOSHOK 404-MFAS 1/2 NPT, Male x Female, Angle, 316 SS, Hard Seat Needle Valve
Online Prices
NOSHOK List price: Original price was: $262.40.$128.50Current price is: $128.50.

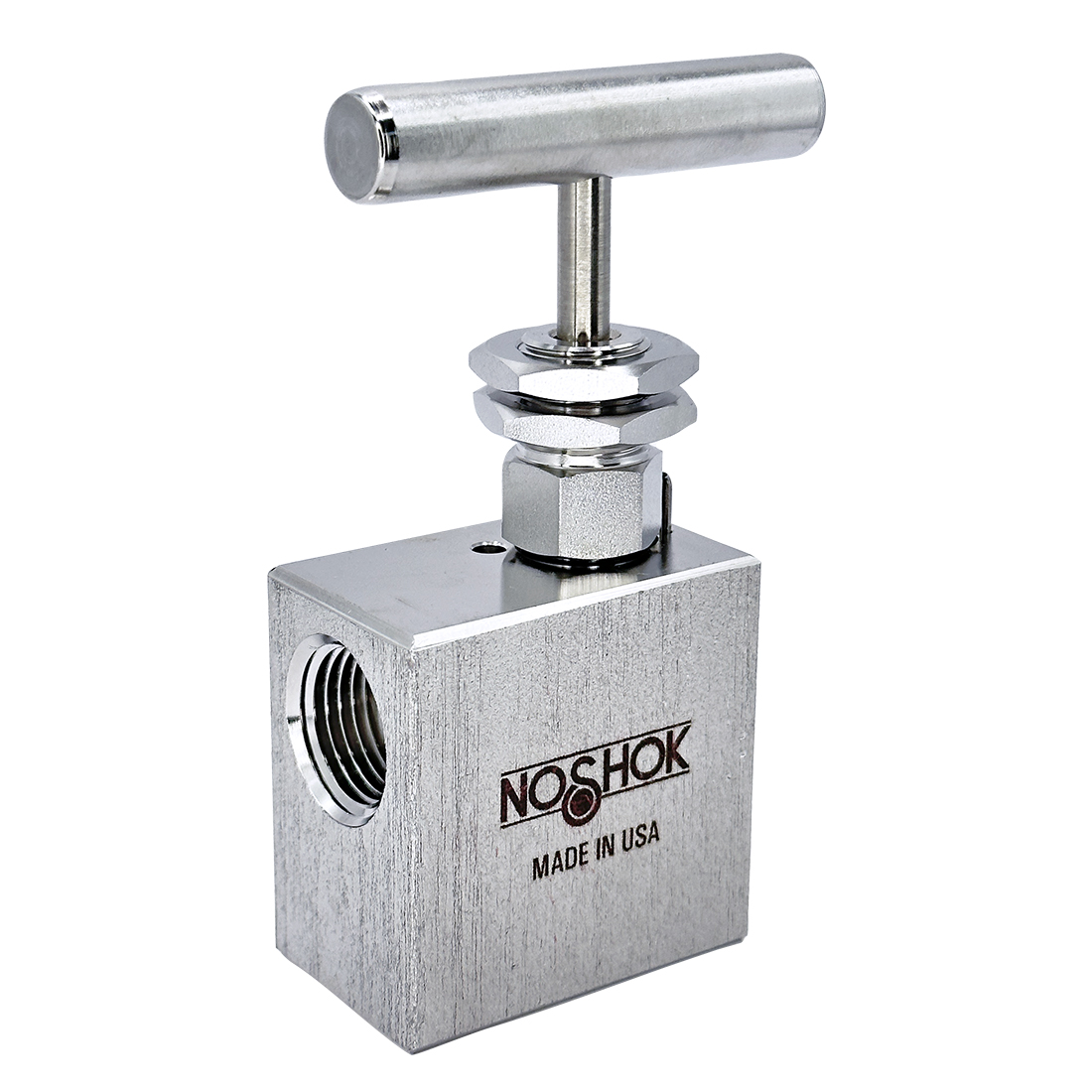

NOSHOK 404-MFAS 1/2 NPT, Male x Female, Angle, 316 SS, Hard Seat Needle Valve–handle is HL2
ORDERING INFORMATION
| SERIES | 4 | 400 Series, hard seat | ||||
| CONNECTION SIZES | 02 | 1/4″ NPT | 06 | 3/4″ NPT | 12 | 1-1/2″ NPT |
| 03 | 3/8″ NPT | 08 | 1″ NPT | 42 | 7/16″-20 UNF (#4 SAE, J1926) | |
| 04 | 1/2″ NPT | 10 | 1-1/4″ NPT | |||
| VALVE TYPES | MFC | Male-Female, Steel | MFS | Male-Female, Stainless Steel | ||
| FFC | Female-Female, Steel | FFS | Female-Female, Stainless Steel | |||
| MFAC | Male-Female Angle, Steel | MFAS | Male-Female Angle, Stainless Steel | |||
| FFAC | Female-Female Angle, Steel | FFAS | Female-Female Angle, Stainless Steel |
To meet all of your specific application requirements, the following additional options are available for these needle valves. To order all or any of these
options, simply add them to the part number as shown in the diagram below.
NOTE 1: The example shown includes ALL possible additional options. Please include ONLY the options required for your application when building your part number. (EXAMPLE: 404-FFC-PM2)
NOTE 2: When a packing option is selected, an o-ring option is NOT available.
NOTE 3: Packing options are NOT available on 3/4” NPT through 1-1/2” NPT valves.
ORDERING INFORMATION – Additional Options
| PACKINGS† | P1 | PTFE | P2 | Graphite | ||
| STEM TIPS | T1 | Non-rotating (316 stainless) | T6 | Ball (carbide) | T8 | Ball (Monel) |
| T5 | Ball (440C stainless) | T7 | Ball (ceramic) | T9 | Non-rotating regulating (316 Stainless) | |
| O-RINGS* | EM1 | EPDM | KZ1 | FFKM (Perfluoroelastomer) | NB1 | NBR |
| PANEL MOUNTINGS | PM1 | Panel mount (1 nut) | PM2 | Panel mount (2 nuts) | ||
| HANDLES | HL4 | 1-3/8″ Phenolic | HL5 | 1-3/4″ Phenolic | HL9 | 2-3/8″ Phenolic** |
† For 1/4″, 3/8″ and 1/2″ NPT only. If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the “Pressure vs Temperature: Packing Style with Compatible Fluid” chart.
* Other o-ring materials available on request.
** For 3/4″ NPT to 1-1/2″ NPT only.
The standard o-ring in all the NOSHOK valves is FKM and the standard handles are “T” handles (HL2).
The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 404-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.
Description
NOSHOK 404-MFAS 1/2 NPT, Male x Female, Angle, 316 SS, Hard Seat Needle Valve–handle is HL2
ORDERING INFORMATION
| SERIES | 4 | 400 Series, hard seat | ||||
| CONNECTION SIZES | 02 | 1/4″ NPT | 06 | 3/4″ NPT | 12 | 1-1/2″ NPT |
| 03 | 3/8″ NPT | 08 | 1″ NPT | 42 | 7/16″-20 UNF (#4 SAE, J1926) | |
| 04 | 1/2″ NPT | 10 | 1-1/4″ NPT | |||
| VALVE TYPES | MFC | Male-Female, Steel | MFS | Male-Female, Stainless Steel | ||
| FFC | Female-Female, Steel | FFS | Female-Female, Stainless Steel | |||
| MFAC | Male-Female Angle, Steel | MFAS | Male-Female Angle, Stainless Steel | |||
| FFAC | Female-Female Angle, Steel | FFAS | Female-Female Angle, Stainless Steel |
To meet all of your specific application requirements, the following additional options are available for these needle valves. To order all or any of these
options, simply add them to the part number as shown in the diagram below.
NOTE 1: The example shown includes ALL possible additional options. Please include ONLY the options required for your application when building your part number. (EXAMPLE: 404-FFC-PM2)
NOTE 2: When a packing option is selected, an o-ring option is NOT available.
NOTE 3: Packing options are NOT available on 3/4” NPT through 1-1/2” NPT valves.
ORDERING INFORMATION – Additional Options
| PACKINGS† | P1 | PTFE | P2 | Graphite | ||
| STEM TIPS | T1 | Non-rotating (316 stainless) | T6 | Ball (carbide) | T8 | Ball (Monel) |
| T5 | Ball (440C stainless) | T7 | Ball (ceramic) | T9 | Non-rotating regulating (316 Stainless) | |
| O-RINGS* | EM1 | EPDM | KZ1 | FFKM (Perfluoroelastomer) | NB1 | NBR |
| PANEL MOUNTINGS | PM1 | Panel mount (1 nut) | PM2 | Panel mount (2 nuts) | ||
| HANDLES | HL4 | 1-3/8″ Phenolic | HL5 | 1-3/4″ Phenolic | HL9 | 2-3/8″ Phenolic** |
† For 1/4″, 3/8″ and 1/2″ NPT only. If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the “Pressure vs Temperature: Packing Style with Compatible Fluid” chart.
* Other o-ring materials available on request.
** For 3/4″ NPT to 1-1/2″ NPT only.
The standard o-ring in all the NOSHOK valves is FKM and the standard handles are “T” handles (HL2).
The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 404-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.
