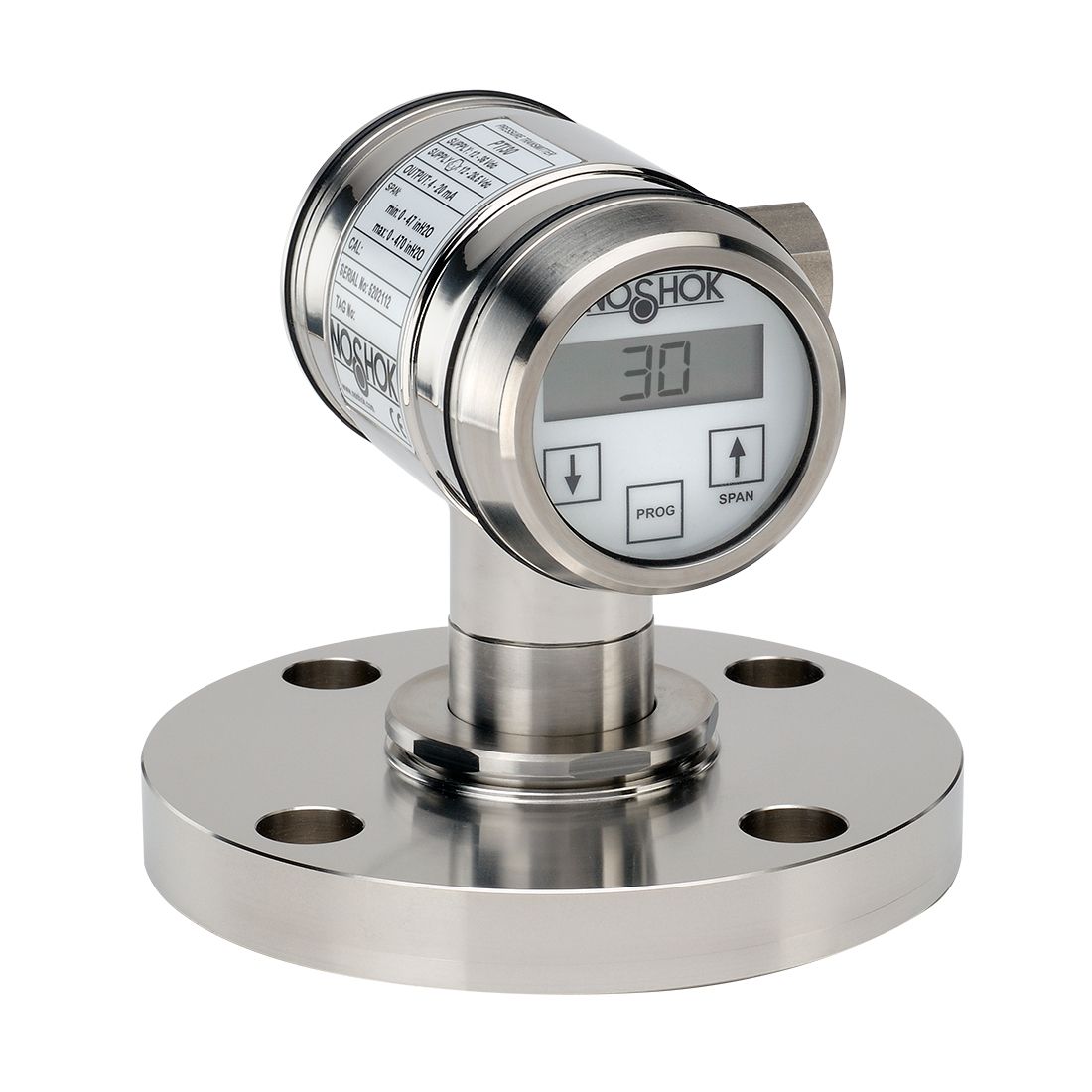

NOSHOK PTI30-5psig-1-1-78-71-CC High Accuracy Intelligent Pressure Transmitter, Min. span 1.45 psi, max. span 5.8 psi (lowest vacuum pressure -5.8 psig), Certified Calibration
Original price was: $1,946.32.$1,699.00Current price is: $1,699.00.
Available on backorder
NOSHOK PTI30-5psig-1-1-78-71-CC High Accuracy Intelligent Pressure Transmitter, Min. span 1.45 psi, max. span 5.8 psi (lowest vacuum pressure -5.8 psig), ?0.1% of adjusted span with 10:1 turn down, 4 mA to 20 mA, 2-wire, 3 in ANSI 150# flange, PG9 cable gland, Certified Calibration
u are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
| SERIES | PTI30 | |||||
| ADJUSTABLE PRESSURE RANGES |
5psig | Min. span 1.45 psi, max. span 5.8 psi (lowest vacuum pressure -5.8 psig) |
145psig | Min. span 14.5 psi, max. span 145 psi (lowest vacuum pressure -15 psig) |
1450psig | Min. span 290 psi, max. span 1,450 psi (lowest vacuum pressure -15 psig) |
| 17psig | Min. span 4 psi, max. span 17.4 psi (lowest vacuum pressure -15 psig) |
435psig | Min. span 72.5 psi, max. span 435 psi (lowest vacuum pressure -15 psig) |
|||
| psig = gauge pressure All ranges can be user scaled in vacuum or compound. | ||||||
| ACCURACY | 1 | ±0.1% of adjusted span (10:1 turndown) | ||||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 43 | 4 mA to 20 mA, 2-wire with HART® | ||
| PROCESS CONNECTIONS |
8 | 1/2″ NPT male | 75 | Threaded flush diaphragm for flange (flange not included) |
79 | 1″ PMC connection |
| 69 | 1/2″ NPT female | 76 | 1-1/2″ ANSI 150# Flange | 80 | 1-1/2″ PMC connection | |
| 73 | 1″ NPT male flush | 77 | 2″ ANSI 150# Flange | |||
| 74 | 1-1/2″ NPT male flush | 78 | 3″ ANSI 150# Flange | |||
| ELECTRICAL CONNECTIONS |
25 | M12 x 1 (4-pin) | 28 | 1/2” NPT Female | 71 | PG9 Cable Gland |
| OPTIONS | CC | Certified Calibration | RMT-10 | Remote Mount Head with 10 ft cable * | TC | Transparent Cover (for display) |
*Custom lengths available. Includes mounting bracket.
Description
NOSHOK PTI30-5psig-1-1-78-71-CC High Accuracy Intelligent Pressure Transmitter, Min. span 1.45 psi, max. span 5.8 psi (lowest vacuum pressure -5.8 psig), ?0.1% of adjusted span with 10:1 turn down, 4 mA to 20 mA, 2-wire, 3 in ANSI 150# flange, PG9 cable gland, Certified Calibration
u are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
| SERIES | PTI30 | |||||
| ADJUSTABLE PRESSURE RANGES |
5psig | Min. span 1.45 psi, max. span 5.8 psi (lowest vacuum pressure -5.8 psig) |
145psig | Min. span 14.5 psi, max. span 145 psi (lowest vacuum pressure -15 psig) |
1450psig | Min. span 290 psi, max. span 1,450 psi (lowest vacuum pressure -15 psig) |
| 17psig | Min. span 4 psi, max. span 17.4 psi (lowest vacuum pressure -15 psig) |
435psig | Min. span 72.5 psi, max. span 435 psi (lowest vacuum pressure -15 psig) |
|||
| psig = gauge pressure All ranges can be user scaled in vacuum or compound. | ||||||
| ACCURACY | 1 | ±0.1% of adjusted span (10:1 turndown) | ||||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 43 | 4 mA to 20 mA, 2-wire with HART® | ||
| PROCESS CONNECTIONS |
8 | 1/2″ NPT male | 75 | Threaded flush diaphragm for flange (flange not included) |
79 | 1″ PMC connection |
| 69 | 1/2″ NPT female | 76 | 1-1/2″ ANSI 150# Flange | 80 | 1-1/2″ PMC connection | |
| 73 | 1″ NPT male flush | 77 | 2″ ANSI 150# Flange | |||
| 74 | 1-1/2″ NPT male flush | 78 | 3″ ANSI 150# Flange | |||
| ELECTRICAL CONNECTIONS |
25 | M12 x 1 (4-pin) | 28 | 1/2” NPT Female | 71 | PG9 Cable Gland |
| OPTIONS | CC | Certified Calibration | RMT-10 | Remote Mount Head with 10 ft cable * | TC | Transparent Cover (for display) |
*Custom lengths available. Includes mounting bracket.
