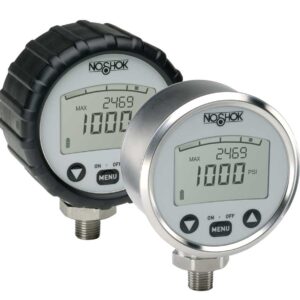

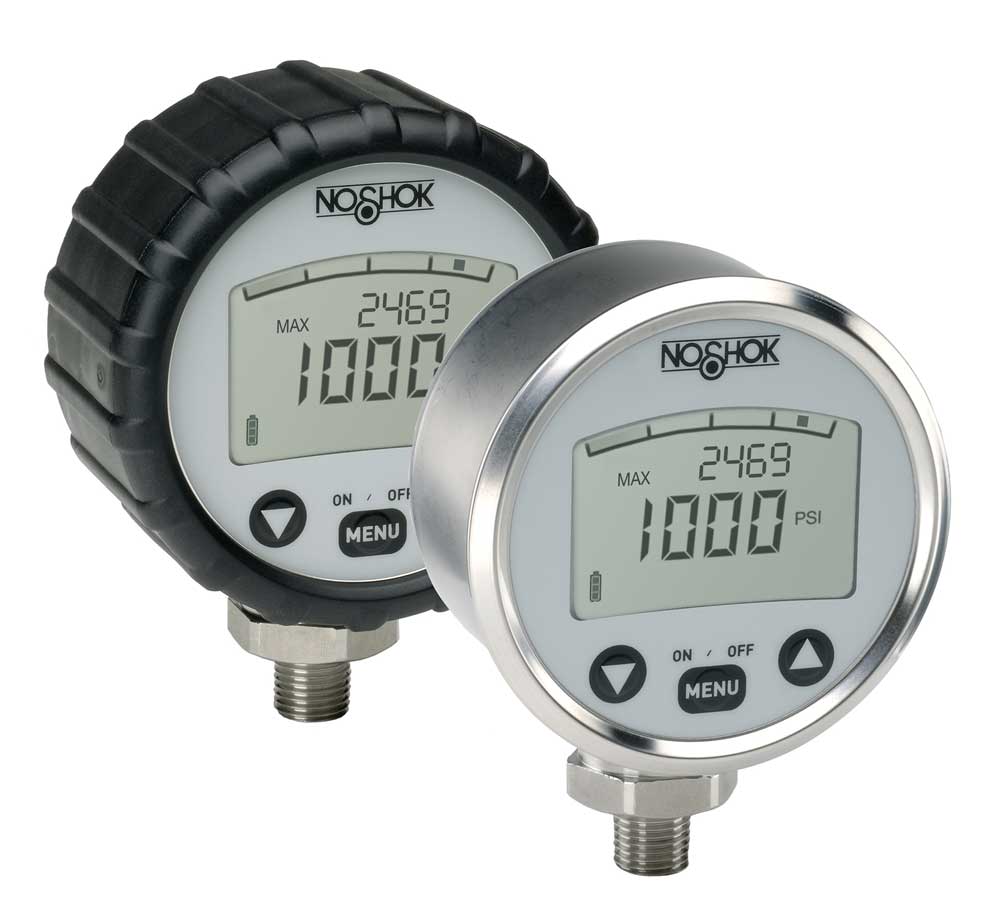

Name: PGE20 Series General Purpose Digital Gauges-NOSHOK
SKU: PGE20 Series General Purpose Digital Gauge
Availability: InStock

SERIES	PGE20
PRESSURE RANGES	15psiv	-15 psig to 0 psig	70	0 psig to 70 psig	1500psig	0 psig to 1,500 psig	5psia	0 psia to 5 psia
	15psic	-15 psig to 15psig	100psig	0 psig to 100 psig	2000psig	0 psig to 2,000 psig	15psia	0 psia to 15 psia
	160psic	-15 psig to 160 psig	150psig	0 psig to 150 psig	3000psig	0 psig to 3,000 psig	30psia	0 psia to 30 psia
	200psic	-15 psig to 200 psig	200psig	0 psig to 200 psig	4000psig	0 psig to 4,000 psig	70psia	0 psia to 70 psia
	300psic	-15 psig to 300 psig	300psig	0 psig to 300 psig	5000psig	0 psig to 5,000 psig	120psia	0 psia to 120 psia
	600psic	-15 psig to 600 psig	400psig	0 psig to 400 psig	6000psig	0 psig to 6,000 psig	150psia	0 psia to 150 psia
	5psig	0 psig to 5psig	500psig	0 psig to 500 psig	7500psig	0 psig to 7,500 psig	300psia	0 psia to 300 psia
	10psig	0 psig to 10 psig	600psig	0 psig to 600 psig	10000psig	0 psig to 10,000 psig	500psia	0 psia to 500 psia
	15psig	0 psig to 15 psig	750psig	0 psig to 750 psig	15000psig	0 psig to 15,000 psig
	30psig	0 psig to 30psig	100	0 psig to 1,000 psig	5000	0 psig to 5,000 psig
	psiv=vacuum gauge psic=compound pressure psig=gauge pressure psia=absolute pressure Other ranges available on request
ACCURACIES	1	±0.5% Full Scale	2	±0.25% Full Scale*
PROCESS CONNECTION	2	1/4″ NPT male
OPTIONS	DL	Integrated Data Logger	RCP	Rubber Case Protector	ST8	SS Threaded Orifice

Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

* Includes additional units of measure, level, density and delay.

ORDERING INFORMATION – UNINSTALLED OPTIONS
OPTIONS	PGE20-IC	Interface cable (Micro USB to USB cable 2m)	PGE20-GCI	Gauge Carrying Case (1 gauge)	PGE20-GC3	Gauge Carrying Case (3 gauges)

SPECIFICATIONS
Pressure ranges	Gauge, compound, absolute and vacuum ranges from 5 psig to 15,000 psig
Accuracy	±0.50% of full scale, including non-linearity, hysteresis, zero offset, and end point deviation per IEC 61298-2
Temperature ranges	Media -4 °F to 122°F (-20 °C to 50 °C) Operating 14 °F to 122 °F (-10 °C to 50 °C) Storage 0 °F to 130 °F (-18 °C to 55°C)
Measuring element	316L Stainless Steel
Connection	1/4" NPT Male, 316L Stainless Steel
Case	PBT with 30% glass fiber
Display	Resolution: 4-1/2 digits Back-lighting: activated via button Bar graph: 0 to 100% in 5% steps
Power requirement	3 x 1.5 V AA Alkaline batteries Typically > 4,000 hours
Response time	200 ms
Proof pressure	≤ 70 psi: ≥ 100 to 7,500 psi: > 7,500 psi:	3 times full scale 2 times full scale 1.43 times full scale
Burst pressure	≤ 70 psi: ≥ 100 to 7,500 psi: > 7,500 psi:	4 times full scale 3 times full scale 2 times full scale
Programmable functions Measuring units	Adjustable through front key pad psi, bar, mbar, MPa, kg/cm2 and 1 user defined unit
Environmental rating	IP65
Weight	0.77 lb, including batteries
