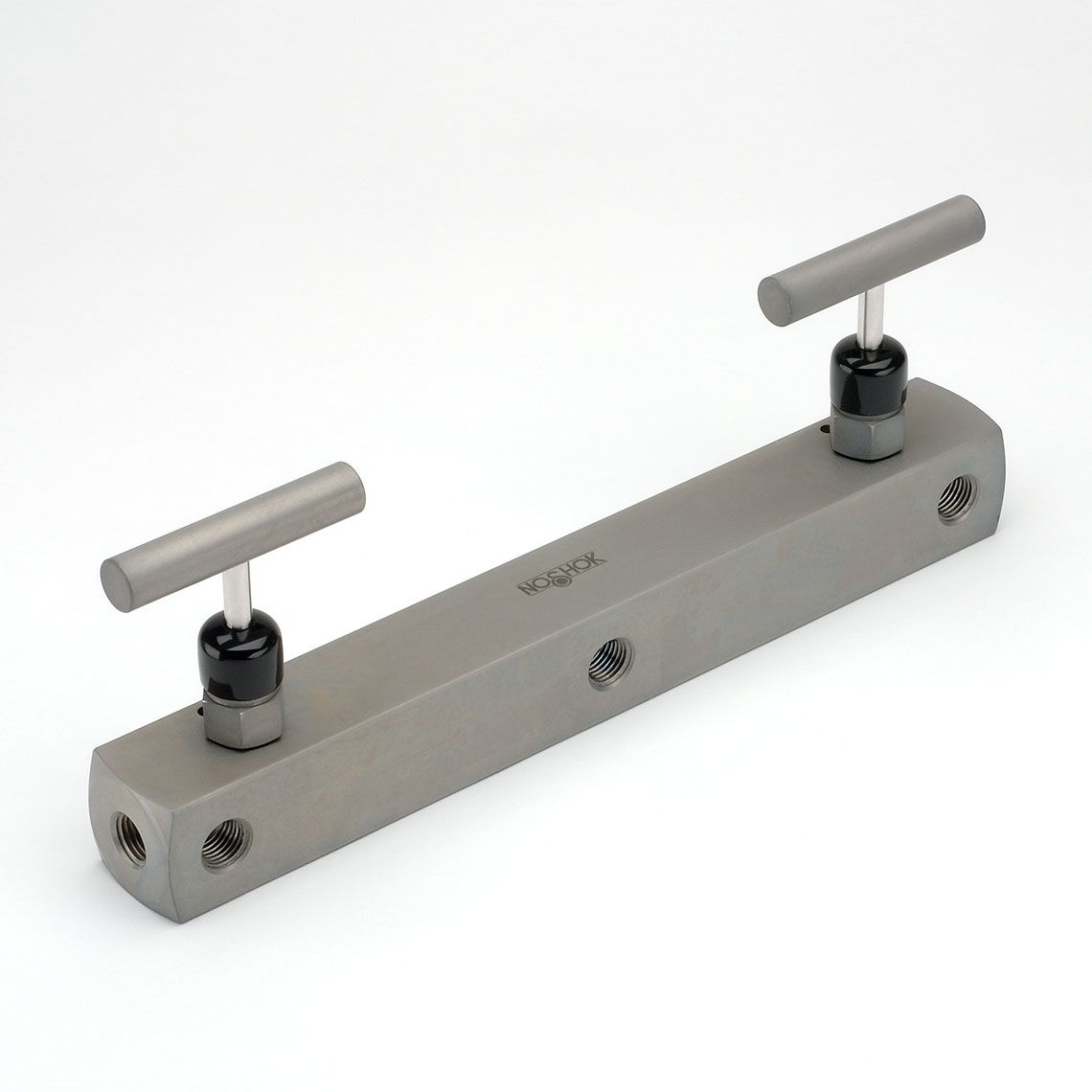

Noshok 2180-FFC 1/4 female -1/4 female SOFT SEAT -2 VALVE METER SS MANIFOLD Valve
- Designed for use with orifice meters
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance
and reliability - 6,000 psi pressure rating @ 200 °F
- Replaceable Delrin® seat and straight through porting for bidirectional,
high capacity flow and easy roddable cleaning - Blow-out proof stem provides a secondary stem seal in the full
open position - FKM o-ring seal and PTFE back-up ring below the stem threads to protect
from corrosion and galling; PTFE packing optional - All stems are 316 stainless steel
- All stem threads are rolled for strength and ease of operation
- One-piece bonnet with a metal-to-metal seal to the valve body below
the bonnet threads - Slotted spring pin to prevent accidental loosening
- Vinyl dust caps for bonnets and stems (non-packing)
ORDERING INFORMATION
| SERIES | 2 | 2-valve | ||||
| SEAT | 1 | Soft seat | ||||
| PROCESS TYPE | 8 | Meter manifold | ||||
| CONNECTION | 0 | 1/4″ NPT | ||||
| VALVE TYPE | FFC | Female-Female, Steel | FFS | Female-Female, Stainless Steel |
Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
To meet all of your specific application requirements, the following additional options are available for these manifold valves. To order all or any of these options, simply add them to the part number as shown in the diagram below.
NOTE 1: The example shown includes ALL possible additional options. Please include ONLY the options required for your application when building your part number. (EXAMPLE: 2180-FFC-P1)
NOTE 2: When a packing option is selected, an o-ring option is NOT available.
NOTE 3: The standard o-ring in all the NOSHOK manifold valves is FKM.
ORDERING INFORMATION – Additional Options
| PACKINGS | P1 | PTFE | ||||||
| STEM TIPS | T1 | Non-rotating (316 stainless) | ||||||
| O-RINGS* | EM1 | EPDM | KZ1 | FFKM (Kalrez® 3018 or equivalent) | NB1 | NBR | ||
| HANDLES | HL3 | 1″ Round knurled | HL4 | 1-3/8″ Phenolic | HL5 | 1-3/4″ Phenolic |
Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
* Other o-ring materials available on request.
Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are “T” handles (HL2).
The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 2180-FFC
will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special
application requests.
