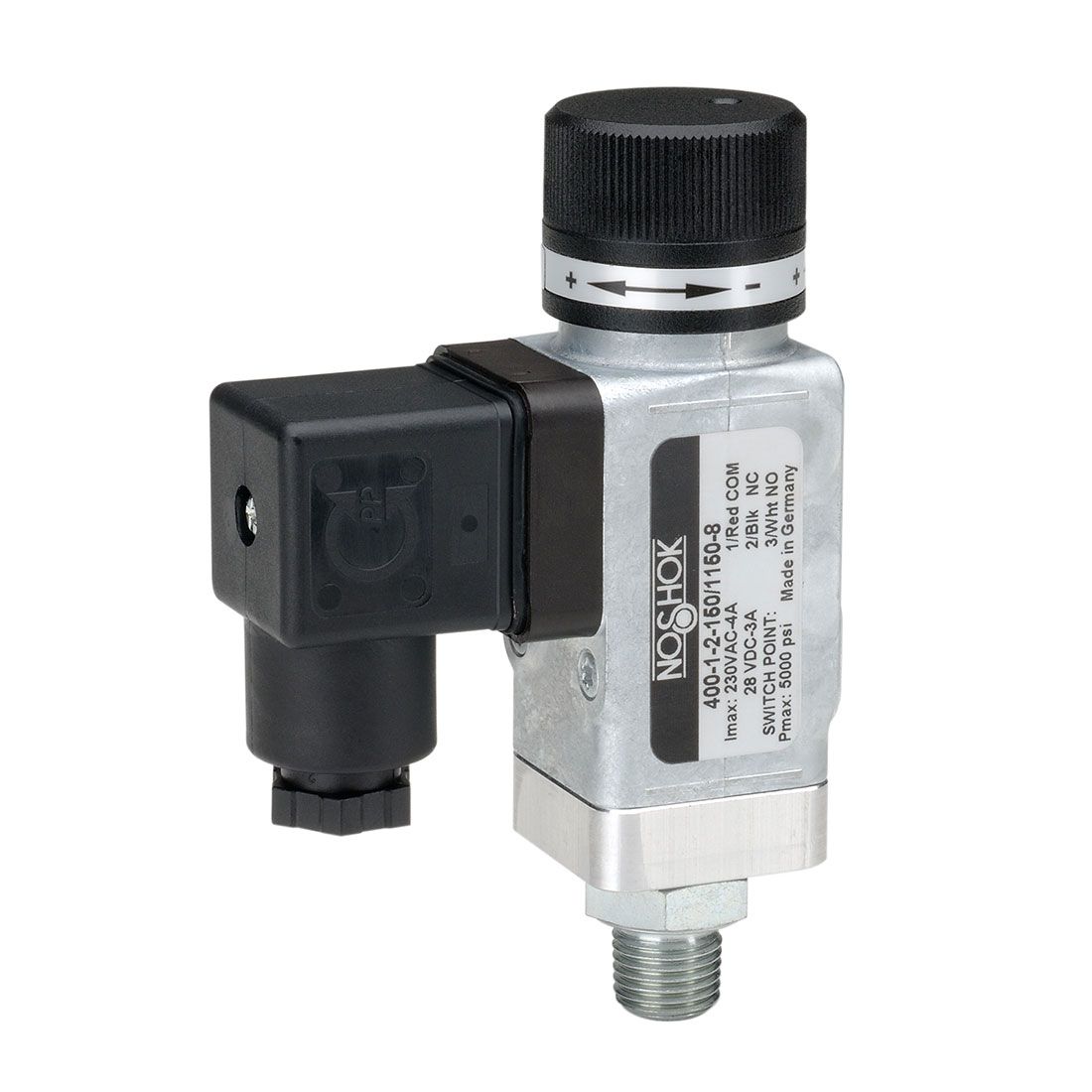

NOSHOK 400H-3-2-300/3600-8 Mechanical Block Switch 1/4 NPT Male Hirschmann Conn
List Price Original price was: $170.25.$135.60Current price is: $135.60.
8 in stock
NOSHOK 400H-3-2-300/3600-8 Mechanical Block Switch 1/4 NPT Male Hirschmann Conn
noshok Mechanical Heavy-Duty SPDT PRESSURE Switch- 400 series
Mechanical Pressure Switch, 1 SPDT Switch, 1/4 NPT Male, 300 psig to 3600 psig Adjustment, Hirschmann
* Available in adjustment ranges to 225 psig
† Other electrical connections available, consult factory
Options & Accessories
| SERIES | 400V | 400 Vacuum Series | 400H | 400 High Pressure Series | |
| 400L | 400 Low Pressure Series | ||||
| SWITCH FUNCTION | 3 | Single Pole Double Throw (SPDT) | |||
| PROCESS CONNECTION | 2 | 1/4″ NPT male | 19 | G 1/4 B female | |
| 5 | 1/4″ NPT female | 45 | 7/16-20 SAE Male, Non-Adjustable | ||
| 10 | G 1/4B | ||||
| 400V VACUUM PRESSURE SWITCH ADJUSTMENT RANGES (Max. working pressure) | 5/25-vac | -5 inHg to -25 inHg (350 psig) | |||
| 400L LOW PRESSURE SWITCH ADJUSTMENT RANGES (Max. working pressure) | 3/30 | 3 psig to 30 psig (870 psig) | 15/230 | 15 psig to 230 psig (870 psig) | |
| 7/120 | 7 psig to 120 psig (870 psig) | ||||
| 400H HIGH PRESSURE SWITCH ADJUSTMENT RANGES (Max. working pressure) | 145/435 | 145 psig to 435 psig (5,000 psig) | 300/2900 | 145 psig to 2,320 psig (5,000 psig) | |
| 145/1160 | 145 psig to 1,160 psig (5,000 psig) | 300/3600 | 300 psig to 2,900 psig (5,000 psig) | ||
| 145/1750 | 145 psig to 1,750 psig (5,000 psig) | 450/4600 | 300 psig to 3,600 psig (5,000 psig) | ||
| 145/2320 | 145 psig to 2,320 psig (5,000 psig) | ||||
| ELECTRICAL CONNECTIONS† | 1 | 36″ Cable attached to option 8 | 25 | M12 x 1 4-Pin* | |
| 8 | Hirschmann (DIN EN 175301-803 Form A) | 46 | Hirschmann with LED Status Indicator | ||
| OPTIONS *** | EP | EPDM Diaphragm (-40/212 °F) | VT | FKM Diaphragm (0/212 °F) | |
| HNBR | Low Temp NBR (-40/176 °F) |
Description
NOSHOK 400H-3-2-300/3600-8 Mechanical Block Switch 1/4 NPT Male Hirschmann Conn
noshok Mechanical Heavy-Duty SPDT PRESSURE Switch- 400 series
Mechanical Pressure Switch, 1 SPDT Switch, 1/4 NPT Male, 300 psig to 3600 psig Adjustment, Hirschmann
* Available in adjustment ranges to 225 psig
† Other electrical connections available, consult factory
Options & Accessories
| SERIES | 400V | 400 Vacuum Series | 400H | 400 High Pressure Series | |
| 400L | 400 Low Pressure Series | ||||
| SWITCH FUNCTION | 3 | Single Pole Double Throw (SPDT) | |||
| PROCESS CONNECTION | 2 | 1/4″ NPT male | 19 | G 1/4 B female | |
| 5 | 1/4″ NPT female | 45 | 7/16-20 SAE Male, Non-Adjustable | ||
| 10 | G 1/4B | ||||
| 400V VACUUM PRESSURE SWITCH ADJUSTMENT RANGES (Max. working pressure) | 5/25-vac | -5 inHg to -25 inHg (350 psig) | |||
| 400L LOW PRESSURE SWITCH ADJUSTMENT RANGES (Max. working pressure) | 3/30 | 3 psig to 30 psig (870 psig) | 15/230 | 15 psig to 230 psig (870 psig) | |
| 7/120 | 7 psig to 120 psig (870 psig) | ||||
| 400H HIGH PRESSURE SWITCH ADJUSTMENT RANGES (Max. working pressure) | 145/435 | 145 psig to 435 psig (5,000 psig) | 300/2900 | 145 psig to 2,320 psig (5,000 psig) | |
| 145/1160 | 145 psig to 1,160 psig (5,000 psig) | 300/3600 | 300 psig to 2,900 psig (5,000 psig) | ||
| 145/1750 | 145 psig to 1,750 psig (5,000 psig) | 450/4600 | 300 psig to 3,600 psig (5,000 psig) | ||
| 145/2320 | 145 psig to 2,320 psig (5,000 psig) | ||||
| ELECTRICAL CONNECTIONS† | 1 | 36″ Cable attached to option 8 | 25 | M12 x 1 4-Pin* | |
| 8 | Hirschmann (DIN EN 175301-803 Form A) | 46 | Hirschmann with LED Status Indicator | ||
| OPTIONS *** | EP | EPDM Diaphragm (-40/212 °F) | VT | FKM Diaphragm (0/212 °F) | |
| HNBR | Low Temp NBR (-40/176 °F) |
