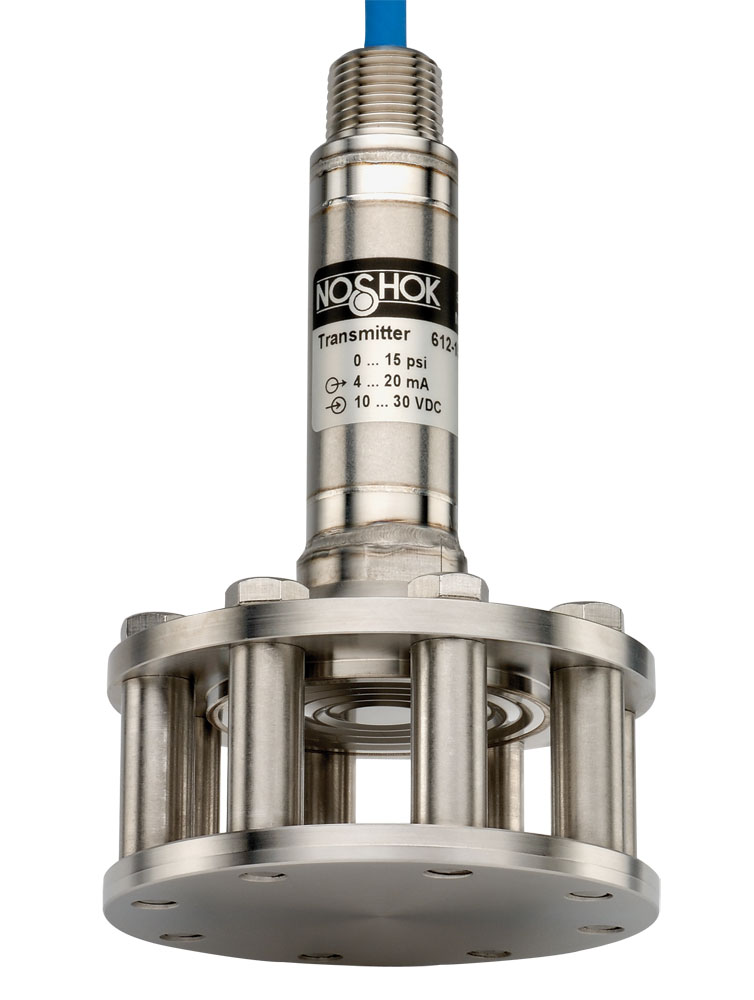

Noshok 613-50-1-1-50FT-JB Cage-Protected Submersible Level Transmitters
List Price Original price was: $2,249.95.$1,750.20Current price is: $1,750.20.
Available on backorder
Ranges from 0 psi to 5 psi through 0 psi to 300 psiCurrent & voltage outputs available316 stainless steel and polyurethane wetted partsCE compliant to suppress RFI, EMI and ESD
Cage Protected Submersible Transmitter, Wetted Materials: 316 SS, 0 psig to 50 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 50 ft PUR Cable, ,
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
| SERIES | 613 | |||||||
| PRESSURE RANGES | 5 | 0 psi to 5 psi (11.55 ft/H2O) | 20 | 0 psi to 20 psi (46.20 ft/H2O) | 75 | 0 psig to 75 psig (173.25 ftH2O) | 300 | 0 psig to 300 psig (693 ft/H2O) |
| 10 | 0 psi to 10 psi (23.10 ft/H2O) | 30 | 0 psi to 30 psi (69.30 ft/H2O) | 100 | 0 psig to 100 psig (231.00 ft/H2O) | |||
| 15 | 0 psi to 15 psi (34.65 ft/H2O) | 50 | 0 psig to 50 psig (115.5 ft/H2O) | 150 | 0 psig to 150 psig (346.50 ft/H2O) | |||
| ACCURACIES | 1 | ± 0.25% full scale (BFSL) | 2 | ± 0.125% full scale (BFSL) | ||||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 5 | 0 Vdc to 10 Vdc, 3-wire | ||||
| 2 | 0 Vdc to 5 Vdc, 3-wire | 11 | 0.5 Vdc to 2.5 Vdc, 3-wire | |||||
| ELECTRICAL CONNECTIONS |
XX | Standard polyurethane (PUR) cable | 38-XX | FEP cable | ||||
| NOTE: XX = length of cable in feet | ||||||||
| OPTIONS | CBC | Cable Clamp | FE | Filter Element | LP | Lightning Protection* | PT1 | PT100RTD* |
| DC | Desiccant Cartridge | JB | Cable Junction Box | LR | Lifting Ring | |||
* Only available with PUR cable
Description
Ranges from 0 psi to 5 psi through 0 psi to 300 psiCurrent & voltage outputs available316 stainless steel and polyurethane wetted partsCE compliant to suppress RFI, EMI and ESD
Cage Protected Submersible Transmitter, Wetted Materials: 316 SS, 0 psig to 50 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 50 ft PUR Cable, ,
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
| SERIES | 613 | |||||||
| PRESSURE RANGES | 5 | 0 psi to 5 psi (11.55 ft/H2O) | 20 | 0 psi to 20 psi (46.20 ft/H2O) | 75 | 0 psig to 75 psig (173.25 ftH2O) | 300 | 0 psig to 300 psig (693 ft/H2O) |
| 10 | 0 psi to 10 psi (23.10 ft/H2O) | 30 | 0 psi to 30 psi (69.30 ft/H2O) | 100 | 0 psig to 100 psig (231.00 ft/H2O) | |||
| 15 | 0 psi to 15 psi (34.65 ft/H2O) | 50 | 0 psig to 50 psig (115.5 ft/H2O) | 150 | 0 psig to 150 psig (346.50 ft/H2O) | |||
| ACCURACIES | 1 | ± 0.25% full scale (BFSL) | 2 | ± 0.125% full scale (BFSL) | ||||
| OUTPUT SIGNALS | 1 | 4 mA to 20 mA, 2-wire | 5 | 0 Vdc to 10 Vdc, 3-wire | ||||
| 2 | 0 Vdc to 5 Vdc, 3-wire | 11 | 0.5 Vdc to 2.5 Vdc, 3-wire | |||||
| ELECTRICAL CONNECTIONS |
XX | Standard polyurethane (PUR) cable | 38-XX | FEP cable | ||||
| NOTE: XX = length of cable in feet | ||||||||
| OPTIONS | CBC | Cable Clamp | FE | Filter Element | LP | Lightning Protection* | PT1 | PT100RTD* |
| DC | Desiccant Cartridge | JB | Cable Junction Box | LR | Lifting Ring | |||
* Only available with PUR cable
