High Accuracy Fixed Range Pressure Transmitter, 0 to 60 psi gauge, ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions, 4 mA to 20 mA, 2-wire, 1/4 NPT male, DIN form
NOSHOK 200-3000-1-2-2-25-ST8 Voltage Output Pressure Transducer-NEW PART NUMBER PT40-3000psig-1-2-2-25-ST8 List Price Original price was: $564.21.Current price is: $449.52.
Back to products
Noshok 700 Series Block and Bleed Soft Seat Needle Valves
Noshok 700 Series Block and Bleed Soft Seat Needle Valves List Price Original price was: $302.15.Current price is: $78.95.
-20%
High Accuracy Fixed Range Pressure Transmitter, 0 to 150 psi gauge, ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions, 4 mA to 20 mA, 2-wire, 1/4 NPT male, M12 x 1 4 pin, Certified Calibration
Noshok PT40-15psig-1-1-8-16 Replaces the 615-15-1-1-8-6 Pressure Transmitter 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 1/2 NPT Male, 1/2 NPT Conduit w/ 36 in Cable Attached - Image 2
Click to enlarge
High Accuracy Fixed Range Pressure Transmitter, 0 to 150 psi gauge, ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions, 4 mA to 20 mA, 2-wire, 1/4 NPT male, M12 x 1 4 pin, Certified Calibration
Noshok PT40-15psig-1-1-8-16 Replaces the 615-15-1-1-8-6 Pressure Transmitter 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 1/2 NPT Male, 1/2 NPT Conduit w/ 36 in Cable Attached - Image 2

Noshok PT40-15psig-1-1-8-16 Replaces the 615-15-1-1-8-6 Pressure Transmitter 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 1/2 NPT Male, 1/2 NPT Conduit w/ 36 in Cable Attached

SKU: PT40-15psig-1-1-8-16----615-15-1-1-8-6

List Price Original price was: $550.25.Current price is: $439.60.

2 in stock (can be backordered)

PRICES NOW REFLECT IEEPA/Other Tariff Surcharges-
PT40 AND 30 SERIES is REPLACING THE 100,200 AND 615 SERIES
NEW 2026 PRICES
Add to wishlist
Compare

Pressure Transmitter, 0 psig to 15 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 1/2 NPT Male, 1/2 NPT Conduit w/ 36 in Cable Attached

PT40-15psig-1-1-8-16

  • PT40 Series High Accuracy Fixed Range Pressure Transmitter
  • 0 to 15 psi gauge
  • ±0.25% full scale non-linearity best fit straight line per IEC 61298-2 at reference conditions
  • 4 mA to 20 mA, 2-wire
  • 1/2 NPT male

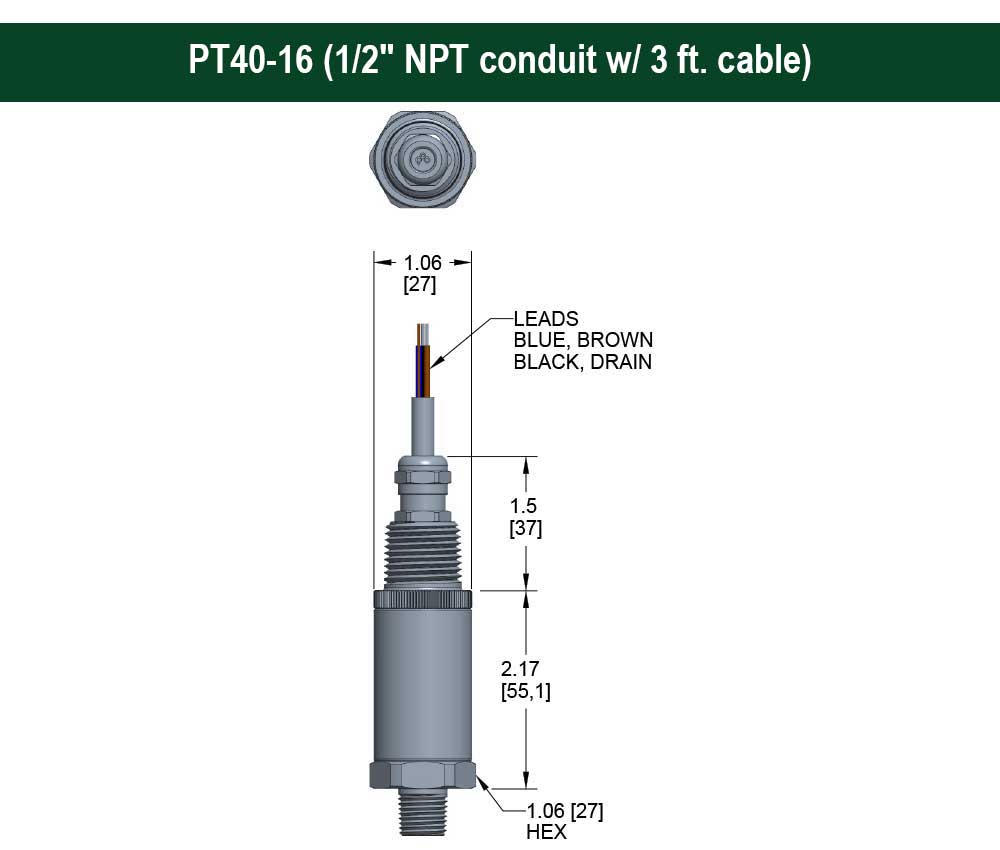

  • 1/2 NPT Conduit, paired with the Cable Grip, and 3 ft of Cable

Reviews

There are no reviews yet.

Be the first to review “Noshok PT40-15psig-1-1-8-16 Replaces the 615-15-1-1-8-6 Pressure Transmitter 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 1/2 NPT Male, 1/2 NPT Conduit w/ 36 in Cable Attached”

Your email address will not be published. Required fields are marked *

Description

Pressure Transmitter, 0 psig to 15 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 1/2 NPT Male, 1/2 NPT Conduit w/ 36 in Cable Attached

PT40-15psig-1-1-8-16

  • PT40 Series High Accuracy Fixed Range Pressure Transmitter
  • 0 to 15 psi gauge
  • ±0.25% full scale non-linearity best fit straight line per IEC 61298-2 at reference conditions
  • 4 mA to 20 mA, 2-wire
  • 1/2 NPT male
  • 1/2 NPT Conduit, paired with the Cable Grip, and 3 ft of Cable
