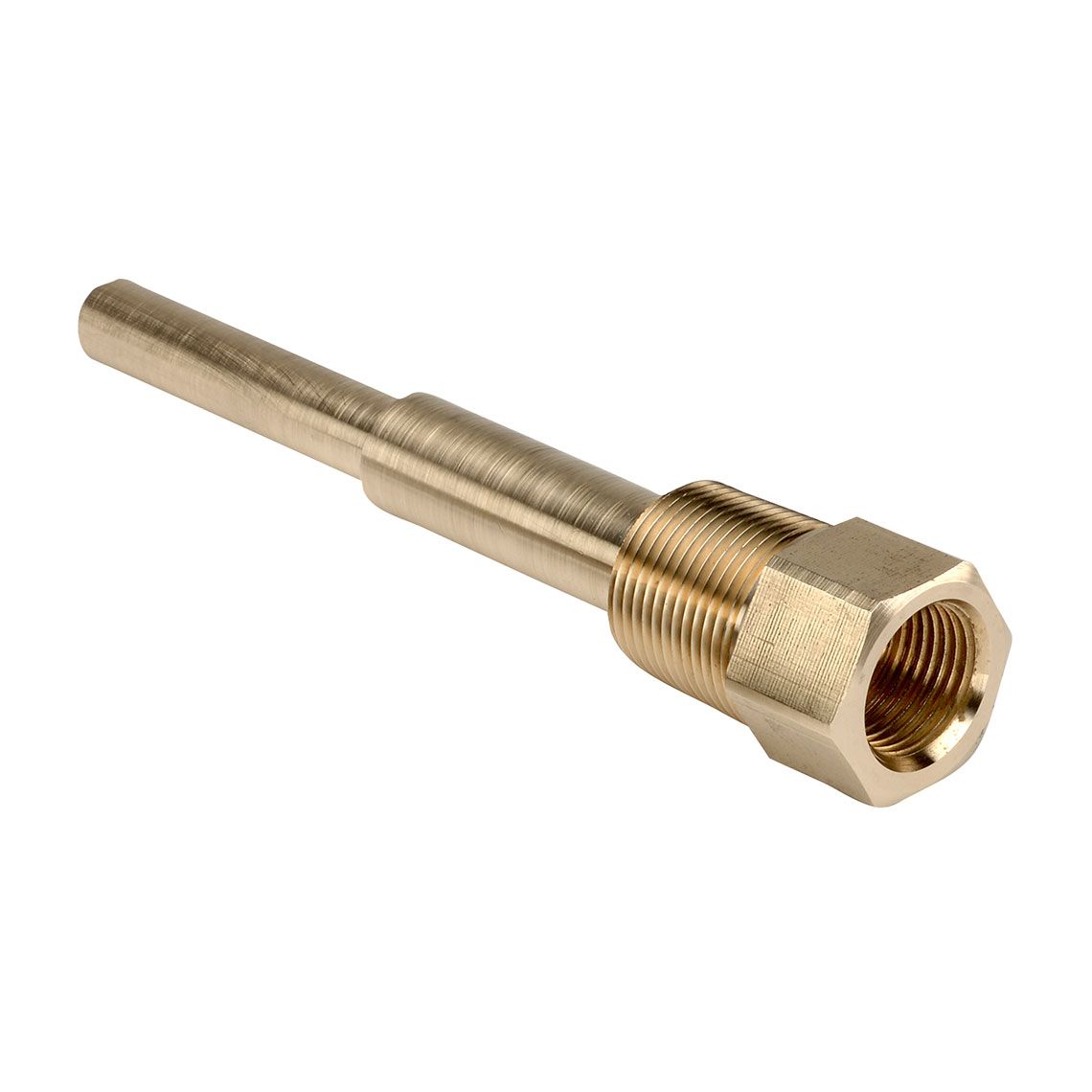

Noshok 75-120-BRASS 3/4 NPT Process Conn Stepped Shank Thermowell

Part Number: 75-120-BRASS

Date modified: Apr 17, 2023

Online Prices

NOSHOK List price: Original price was: $343.24.Current price is: $250.20.

Warranty: 3 YR
Add to wishlist
Compare

Noshok 75-120-BRASS Stepped Shank Thermowell 3/4 NPT Process Conn

Thermowells

Application Brochures
Oil & Gas

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

PROCESS CONNECTIONS 50 1/2″ NPT only 100 1″ NPT or Flange Connection* 200 2″ Flange Connection*
75 3/4″ NPT only 150 1-1/2″ Flange Connection*
STEM LENGTHS 025 2-1/2″ ** 150 15″ 100mm 100 mm
040 4″ ** 180 18″ 150mm 150 mm
060 6″ 240 24″ 250mm 250 mm
090 9″ 25mm 25 mm 350mm 350 mm
120 12″ 50mm 50 mm
MATERIALS BRASS Brass 304SS 304 Stainless steel 316SS 316 Stainless steel
  Other materials available on request
OPTIONS 1/4 1/4″ NPT Instrument Connection PC Plug and Chain RF2 Raised Face 300 Class Flange
3/8B 3/8″ Diameter Bore RF1 Raised Face 150 Class Flange RTD For use with 900/910 Series RTDs

* To order a Flange Connection, you must specify Option RF1 or RF2. Flange Connections available only in Stainless steel.
** Flange Connection not available.



Options & Accessories

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects
